74HC138D

74HC138D Overview

This product is manufactured by NXP. Decoders / Demultiplexers The product uses the 74HC logic family. Number of bits: 3 bit The propagation delay time is 12 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOT-109 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Decoder/Demultiplexer The height of the product is 1.45 mm. 10 mm long This product has 1 Circuit circuit. Output current: +/- 25 mA Output Voltage is 5.81 V NXP Semiconductors is a trusted brand for quality electronics Decoder/Demultiplexer. Maximum supply current: 0.008 mA This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 5.2 mA 2 V to 6 V operating supply voltage range 500 mW (1/2 W) Encoders, Decoders, Multiplexers & Demultiplexers product type 50 of 100 Logic ICs as subcategory This product is also known by the 74HC138D,652 number of 934069005115.

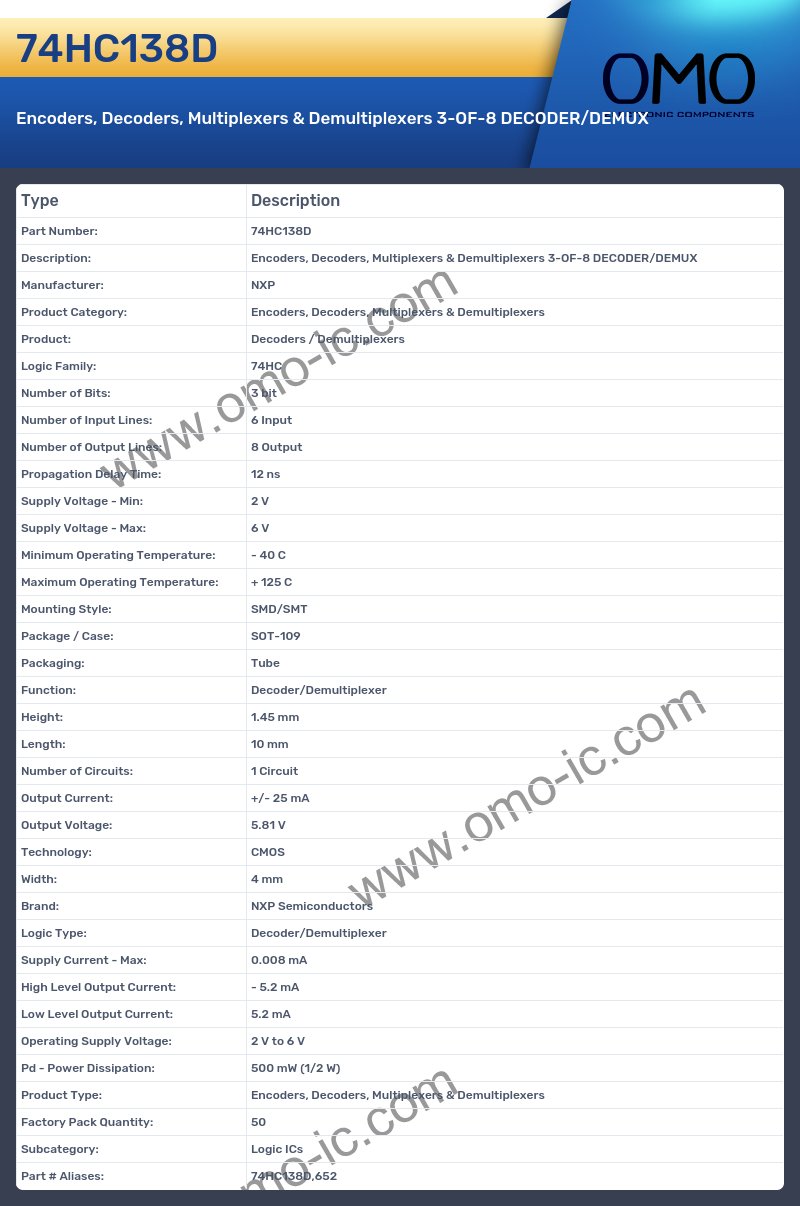

74HC138D Image

74HC138D Specifications

• Manufacturer: NXP
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• Product: Decoders / Demultiplexers
• Logic Family: 74HC
• Number of Bits: 3 bit
• Number of Input Lines: 6 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 12 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOT-109
• Packaging: Tube
• Function: Decoder/Demultiplexer
• Height: 1.45 mm
• Length: 10 mm
• Number of Circuits: 1 Circuit
• Output Current: +/- 25 mA
• Output Voltage: 5.81 V
• Technology: CMOS
• Width: 4 mm
• Brand: NXP Semiconductors
• Logic Type: Decoder/Demultiplexer
• Supply Current - Max: 0.008 mA
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Operating Supply Voltage: 2 V to 6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 50
• Subcategory: Logic ICs
• Part # Aliases: 74HC138D,652
