74LX1GU04CTR Overview

Product belongs to the 74LX series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-323-5 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SOT-323-5 1 is 8. 10μA maximum quiescent current. Inverter logic type - is a Logic-Level-Low; - is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V 74LX logic type High-Level-Output-Current of - 32 mA 32 mA low-level output current

74LX1GU04CTR Image

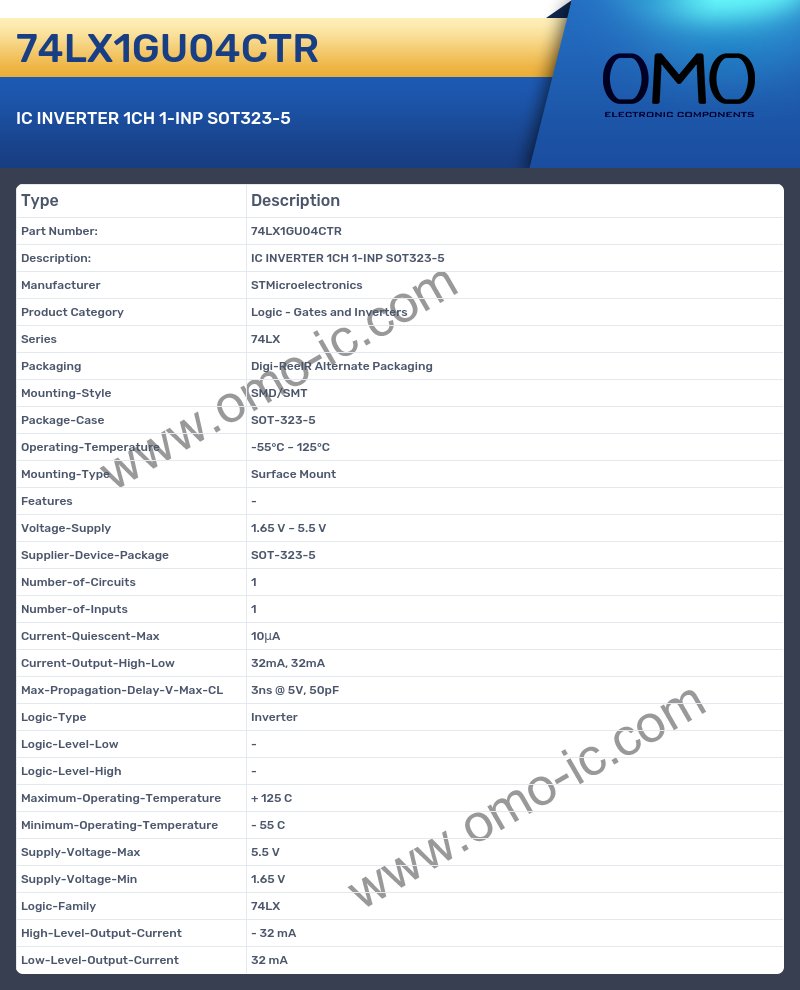

74LX1GU04CTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74LX
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-323-5
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 1.65 V ~ 5.5 V
• Supplier-Device-Package SOT-323-5
• Number-of-Circuits 1
• Number-of-Inputs 1
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 32mA, 32mA
• Max-Propagation-Delay-V-Max-CL 3ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low -
• Logic-Level-High -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LX
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
