AD7266BSUZ-REEL7

AD7266BSUZ-REEL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TQFP-32 package/case type is utilized by this product. This product is equipped with 6 Channel for efficient performance. The sampling rate of this product is 2 MS/s. Differential/Pseudo-Differential/Single-Ended input type Interface Type: Microwire, QSPI, SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 1 mm. 2.5 V/5 V Input Voltage 7 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7266EDZ is a versatile development platform for hardware and software The - 0.99 LSB/1.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2.5 LSB is 0.2%. INL is within +/- 1.5 LSB Yes regarding Moisture Sensitivity 2.7 V to 5.25 V operating supply voltage range 33.6 mW ADCs - Analog to Digital Converters product type 500 of 100 Data Converter ICs as subcategory 1. 0.002568 oz of Unit Weight

AD7266BSUZ-REEL7 Image

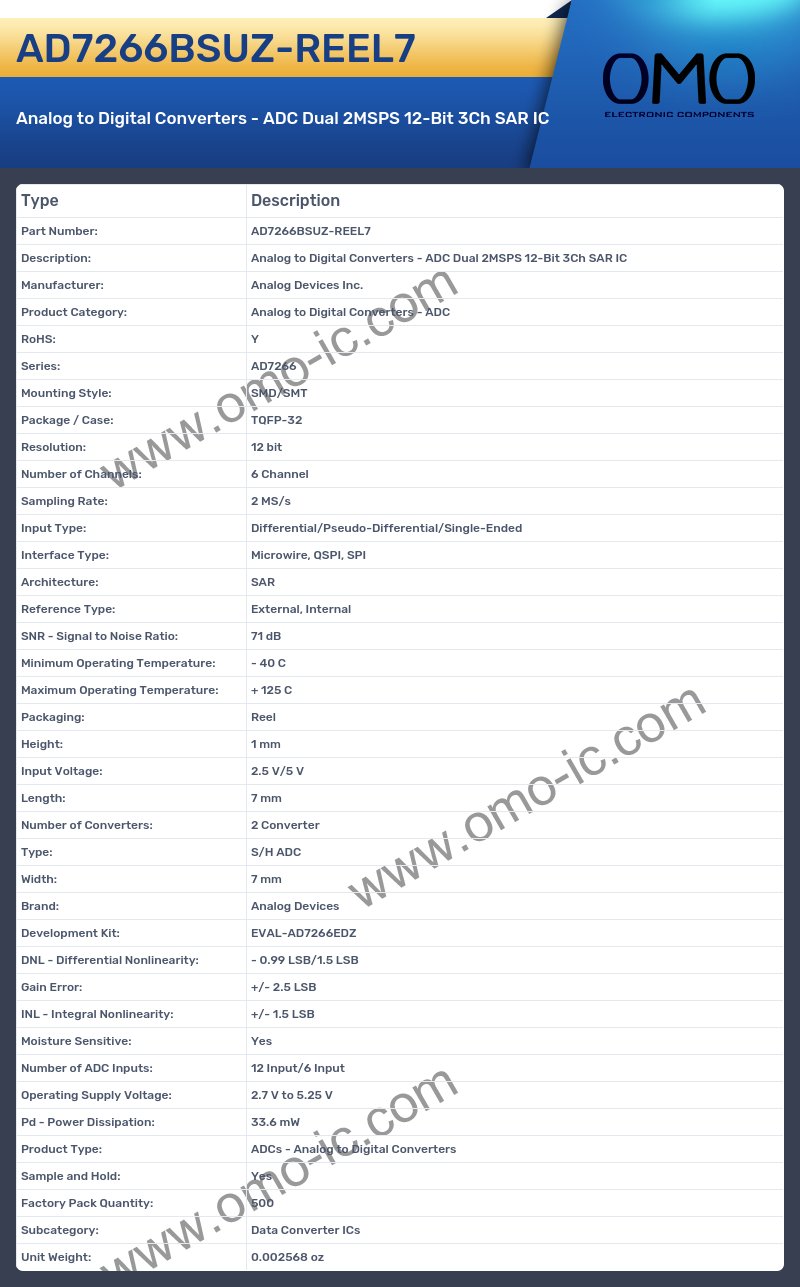

AD7266BSUZ-REEL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7266
• Mounting Style: SMD/SMT
• Package / Case: TQFP-32
• Resolution: 12 bit
• Number of Channels: 6 Channel
• Sampling Rate: 2 MS/s
• Input Type: Differential/Pseudo-Differential/Single-Ended
• Interface Type: Microwire, QSPI, SPI
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 71 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Height: 1 mm
• Input Voltage: 2.5 V/5 V
• Length: 7 mm
• Number of Converters: 2 Converter
• Type: S/H ADC
• Width: 7 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7266EDZ
• DNL - Differential Nonlinearity: - 0.99 LSB/1.5 LSB
• Gain Error: +/- 2.5 LSB
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 12 Input/6 Input
• Operating Supply Voltage: 2.7 V to 5.25 V
• Pd - Power Dissipation: 33.6 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 500
• Subcategory: Data Converter ICs
• Unit Weight: 0.002568 oz
