AD7276BRMZ-REEL

AD7276BRMZ-REEL Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. MSOP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 3 MS/s. Single-Ended input type Interface Type: Microwire, QSPI, SPI SAR architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 0.85 mm. 3 V Input Voltage 3 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7276SDZ is a versatile development platform for hardware and software The - 0.99 LSB/1.2 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 3.5 LSB is 0.2%. INL is within +/- 1 LSB 3.3 V operating supply voltage range 19.8 mW ADCs - Analog to Digital Converters product type 3000 of 100 Data Converter ICs as subcategory 1. 0.004938 oz of Unit Weight

AD7276BRMZ-REEL Image

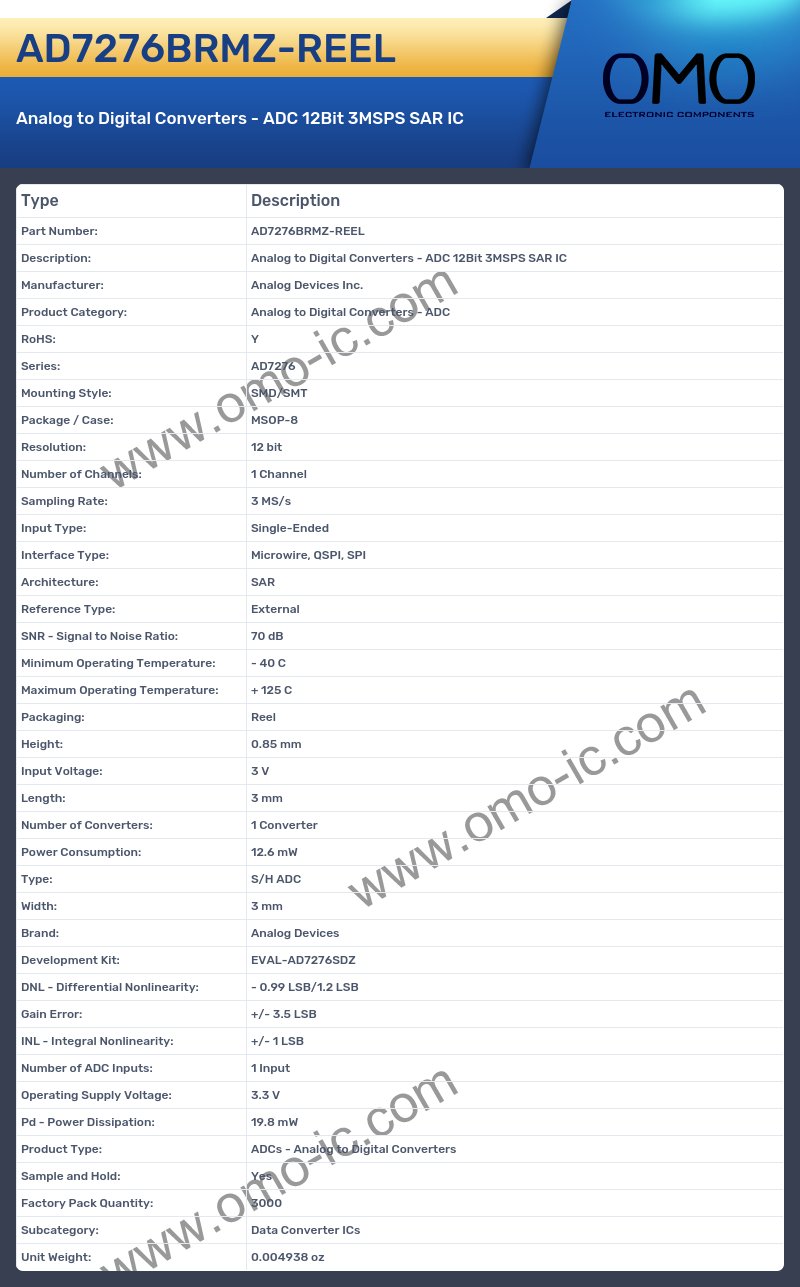

AD7276BRMZ-REEL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7276
• Mounting Style: SMD/SMT
• Package / Case: MSOP-8
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 3 MS/s
• Input Type: Single-Ended
• Interface Type: Microwire, QSPI, SPI
• Architecture: SAR
• Reference Type: External
• SNR - Signal to Noise Ratio: 70 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Height: 0.85 mm
• Input Voltage: 3 V
• Length: 3 mm
• Number of Converters: 1 Converter
• Power Consumption: 12.6 mW
• Type: S/H ADC
• Width: 3 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7276SDZ
• DNL - Differential Nonlinearity: - 0.99 LSB/1.2 LSB
• Gain Error: +/- 3.5 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 19.8 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 3000
• Subcategory: Data Converter ICs
• Unit Weight: 0.004938 oz
