AD744JNZ

AD744JNZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 88 dB of 50 dB, ensuring reliable signal acquisition. This product has an 100 pA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Voltage Feedback Amplifier. The height of the product is 3.3 mm. 9.27 mm long Precision Amplifiers Supply Type: Dual This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics The 0.01 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 500 mW (1/2 W) Precision Amplifiers product type This product has a 95 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

AD744JNZ Image

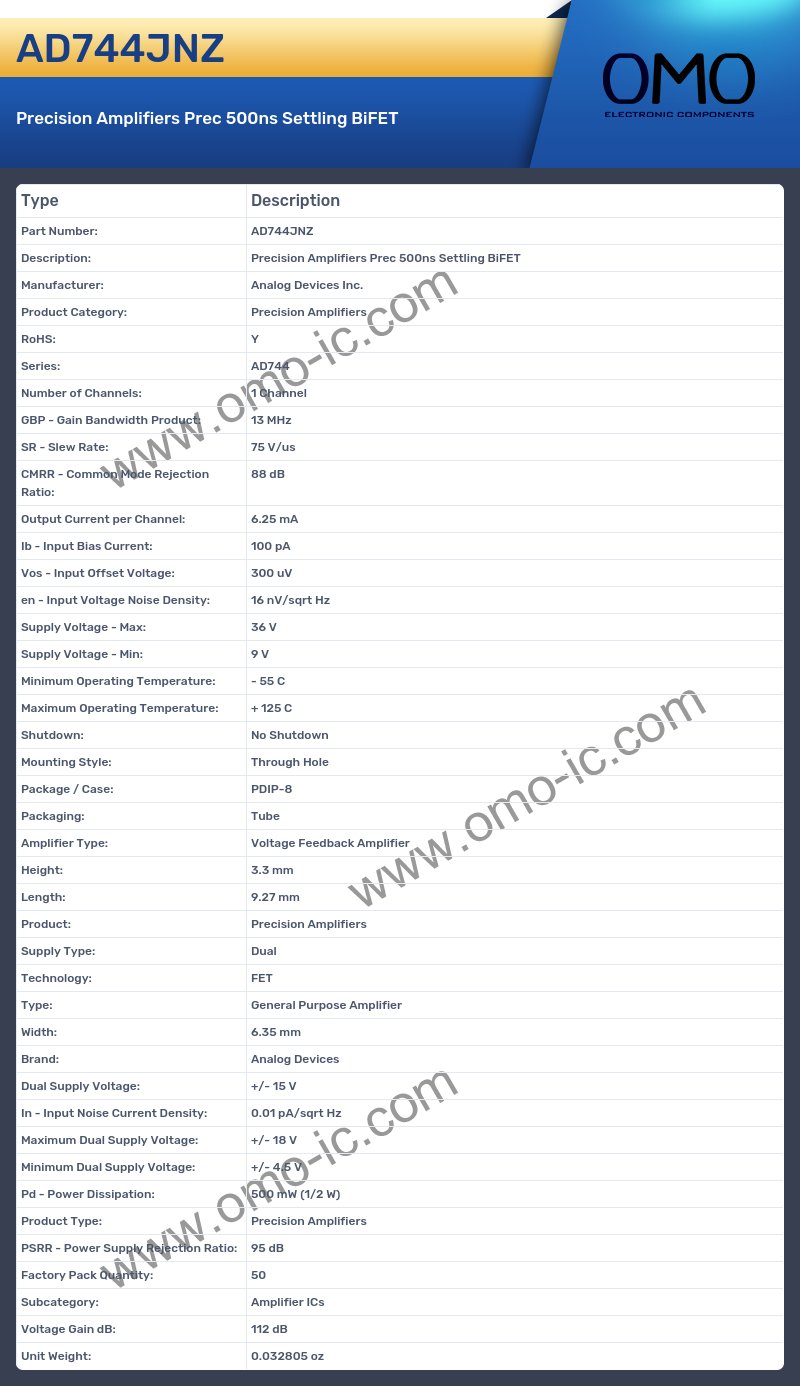

AD744JNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: AD744
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 13 MHz
• SR - Slew Rate: 75 V/us
• CMRR - Common Mode Rejection Ratio: 88 dB
• Output Current per Channel: 6.25 mA
• Ib - Input Bias Current: 100 pA
• Vos - Input Offset Voltage: 300 uV
• en - Input Voltage Noise Density: 16 nV/sqrt Hz
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Voltage Feedback Amplifier
• Height: 3.3 mm
• Length: 9.27 mm
• Product: Precision Amplifiers
• Supply Type: Dual
• Technology: FET
• Type: General Purpose Amplifier
• Width: 6.35 mm
• Brand: Analog Devices
• Dual Supply Voltage: +/- 15 V
• In - Input Noise Current Density: 0.01 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 95 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 112 dB
• Unit Weight: 0.032805 oz

AD744JNZ FAQ

• A: What is the Manufacturer of the product?

  Q: The Manufacturer of the product is Analog Devices Inc..

• A: What is the Number of Channels of the product?

  Q: The Number of Channels of the product is 1 Channel.

• A: What is the CMRR - Common Mode Rejection Ratio of the product?

  Q: The CMRR - Common Mode Rejection Ratio of the product is 88 dB.

• A: At what frequency does the Ib - Input Bias Current?

  Q: The product Ib - Input Bias Current is 100 pA.

• A: What is the Supply Voltage - Max of the product?

  Q: The Supply Voltage - Max of the product is 36 V.

• A: Is the cutoff frequency of the product Supply Voltage - Min?

  Q: Yes, the product's Supply Voltage - Min is indeed 9 V

• A: At what frequency does the Minimum Operating Temperature?

  Q: The product Minimum Operating Temperature is - 55 C.

• A: At what frequency does the Maximum Operating Temperature?

  Q: The product Maximum Operating Temperature is + 125 C.

• A: At what frequency does the Shutdown?

  Q: The product Shutdown is No Shutdown.

• A: At what frequency does the Mounting Style?

  Q: The product Mounting Style is Through Hole.

• A: What is the Package / Case of the product?

  Q: The Package / Case of the product is PDIP-8.

• A: Is the cutoff frequency of the product Packaging?

  Q: Yes, the product's Packaging is indeed Tube

• A: At what frequency does the Amplifier Type?

  Q: The product Amplifier Type is Voltage Feedback Amplifier.

• A: Is the cutoff frequency of the product Height?

  Q: Yes, the product's Height is indeed 3.3 mm

• A: What is the Length of the product?

  Q: The Length of the product is 9.27 mm.

• A: At what frequency does the Product?

  Q: The product Product is Precision Amplifiers.

• A: Is the cutoff frequency of the product Supply Type?

  Q: Yes, the product's Supply Type is indeed Dual

• A: Is the cutoff frequency of the product Type?

  Q: Yes, the product's Type is indeed General Purpose Amplifier

• A: Is the cutoff frequency of the product Brand?

  Q: Yes, the product's Brand is indeed Analog Devices

• A: At what frequency does the In - Input Noise Current Density?

  Q: The product In - Input Noise Current Density is 0.01 pA/sqrt Hz.

• A: Is the cutoff frequency of the product Maximum Dual Supply Voltage?

  Q: Yes, the product's Maximum Dual Supply Voltage is indeed +/- 18 V

• A: What is the Minimum Dual Supply Voltage of the product?

  Q: The Minimum Dual Supply Voltage of the product is +/- 4.5 V.

• A: At what frequency does the Pd - Power Dissipation?

  Q: The product Pd - Power Dissipation is 500 mW (1/2 W).

• A: What is the Product Type of the product?

  Q: The Product Type of the product is Precision Amplifiers.

• A: Is the cutoff frequency of the product PSRR - Power Supply Rejection Ratio?

  Q: Yes, the product's PSRR - Power Supply Rejection Ratio is indeed 95 dB

• A: At what frequency does the Factory Pack Quantity?

  Q: The product Factory Pack Quantity is 50.

• A: What is the Subcategory of the product?

  Q: The Subcategory of the product is Amplifier ICs.

• A: At what frequency does the Unit Weight?

  Q: The product Unit Weight is 0.032805 oz.
