AD7609BSTZ

AD7609BSTZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LQFP-64 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Differential input type Interface Type: Parallel, SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1.4 mm. +/- 10 V/+/- 20 V Input Voltage 10 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7609EDZ is a versatile development platform for hardware and software The - 0.99 LSB/2 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 140 LSB is 0.2%. INL is within +/- 7.5 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 100 mW ADCs - Analog to Digital Converters product type 160 of 100 Data Converter ICs as subcategory 1. 0.012088 oz of Unit Weight

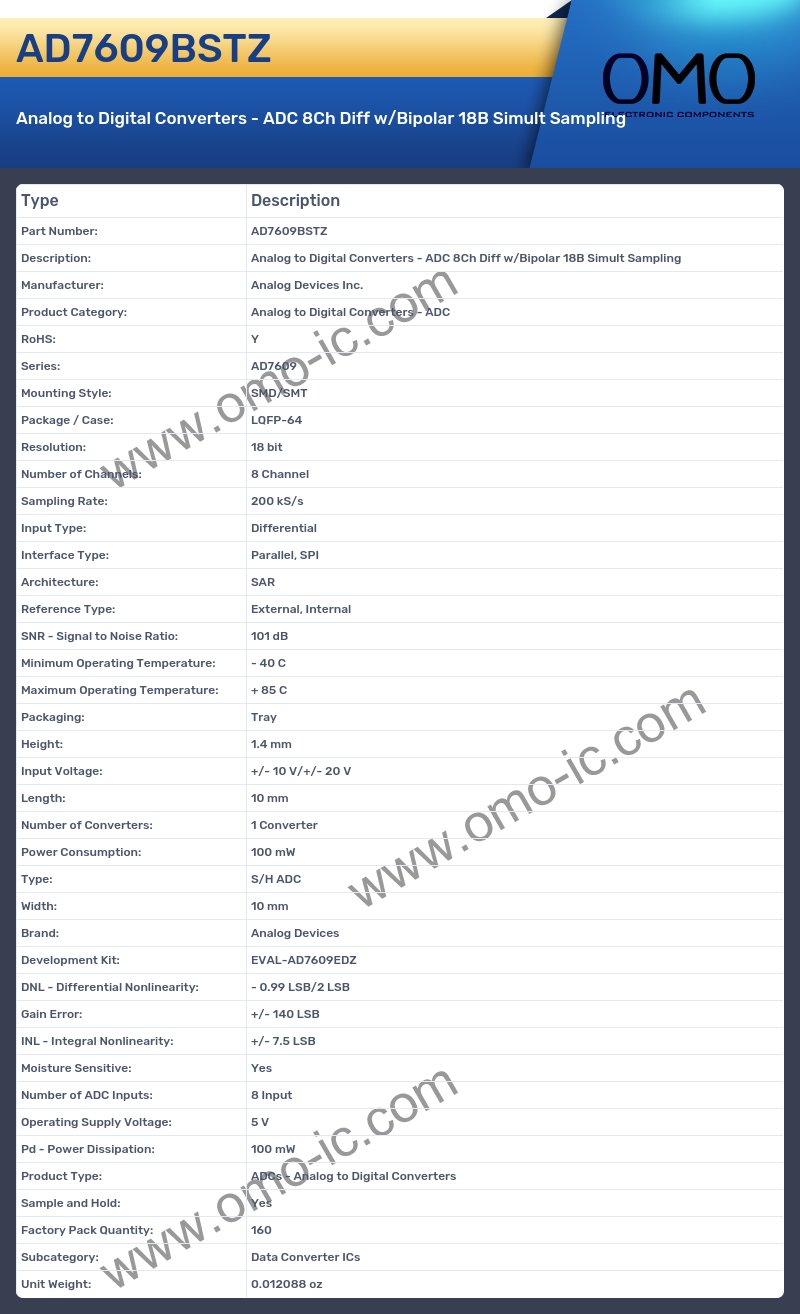

AD7609BSTZ Image

AD7609BSTZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7609
• Mounting Style: SMD/SMT
• Package / Case: LQFP-64
• Resolution: 18 bit
• Number of Channels: 8 Channel
• Sampling Rate: 200 kS/s
• Input Type: Differential
• Interface Type: Parallel, SPI
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 101 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 1.4 mm
• Input Voltage: +/- 10 V/+/- 20 V
• Length: 10 mm
• Number of Converters: 1 Converter
• Power Consumption: 100 mW
• Type: S/H ADC
• Width: 10 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7609EDZ
• DNL - Differential Nonlinearity: - 0.99 LSB/2 LSB
• Gain Error: +/- 140 LSB
• INL - Integral Nonlinearity: +/- 7.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 8 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 100 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Unit Weight: 0.012088 oz
