AD7643BSTZ

AD7643BSTZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LQFP-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1.25 MS/s. Differential input type Interface Type: I2C, Parallel, SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1.4 mm. +/- 2.5 V Input Voltage 7 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7643EDZ is a versatile development platform for hardware and software The - 1 LSB/1.25 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 22 LSB is 0.2%. INL is within +/- 3 LSB Yes regarding Moisture Sensitivity 2.5 V operating supply voltage range 80 mW ADCs - Analog to Digital Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.006409 oz of Unit Weight

AD7643BSTZ Image

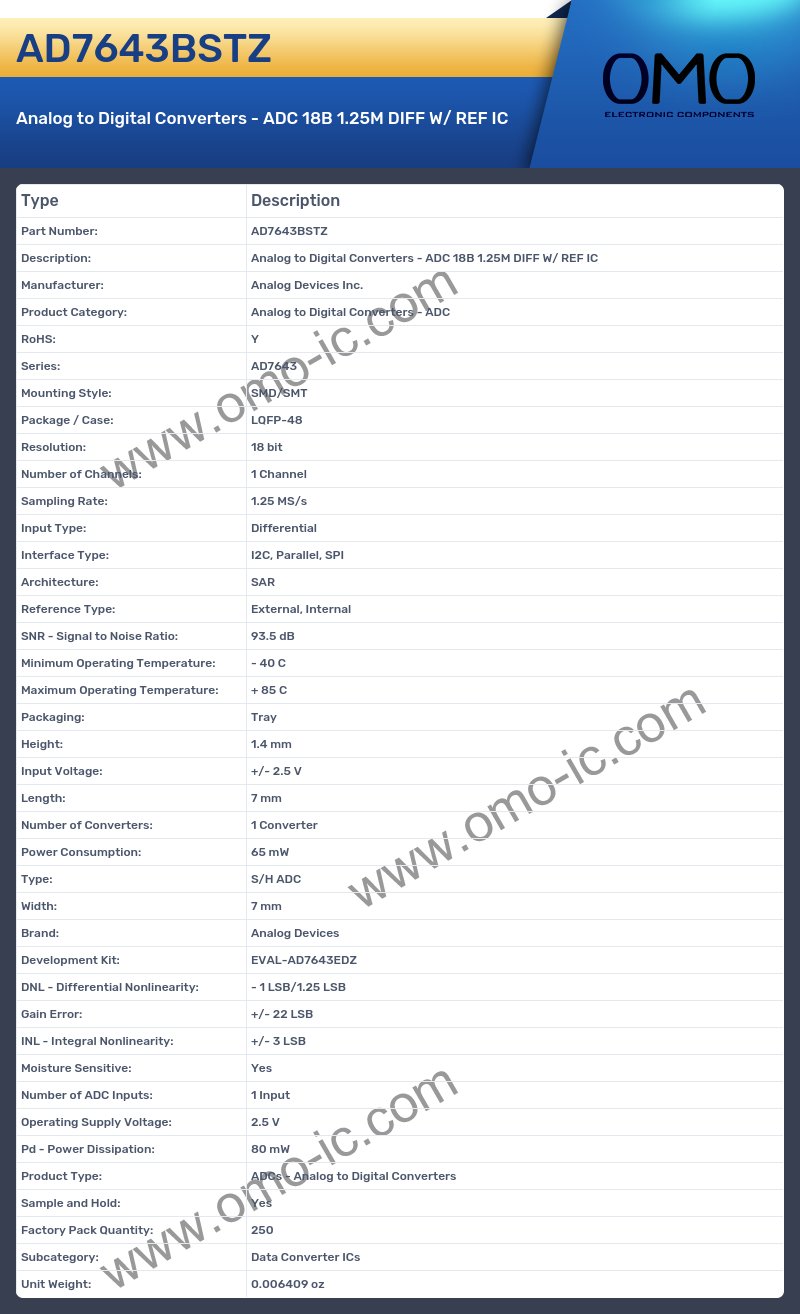

AD7643BSTZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7643
• Mounting Style: SMD/SMT
• Package / Case: LQFP-48
• Resolution: 18 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1.25 MS/s
• Input Type: Differential
• Interface Type: I2C, Parallel, SPI
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 93.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 1.4 mm
• Input Voltage: +/- 2.5 V
• Length: 7 mm
• Number of Converters: 1 Converter
• Power Consumption: 65 mW
• Type: S/H ADC
• Width: 7 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7643EDZ
• DNL - Differential Nonlinearity: - 1 LSB/1.25 LSB
• Gain Error: +/- 22 LSB
• INL - Integral Nonlinearity: +/- 3 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 2.5 V
• Pd - Power Dissipation: 80 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.006409 oz
