AD7863ARSZ-2

AD7863ARSZ-2 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 175 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.75 mm. 2.5 V Input Voltage 10.2 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The - 1 LSB/2 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 14 LSB is 0.2%. INL is within +/- 2.5 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 52.5 mW ADCs - Analog to Digital Converters product type 47 of 100 Data Converter ICs as subcategory 1. 0.025045 oz of Unit Weight

AD7863ARSZ-2 Image

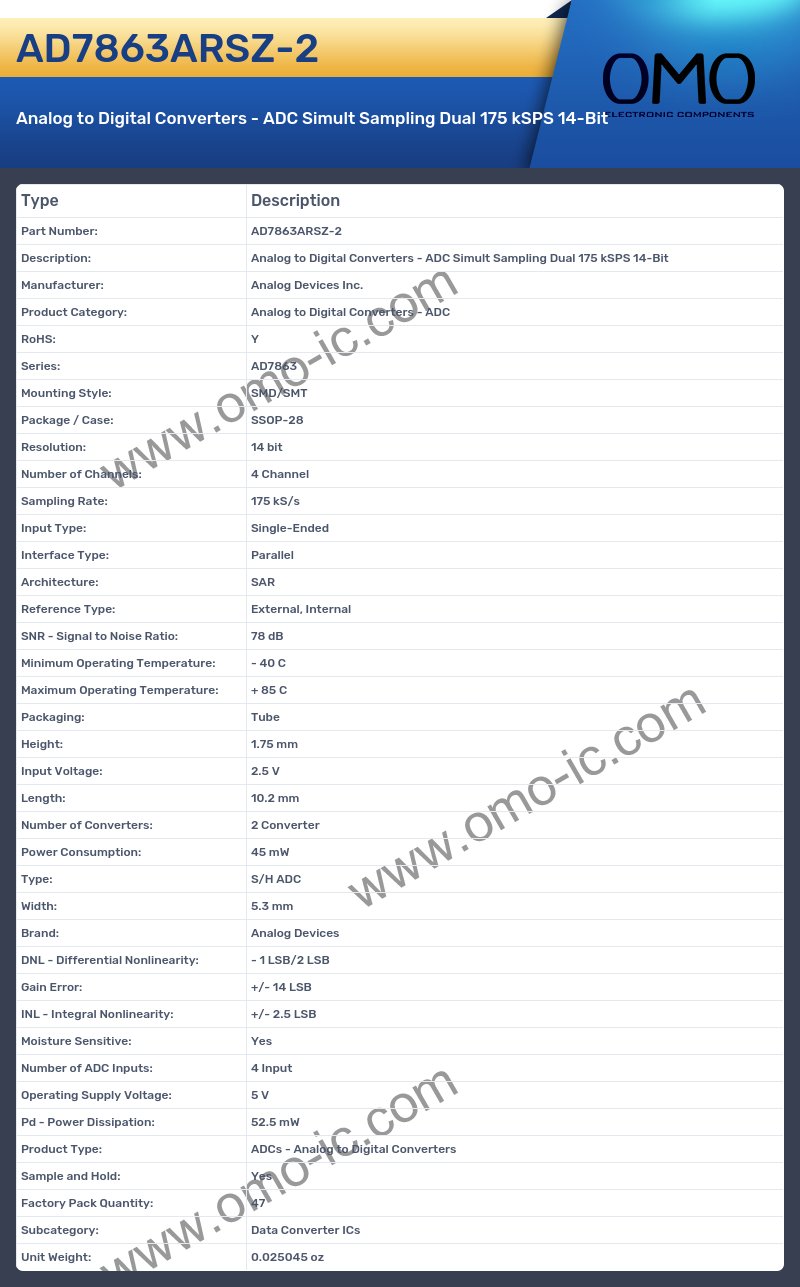

AD7863ARSZ-2 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7863
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Resolution: 14 bit
• Number of Channels: 4 Channel
• Sampling Rate: 175 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 78 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.75 mm
• Input Voltage: 2.5 V
• Length: 10.2 mm
• Number of Converters: 2 Converter
• Power Consumption: 45 mW
• Type: S/H ADC
• Width: 5.3 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: - 1 LSB/2 LSB
• Gain Error: +/- 14 LSB
• INL - Integral Nonlinearity: +/- 2.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 52.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 47
• Subcategory: Data Converter ICs
• Unit Weight: 0.025045 oz
