AD7890SQ-4

AD7890SQ-4 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-24 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 117 kS/s. Single-Ended input type Interface Type: Serial SAR architecture External, Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 3.56 mm. 4.096 V Input Voltage 32.51 mm long The output type is CMOS/TTL. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2.5 LSB is 0.2%. INL is within +/- 1 LSB 5 V operating supply voltage range 50 mW ADCs - Analog to Digital Converters product type 15 of 100 Data Converter ICs as subcategory

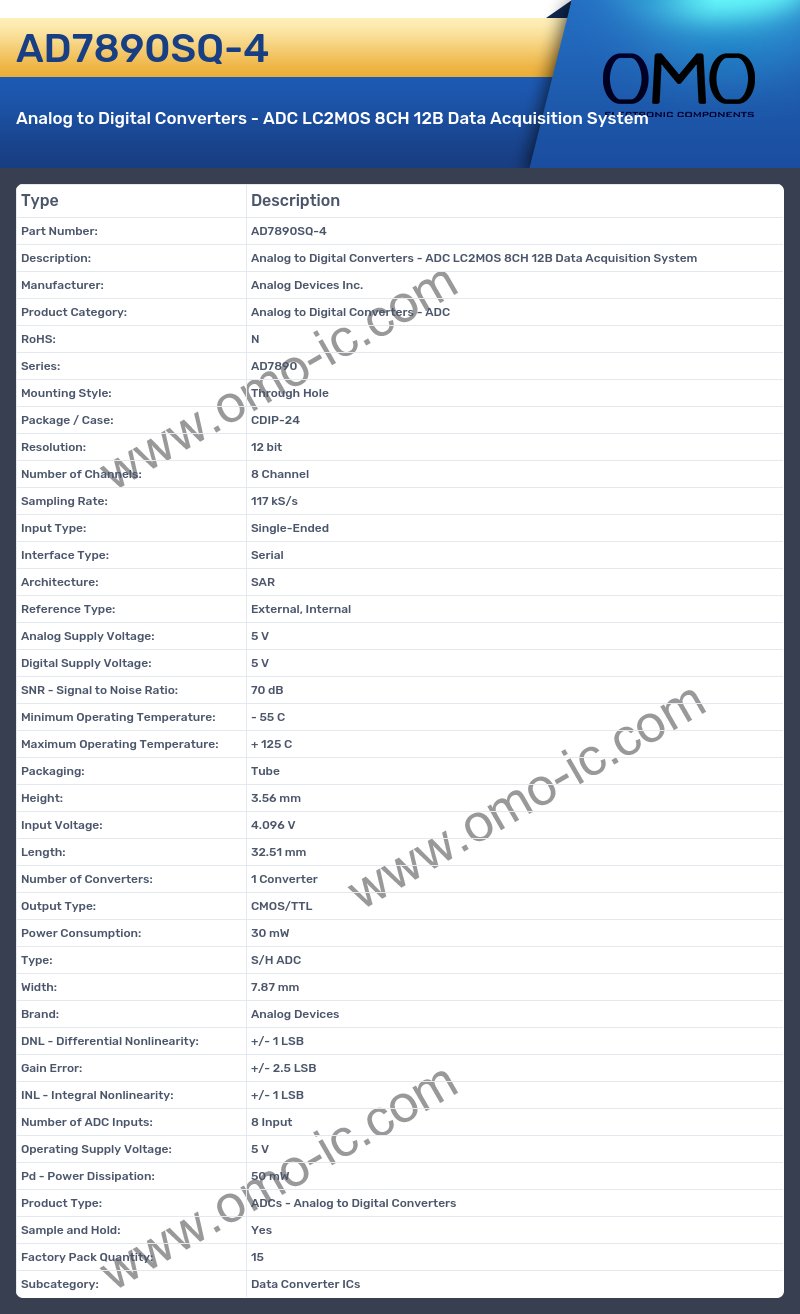

AD7890SQ-4 Image

AD7890SQ-4 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD7890
• Mounting Style: Through Hole
• Package / Case: CDIP-24
• Resolution: 12 bit
• Number of Channels: 8 Channel
• Sampling Rate: 117 kS/s
• Input Type: Single-Ended
• Interface Type: Serial
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 5 V
• SNR - Signal to Noise Ratio: 70 dB
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 3.56 mm
• Input Voltage: 4.096 V
• Length: 32.51 mm
• Number of Converters: 1 Converter
• Output Type: CMOS/TTL
• Power Consumption: 30 mW
• Type: S/H ADC
• Width: 7.87 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 2.5 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 8 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 50 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 15
• Subcategory: Data Converter ICs
