AD7896JRZ-REEL

AD7896JRZ-REEL Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 100 kS/s. Single-Ended input type Interface Type: 3-Wire, I2C, SPI SAR architecture External is the reference type. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 1.5 mm. 5.5 V Input Voltage 5 mm long The output type is CMOS/TTL. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 3 LSB is 0.2%. INL is within +/- 1 LSB 5 V operating supply voltage range 10.8 mW ADCs - Analog to Digital Converters product type 2500 of 100 Data Converter ICs as subcategory 1. 0.019048 oz of Unit Weight

AD7896JRZ-REEL Image

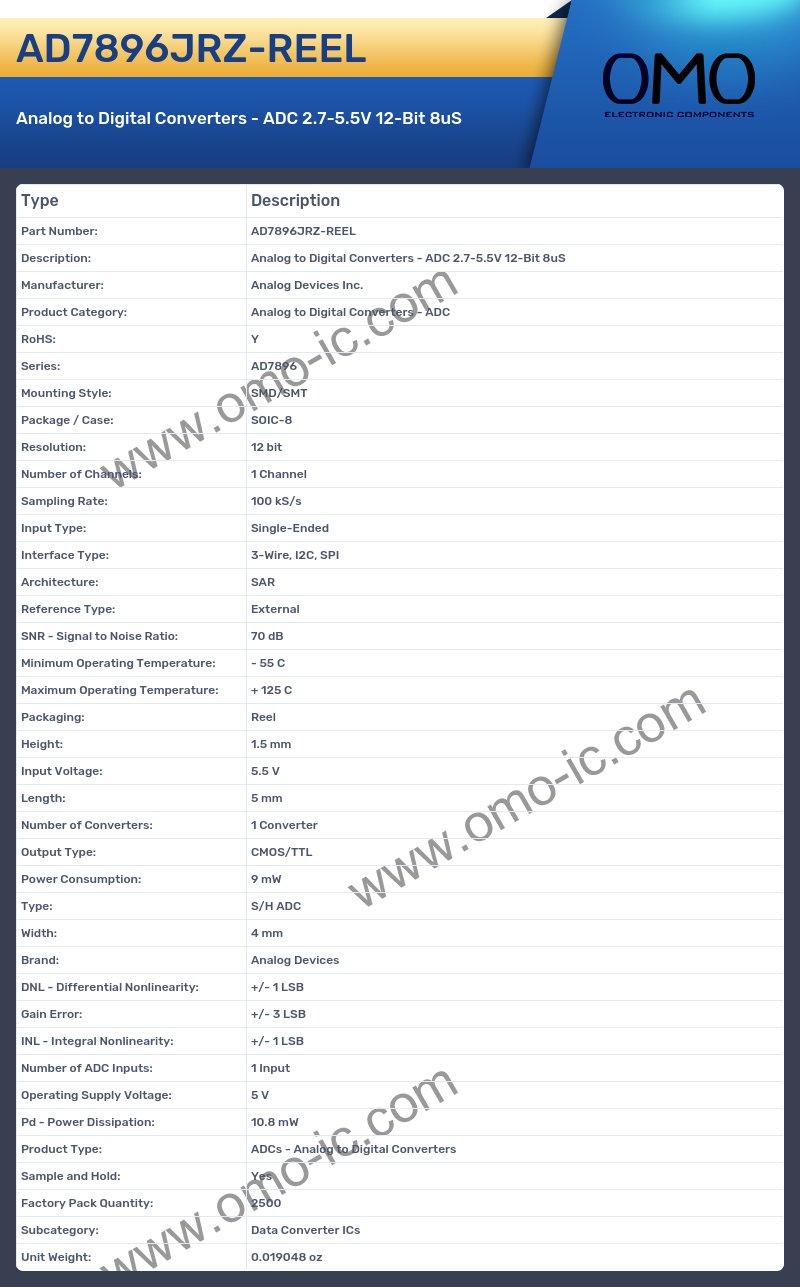

AD7896JRZ-REEL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7896
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 100 kS/s
• Input Type: Single-Ended
• Interface Type: 3-Wire, I2C, SPI
• Architecture: SAR
• Reference Type: External
• SNR - Signal to Noise Ratio: 70 dB
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Height: 1.5 mm
• Input Voltage: 5.5 V
• Length: 5 mm
• Number of Converters: 1 Converter
• Output Type: CMOS/TTL
• Power Consumption: 9 mW
• Type: S/H ADC
• Width: 4 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 3 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 10.8 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 2500
• Subcategory: Data Converter ICs
• Unit Weight: 0.019048 oz
