AD813ANZ

AD813ANZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 3 Channel for efficient performance. Bandwidth at -3 dB is 125 MHz This product has an 1.7 uA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 2.4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is General Purpose Amplifier. The height of the product is 4.95 mm (Max). 20.19 mm (Max) long Video Amplifiers Supply Type: Single, Dual Analog Devices is a trusted brand for quality electronics This product has a 54 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 18 V. +/- 1.2 V minimum dual supply voltage 2.4 V to 36 V operating supply voltage range 1600 mW Video Amplifiers product type This product has a 76 dB (Typ) of 50 dB, providing reliable power supply noise rejection. 25 of 100 Amplifier ICs as subcategory 1. 0.057144 oz of Unit Weight

AD813ANZ Image

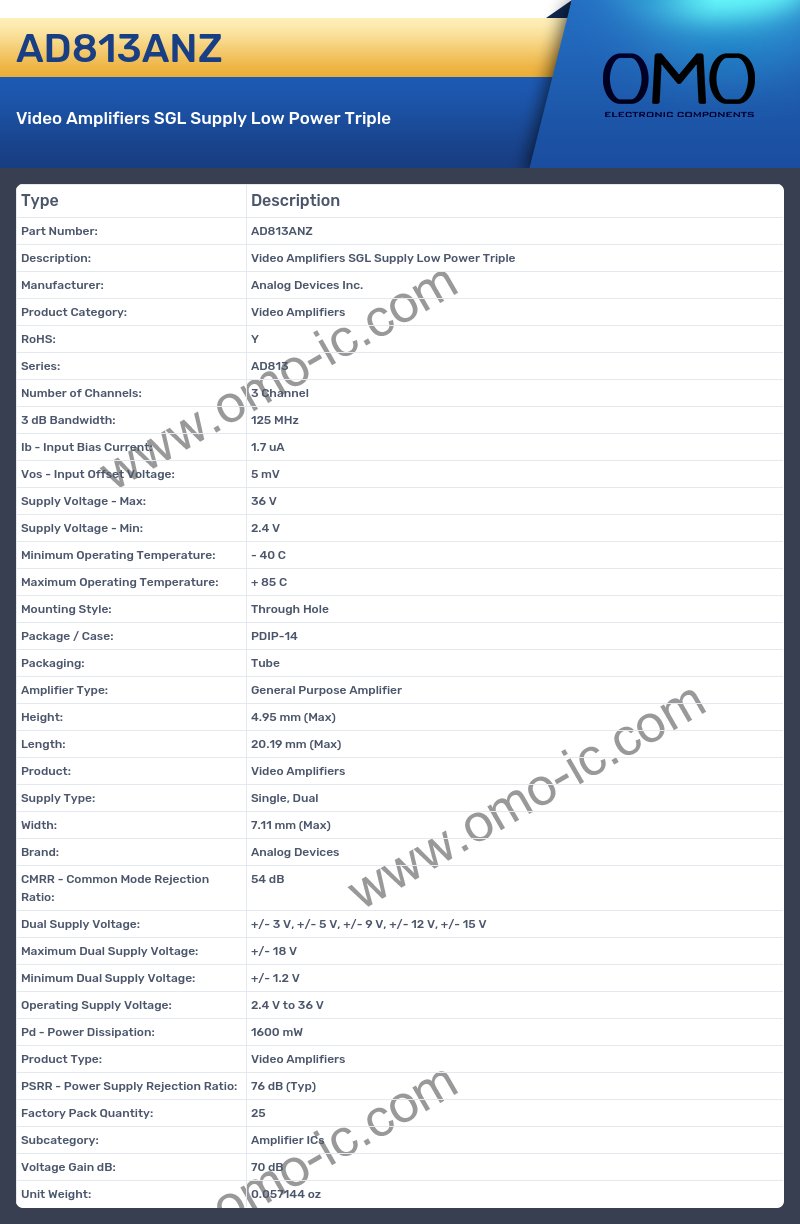

AD813ANZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: Y
• Series: AD813
• Number of Channels: 3 Channel
• 3 dB Bandwidth: 125 MHz
• Ib - Input Bias Current: 1.7 uA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 2.4 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-14
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Height: 4.95 mm (Max)
• Length: 20.19 mm (Max)
• Product: Video Amplifiers
• Supply Type: Single, Dual
• Width: 7.11 mm (Max)
• Brand: Analog Devices
• CMRR - Common Mode Rejection Ratio: 54 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 1.2 V
• Operating Supply Voltage: 2.4 V to 36 V
• Pd - Power Dissipation: 1600 mW
• Product Type: Video Amplifiers
• PSRR - Power Supply Rejection Ratio: 76 dB (Typ)
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Voltage Gain dB: 70 dB
• Unit Weight: 0.057144 oz
