AD813AR-14 Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 3 Channel for efficient performance. Bandwidth at -3 dB is 50 MHz This product has an 40 uA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 2.4 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Video. The height of the product is 1.5 mm (Max). 8.75 mm (Max) long The output type is Rail to Rail Output. Video Amplifiers Supply Type: Single Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 54 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is 18 V. 1.2 V minimum dual supply voltage 3 V to 15 V operating supply voltage range 1 W Video Amplifiers product type This product has a 76 dB of 50 dB, providing reliable power supply noise rejection. 56 of 100 Amplifier ICs as subcategory 1. 0.011923 oz of Unit Weight

AD813AR-14 Image

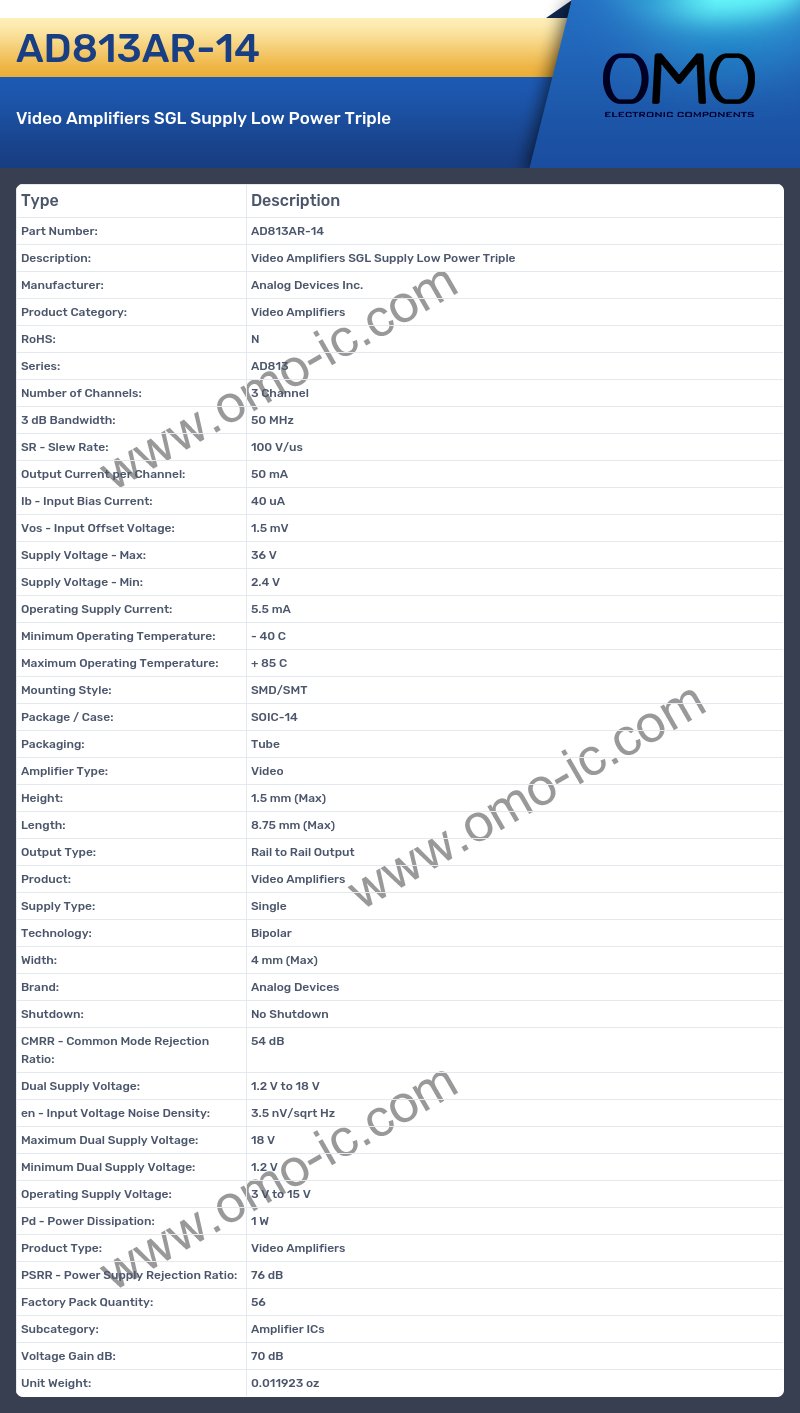

AD813AR-14 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: N
• Series: AD813
• Number of Channels: 3 Channel
• 3 dB Bandwidth: 50 MHz
• SR - Slew Rate: 100 V/us
• Output Current per Channel: 50 mA
• Ib - Input Bias Current: 40 uA
• Vos - Input Offset Voltage: 1.5 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 2.4 V
• Operating Supply Current: 5.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Tube
• Amplifier Type: Video
• Height: 1.5 mm (Max)
• Length: 8.75 mm (Max)
• Output Type: Rail to Rail Output
• Product: Video Amplifiers
• Supply Type: Single
• Technology: Bipolar
• Width: 4 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 54 dB
• Dual Supply Voltage: 1.2 V to 18 V
• en - Input Voltage Noise Density: 3.5 nV/sqrt Hz
• Maximum Dual Supply Voltage: 18 V
• Minimum Dual Supply Voltage: 1.2 V
• Operating Supply Voltage: 3 V to 15 V
• Pd - Power Dissipation: 1 W
• Product Type: Video Amplifiers
• PSRR - Power Supply Rejection Ratio: 76 dB
• Factory Pack Quantity: 56
• Subcategory: Amplifier ICs
• Voltage Gain dB: 70 dB
• Unit Weight: 0.011923 oz
