AD829JR

AD829JR Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. Bandwidth at -3 dB is 120 MHz This product has an 7 uA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Voltage Feedback. The height of the product is 1.5 mm (Max). No input type 5 mm (Max) long The output type is No. Video Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 100 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 9 V to 36 V operating supply voltage range 0.9 W Video Amplifiers product type This product has a 98 dB of 50 dB, providing reliable power supply noise rejection. 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

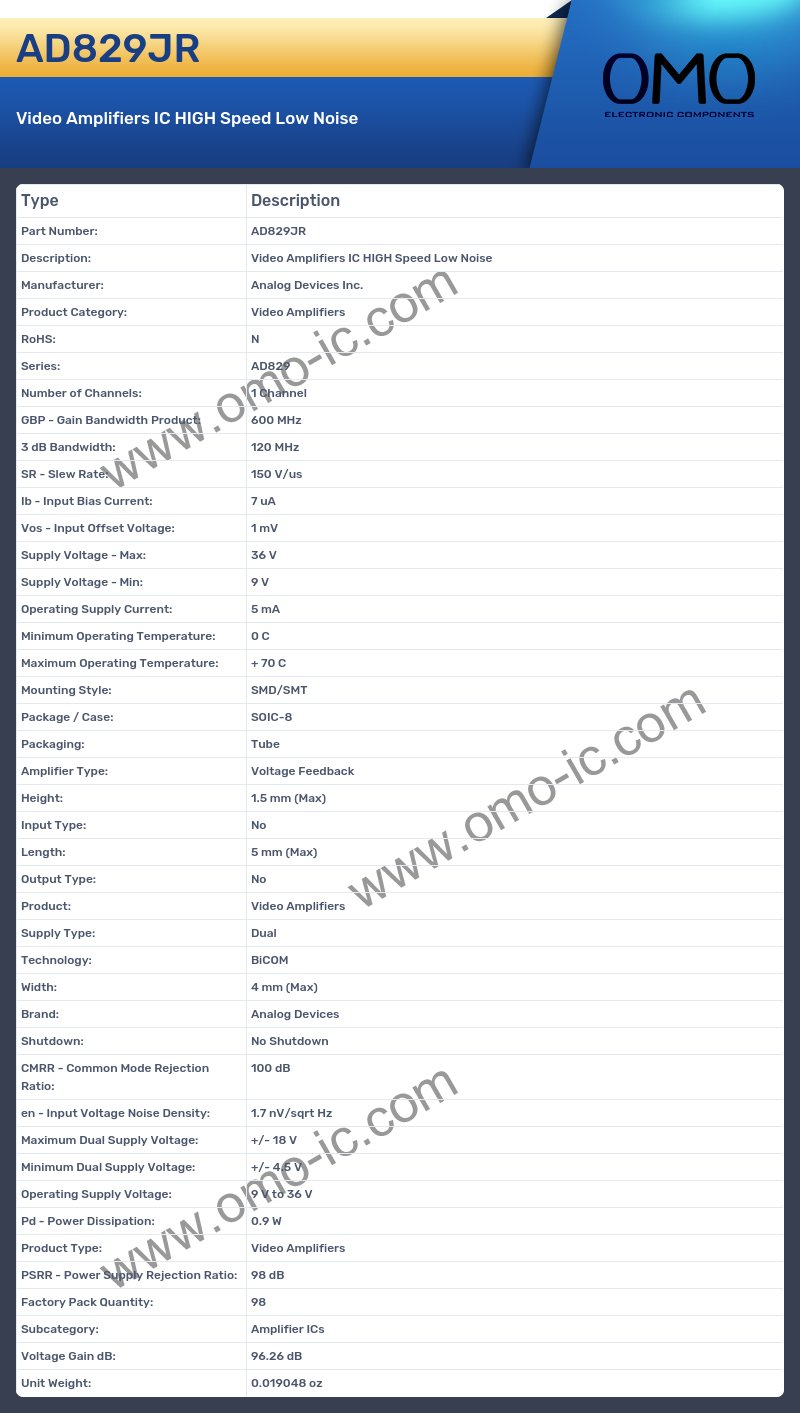

AD829JR Image

AD829JR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: N
• Series: AD829
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 600 MHz
• 3 dB Bandwidth: 120 MHz
• SR - Slew Rate: 150 V/us
• Ib - Input Bias Current: 7 uA
• Vos - Input Offset Voltage: 1 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Operating Supply Current: 5 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Amplifier Type: Voltage Feedback
• Height: 1.5 mm (Max)
• Input Type: No
• Length: 5 mm (Max)
• Output Type: No
• Product: Video Amplifiers
• Supply Type: Dual
• Technology: BiCOM
• Width: 4 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 100 dB
• en - Input Voltage Noise Density: 1.7 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 9 V to 36 V
• Pd - Power Dissipation: 0.9 W
• Product Type: Video Amplifiers
• PSRR - Power Supply Rejection Ratio: 98 dB
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Voltage Gain dB: 96.26 dB
• Unit Weight: 0.019048 oz
