AD830JRZ

AD830JRZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 10 uA of 5 uA for precise signal processing. Supply Voltage - Max: 33 V Supply Voltage - Min: 8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Video Line Receiver. The height of the product is 1.5 mm (Max). 5 mm (Max) long The output type is -. Differential Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 12.8 V This product does not have a No Shutdown feature, ensuring continuous operation. THD plus Noise value is - 72 dB. 15 MHz 0.1 dB gain flatness Bandwidth at -3 dB is 85 MHz Gain ratio is 1 V/V. 1. The maximum dual supply voltage is 16.5 V. +/- 4 V minimum dual supply voltage 4 V to 16.5 V operating supply voltage range Differential Amplifiers product type This product has a 86 dB of 50 dB, providing reliable power supply noise rejection. 25 ns settling time 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

AD830JRZ Image

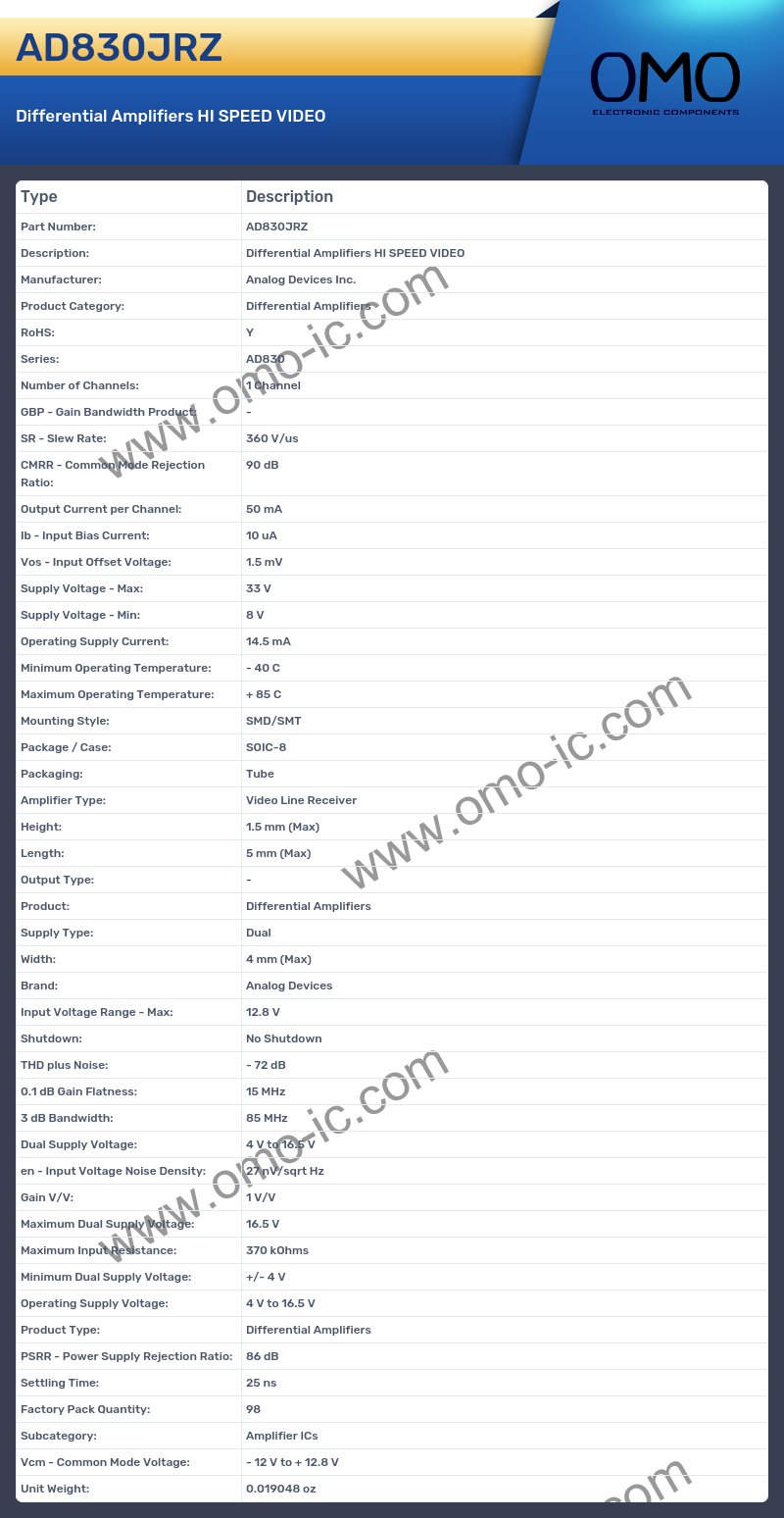

AD830JRZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Differential Amplifiers
• RoHS: Y
• Series: AD830
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 360 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB
• Output Current per Channel: 50 mA
• Ib - Input Bias Current: 10 uA
• Vos - Input Offset Voltage: 1.5 mV
• Supply Voltage - Max: 33 V
• Supply Voltage - Min: 8 V
• Operating Supply Current: 14.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Amplifier Type: Video Line Receiver
• Height: 1.5 mm (Max)
• Length: 5 mm (Max)
• Output Type: -
• Product: Differential Amplifiers
• Supply Type: Dual
• Width: 4 mm (Max)
• Brand: Analog Devices
• Input Voltage Range - Max: 12.8 V
• Shutdown: No Shutdown
• THD plus Noise: - 72 dB
• 0.1 dB Gain Flatness: 15 MHz
• 3 dB Bandwidth: 85 MHz
• Dual Supply Voltage: 4 V to 16.5 V
• en - Input Voltage Noise Density: 27 nV/sqrt Hz
• Gain V/V: 1 V/V
• Maximum Dual Supply Voltage: 16.5 V
• Maximum Input Resistance: 370 kOhms
• Minimum Dual Supply Voltage: +/- 4 V
• Operating Supply Voltage: 4 V to 16.5 V
• Product Type: Differential Amplifiers
• PSRR - Power Supply Rejection Ratio: 86 dB
• Settling Time: 25 ns
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 12 V to + 12.8 V
• Unit Weight: 0.019048 oz
