ADC124S021CIMM

ADC124S021CIMM Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. MSOP-10 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Single-Ended input type Interface Type: SPI SAR architecture Supply is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.86 mm. 5.25 V Input Voltage 3 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The - 0.8 LSB to + 1.1 LSB, ensuring accurate and precise analog-to-digital conversion. 1.5 LSB is 0.2%. INL is within - 1.1 LSB, + 0.8 LSB 3.3 V, 5 V operating supply voltage range 11 mW ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.005051 oz of Unit Weight

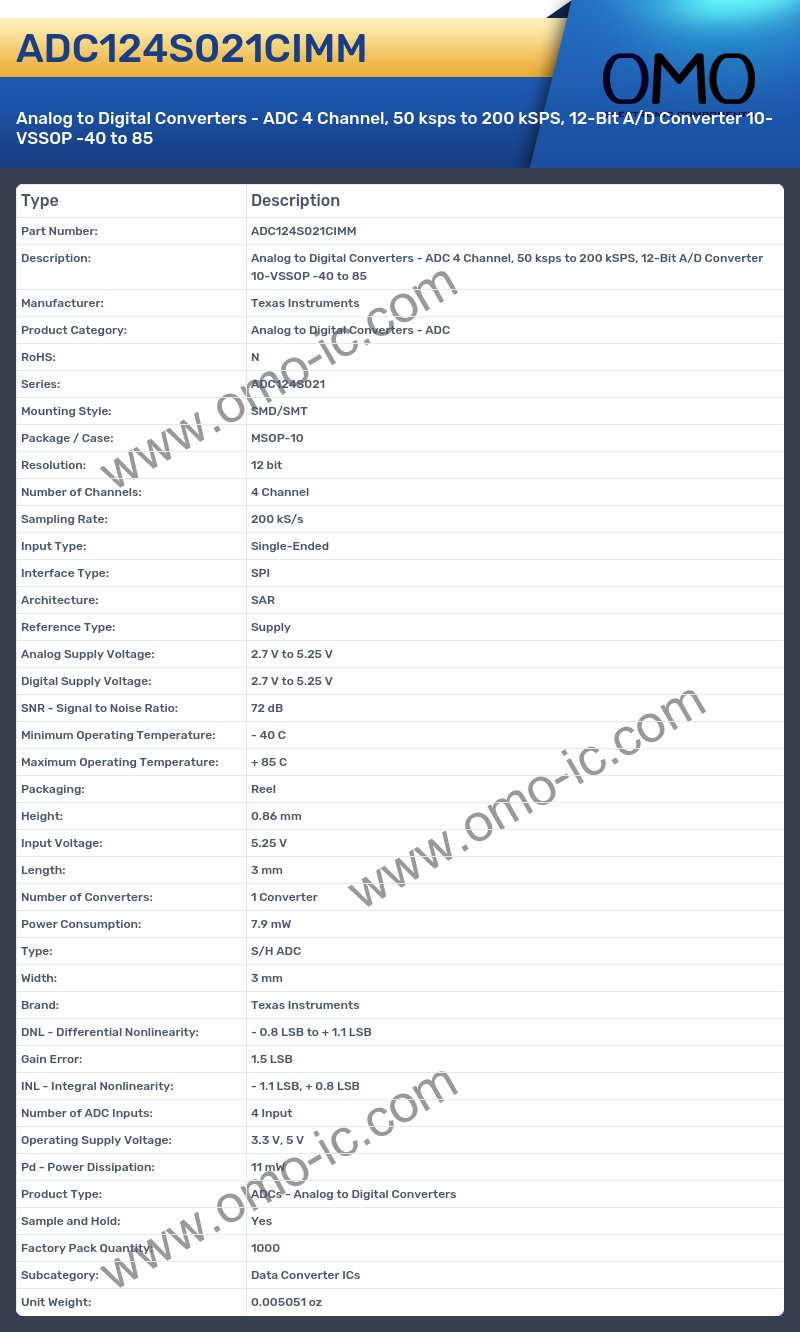

ADC124S021CIMM Image

ADC124S021CIMM Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: ADC124S021
• Mounting Style: SMD/SMT
• Package / Case: MSOP-10
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 200 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: Supply
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 2.7 V to 5.25 V
• SNR - Signal to Noise Ratio: 72 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.86 mm
• Input Voltage: 5.25 V
• Length: 3 mm
• Number of Converters: 1 Converter
• Power Consumption: 7.9 mW
• Type: S/H ADC
• Width: 3 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: - 0.8 LSB to + 1.1 LSB
• Gain Error: 1.5 LSB
• INL - Integral Nonlinearity: - 1.1 LSB, + 0.8 LSB
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 3.3 V, 5 V
• Pd - Power Dissipation: 11 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.005051 oz
