ADM8699AN

ADM8699AN Overview

This product is manufactured by Analog Devices Inc.. This device belongs to the Voltage Supervisory type. PDIP-8 package/case type is utilized by this product. 3 V to 5.5 V threshold voltage range The output type is Active High, Active Low, Push-Pull. 280 ms. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.43 mm. 9.27 mm long Analog Devices is a trusted brand for quality electronics 4.75 V is specified as a product attribute. The 4.5 V is a critical parameter in this product. No Chip Enable signal is supported. 500 mW (1/2 W) Supervisory Circuits product type 50 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 3 V

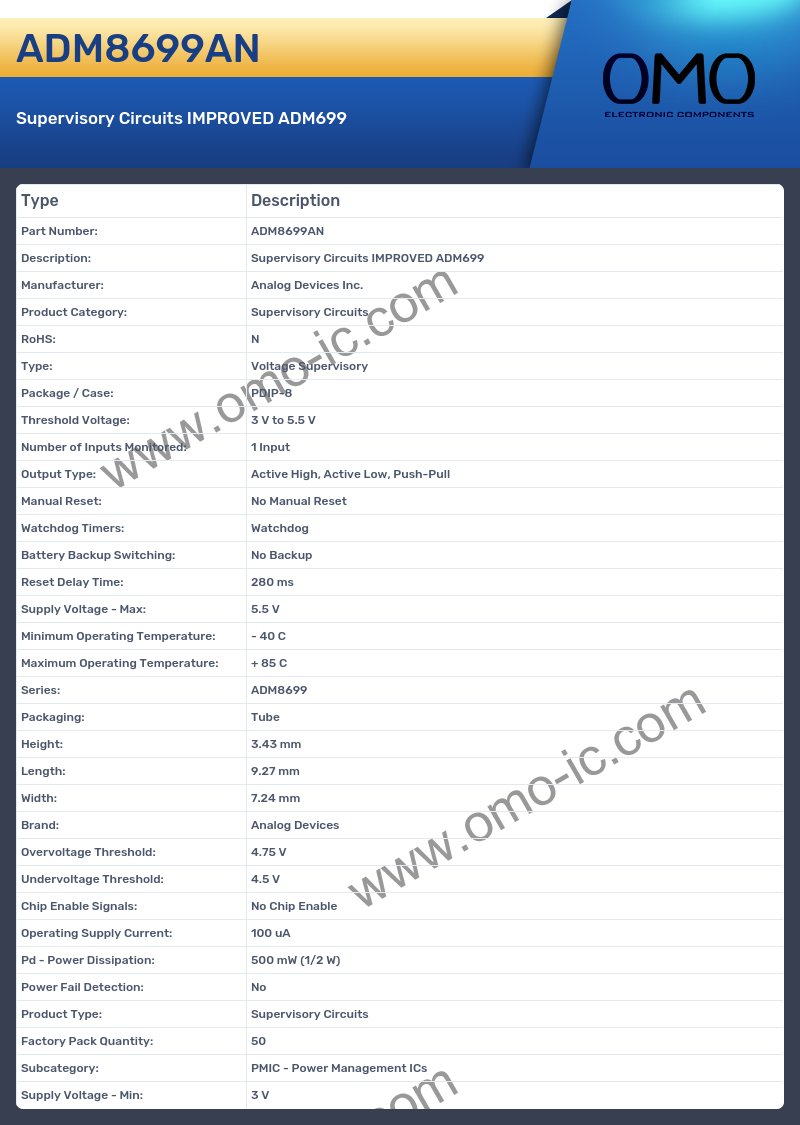

ADM8699AN Image

ADM8699AN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Supervisory Circuits
• RoHS: N
• Type: Voltage Supervisory
• Package / Case: PDIP-8
• Threshold Voltage: 3 V to 5.5 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active High, Active Low, Push-Pull
• Manual Reset: No Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: 280 ms
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: ADM8699
• Packaging: Tube
• Height: 3.43 mm
• Length: 9.27 mm
• Width: 7.24 mm
• Brand: Analog Devices
• Overvoltage Threshold: 4.75 V
• Undervoltage Threshold: 4.5 V
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 100 uA
• Pd - Power Dissipation: 500 mW (1/2 W)
• Power Fail Detection: No
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 3 V
