ADS1198CPAG

ADS1198CPAG Overview

This product is manufactured by Texas Instruments. This device belongs to the Biopotential type. The sampling rate of this product is 8 kS/s. This product is equipped with 8 Channel for efficient performance. Interface Type: Serial, SPI Supply Voltage - Max: 5.25 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. TQFP-64 package/case type is utilized by this product. Tray packaging for easy dispensing Differential/Single-Ended input type Sigma-Delta architecture Texas Instruments is a trusted brand for quality electronics External, Internal is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. INL is within 15 ppm Yes regarding Moisture Sensitivity 2.7 V to 5.25 V operating supply voltage range 4.8 mW Analog Front End - AFE product type 160 of 100 Data Converter ICs as subcategory 1. 0.012720 oz of Unit Weight

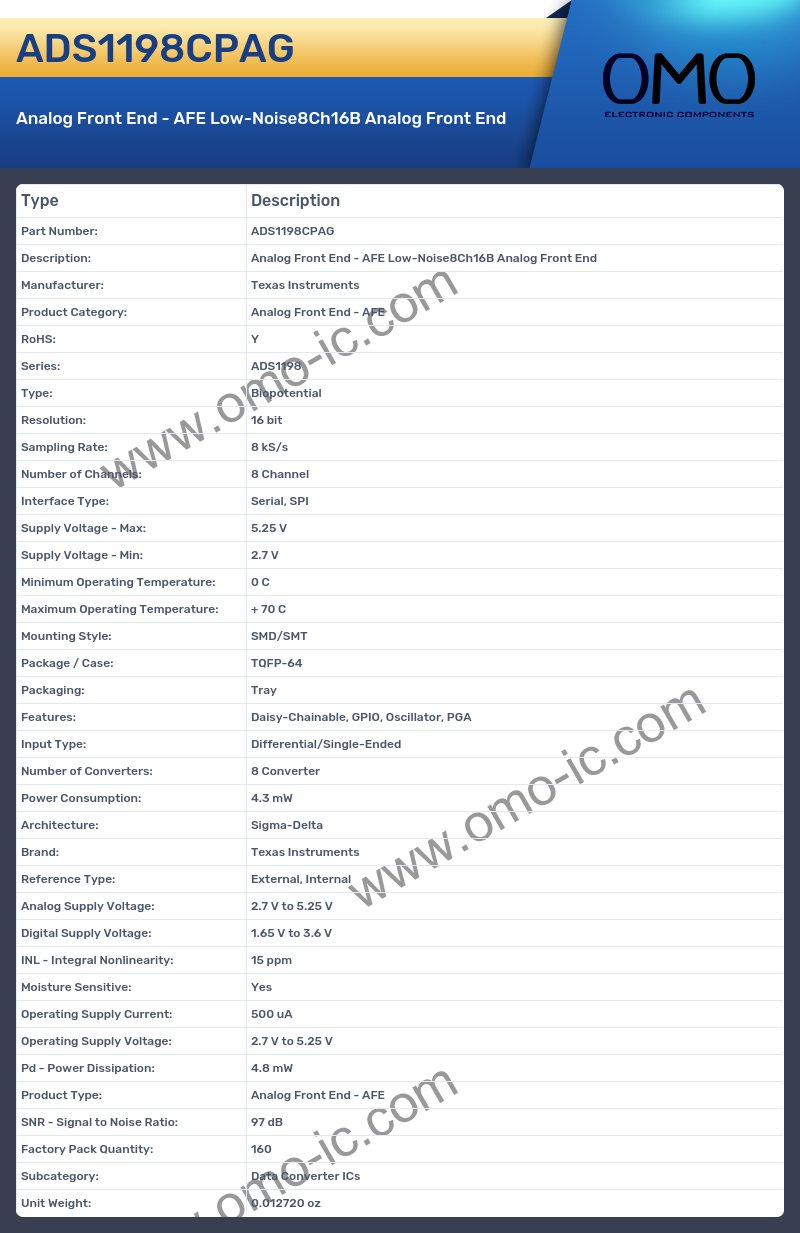

ADS1198CPAG Image

ADS1198CPAG Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Front End - AFE
• RoHS: Y
• Series: ADS1198
• Type: Biopotential
• Resolution: 16 bit
• Sampling Rate: 8 kS/s
• Number of Channels: 8 Channel
• Interface Type: Serial, SPI
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: TQFP-64
• Packaging: Tray
• Features: Daisy-Chainable, GPIO, Oscillator, PGA
• Input Type: Differential/Single-Ended
• Number of Converters: 8 Converter
• Power Consumption: 4.3 mW
• Architecture: Sigma-Delta
• Brand: Texas Instruments
• Reference Type: External, Internal
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 1.65 V to 3.6 V
• INL - Integral Nonlinearity: 15 ppm
• Moisture Sensitive: Yes
• Operating Supply Current: 500 uA
• Operating Supply Voltage: 2.7 V to 5.25 V
• Pd - Power Dissipation: 4.8 mW
• Product Type: Analog Front End - AFE
• SNR - Signal to Noise Ratio: 97 dB
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Unit Weight: 0.012720 oz
