This product is manufactured by Texas Instruments. Isolated Analog to Digital Converters This device belongs to the Isolated Precision ADC type. This product is equipped with 1 Channel for efficient performance. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing Differential input type The output type is LVDS. The sampling rate of this product is 20 MS/s. Sigma-Delta architecture Texas Instruments is a trusted brand for quality electronics Interface Type: Serial Internal is the reference type. This product does not have a No Shutdown feature, ensuring continuous operation. This product requires an 4 V to 18 V for proper operation. AMC1304L05EVM is a versatile development platform for hardware and software The 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 4 LSB Yes regarding Moisture Sensitivity 117 mW Data Acquisition ADCs/DACs - Specialized product type 40 of 100 Data Converter ICs as subcategory THD is as low as - 90 dB. 1. 0.023492 oz of Unit Weight

AMC1304L05DW Image

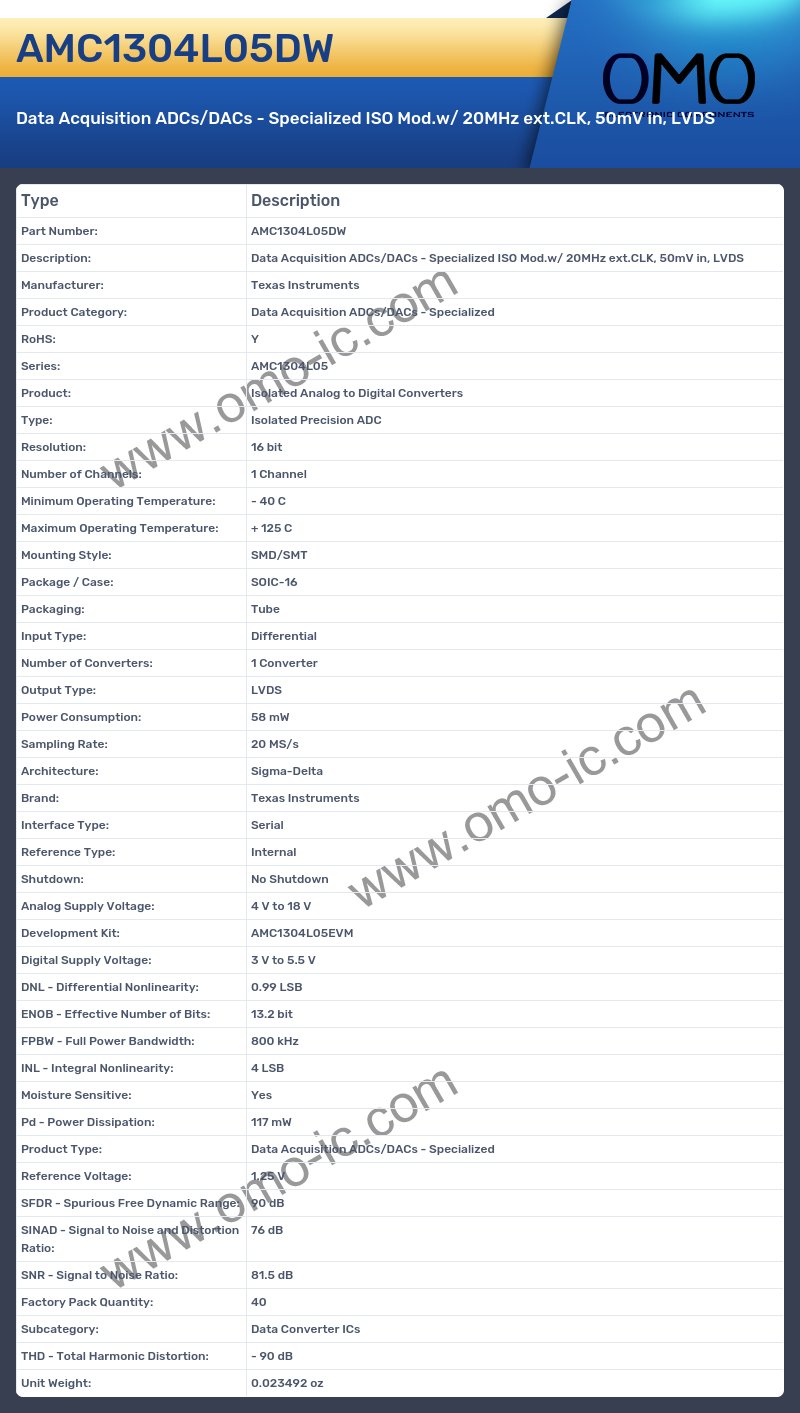

AMC1304L05DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Data Acquisition ADCs/DACs - Specialized
• RoHS: Y
• Series: AMC1304L05
• Product: Isolated Analog to Digital Converters
• Type: Isolated Precision ADC
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Input Type: Differential
• Number of Converters: 1 Converter
• Output Type: LVDS
• Power Consumption: 58 mW
• Sampling Rate: 20 MS/s
• Architecture: Sigma-Delta
• Brand: Texas Instruments
• Interface Type: Serial
• Reference Type: Internal
• Shutdown: No Shutdown
• Analog Supply Voltage: 4 V to 18 V
• Development Kit: AMC1304L05EVM
• Digital Supply Voltage: 3 V to 5.5 V
• DNL - Differential Nonlinearity: 0.99 LSB
• ENOB - Effective Number of Bits: 13.2 bit
• FPBW - Full Power Bandwidth: 800 kHz
• INL - Integral Nonlinearity: 4 LSB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 117 mW
• Product Type: Data Acquisition ADCs/DACs - Specialized
• Reference Voltage: 1.25 V
• SFDR - Spurious Free Dynamic Range: 90 dB
• SINAD - Signal to Noise and Distortion Ratio: 76 dB
• SNR - Signal to Noise Ratio: 81.5 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 90 dB
• Unit Weight: 0.023492 oz
