CD4043BD Overview

This product is manufactured by Texas Instruments. This product has 1 Circuit circuit. CMOS. The product uses the CD4000 logic family. Polarity type: Non-Inverting This product has a - 4.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 300 ns at 5 V, 140 ns at 10 V, 100 ns at 15 V. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Transparent The height of the product is 1.58 mm. 9.9 mm long The output type is 3-State. This device belongs to the S-R Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 4 Channels for efficient performance. Maximum supply current: 40 nA 3.3 V, 5 V, 9 V, 12 V, 15 V operating supply voltage range Latches product type No Reset Reset Type 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

CD4043BD Image

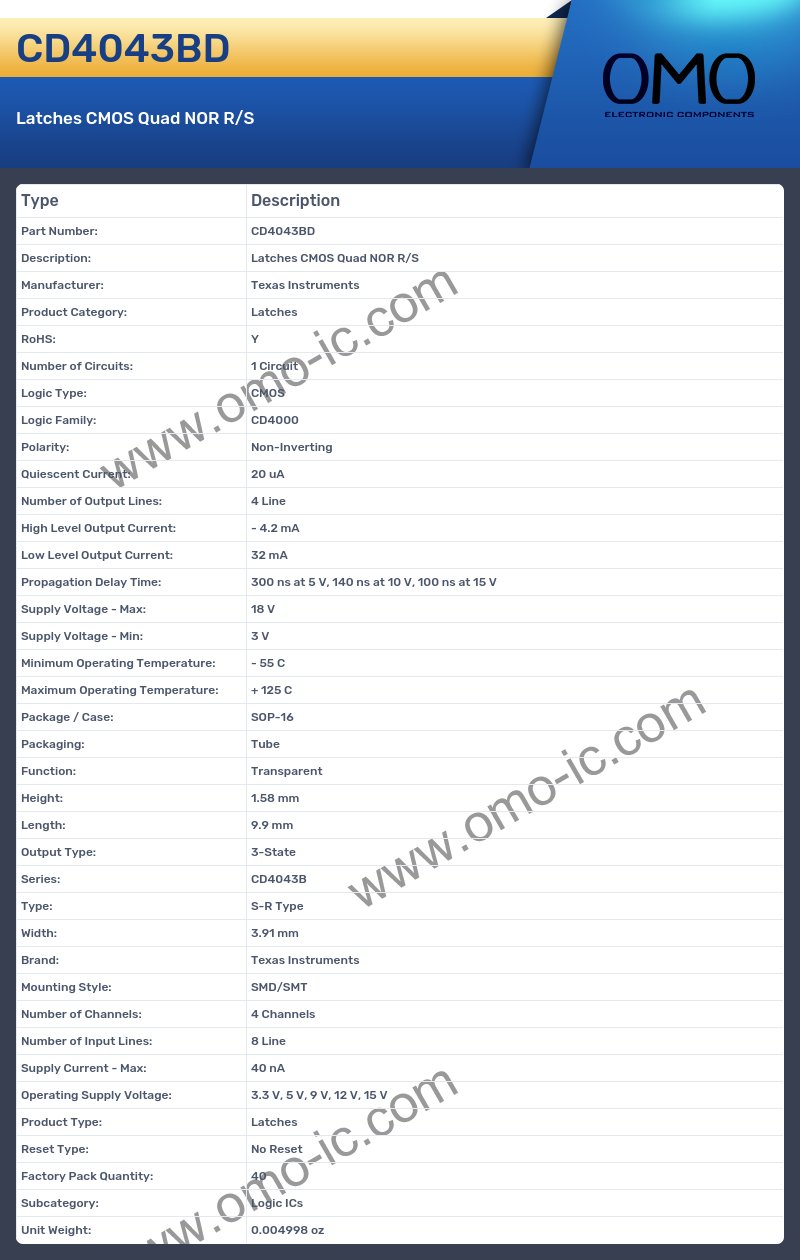

CD4043BD Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 1 Circuit
• Logic Type: CMOS
• Logic Family: CD4000
• Polarity: Non-Inverting
• Quiescent Current: 20 uA
• Number of Output Lines: 4 Line
• High Level Output Current: - 4.2 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 300 ns at 5 V, 140 ns at 10 V, 100 ns at 15 V
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Package / Case: SOP-16
• Packaging: Tube
• Function: Transparent
• Height: 1.58 mm
• Length: 9.9 mm
• Output Type: 3-State
• Series: CD4043B
• Type: S-R Type
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 4 Channels
• Number of Input Lines: 8 Line
• Supply Current - Max: 40 nA
• Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V
• Product Type: Latches
• Reset Type: No Reset
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
