CSD15571Q2 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 22 A continuous drain current Rds On value of 15 mOhms Gate-Source Threshold Voltage Range: 1.1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.5 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.75 mm. 2 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 25 S 4.1 ns fall time MOSFET product type Rise Time is 17.2 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 9.9 ns. The typical turn-on delay time is 4.7 ns. 1. 0.000198 oz of Unit Weight

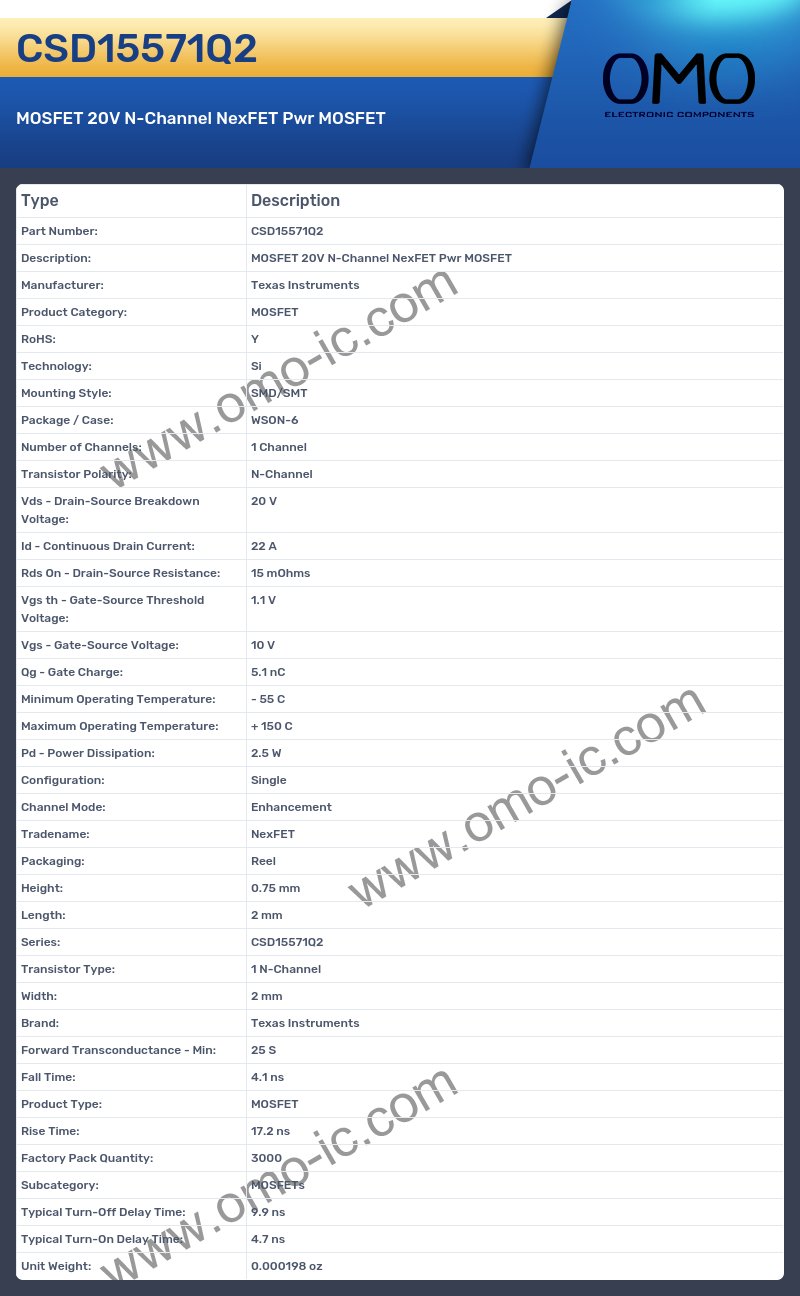

CSD15571Q2 Image

CSD15571Q2 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: WSON-6
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 22 A
• Rds On - Drain-Source Resistance: 15 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.1 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 5.1 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.5 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.75 mm
• Length: 2 mm
• Series: CSD15571Q2
• Transistor Type: 1 N-Channel
• Width: 2 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 25 S
• Fall Time: 4.1 ns
• Product Type: MOSFET
• Rise Time: 17.2 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 9.9 ns
• Typical Turn-On Delay Time: 4.7 ns
• Unit Weight: 0.000198 oz
