CSD17313Q2

CSD17313Q2 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 5 A continuous drain current Rds On value of 30 mOhms Gate-Source Threshold Voltage Range: 900 mV Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 17 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.75 mm. 2 mm long The Transistor Type is 1 N-Channel Power MOSFET. Texas Instruments is a trusted brand for quality electronics TMDSCSK388, TMDSCSK8127 is a versatile development platform for hardware and software 1.3 ns fall time MOSFET product type Rise Time is 3.9 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 4.2 ns. The typical turn-on delay time is 2.8 ns. 1. 0.000307 oz of Unit Weight

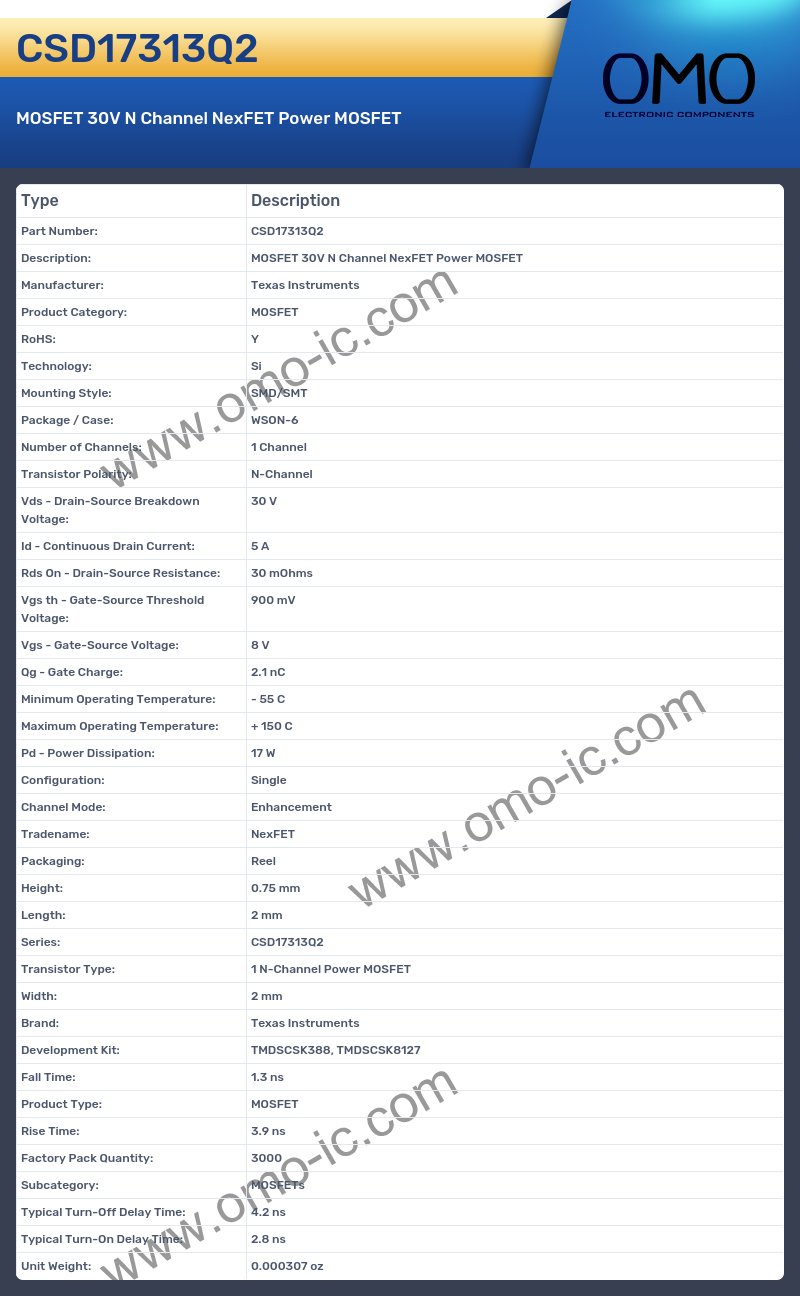

CSD17313Q2 Image

CSD17313Q2 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: WSON-6
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 5 A
• Rds On - Drain-Source Resistance: 30 mOhms
• Vgs th - Gate-Source Threshold Voltage: 900 mV
• Vgs - Gate-Source Voltage: 8 V
• Qg - Gate Charge: 2.1 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 17 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.75 mm
• Length: 2 mm
• Series: CSD17313Q2
• Transistor Type: 1 N-Channel Power MOSFET
• Width: 2 mm
• Brand: Texas Instruments
• Development Kit: TMDSCSK388, TMDSCSK8127
• Fall Time: 1.3 ns
• Product Type: MOSFET
• Rise Time: 3.9 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 4.2 ns
• Typical Turn-On Delay Time: 2.8 ns
• Unit Weight: 0.000307 oz
