CSD17313Q2Q1T

CSD17313Q2Q1T Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-FET-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 5 A continuous drain current Rds On value of 24 mOhms Gate-Source Threshold Voltage Range: 1.3 V Gate-Source Voltage: 10 V, 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 17 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.75 mm. 2 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 16 S 1.3 ns fall time MOSFET product type Rise Time is 3.9 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 4.2 ns. The typical turn-on delay time is 2.8 ns.

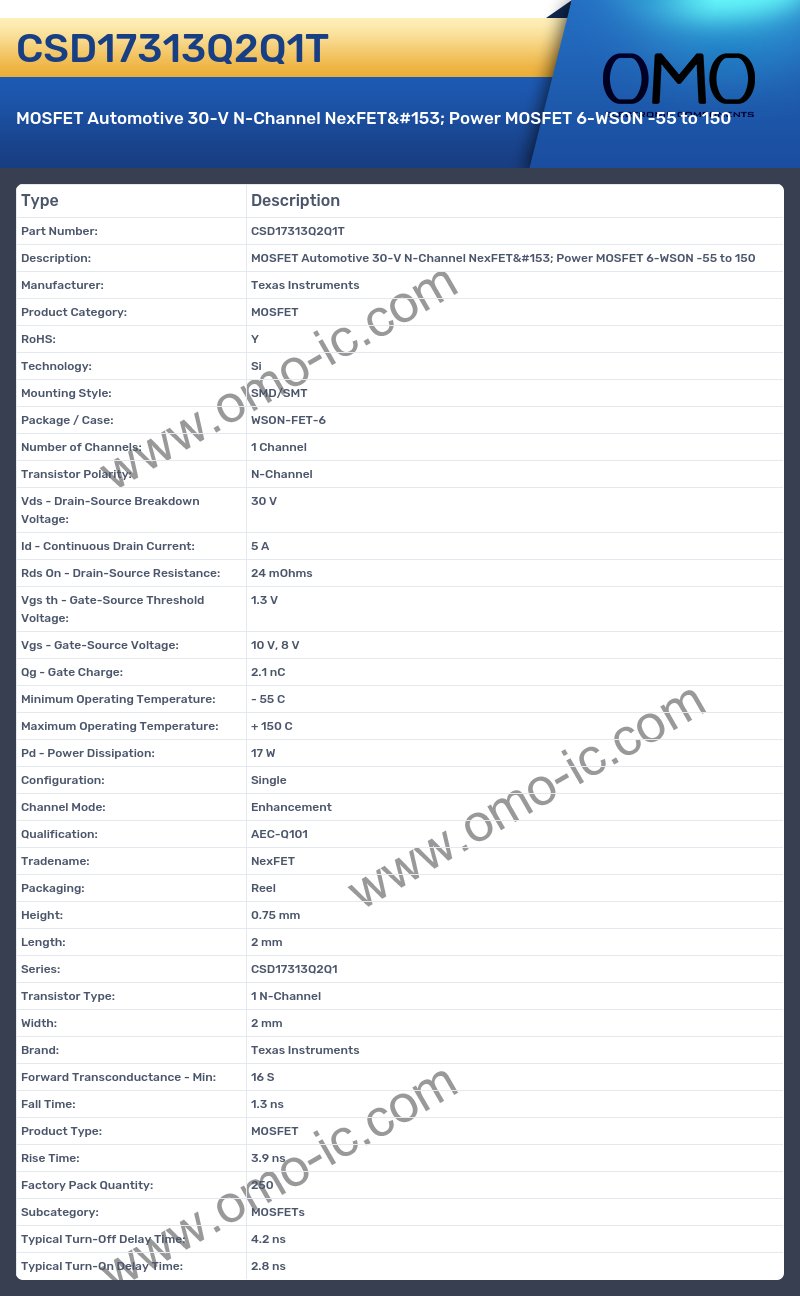

CSD17313Q2Q1T Image

CSD17313Q2Q1T Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: WSON-FET-6
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 5 A
• Rds On - Drain-Source Resistance: 24 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.3 V
• Vgs - Gate-Source Voltage: 10 V, 8 V
• Qg - Gate Charge: 2.1 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 17 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: NexFET
• Packaging: Reel
• Height: 0.75 mm
• Length: 2 mm
• Series: CSD17313Q2Q1
• Transistor Type: 1 N-Channel
• Width: 2 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 16 S
• Fall Time: 1.3 ns
• Product Type: MOSFET
• Rise Time: 3.9 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 4.2 ns
• Typical Turn-On Delay Time: 2.8 ns
