CSD19534Q5AT

CSD19534Q5AT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSONP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 100 V 50 A continuous drain current Rds On value of 15.1 mOhms Gate-Source Threshold Voltage Range: 2.8 V Gate-Source Voltage: 2.8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 63 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 6 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics 6 ns fall time MOSFET product type Rise Time is 14 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 20 ns. The typical turn-on delay time is 9 ns. 1. 0.000847 oz of Unit Weight

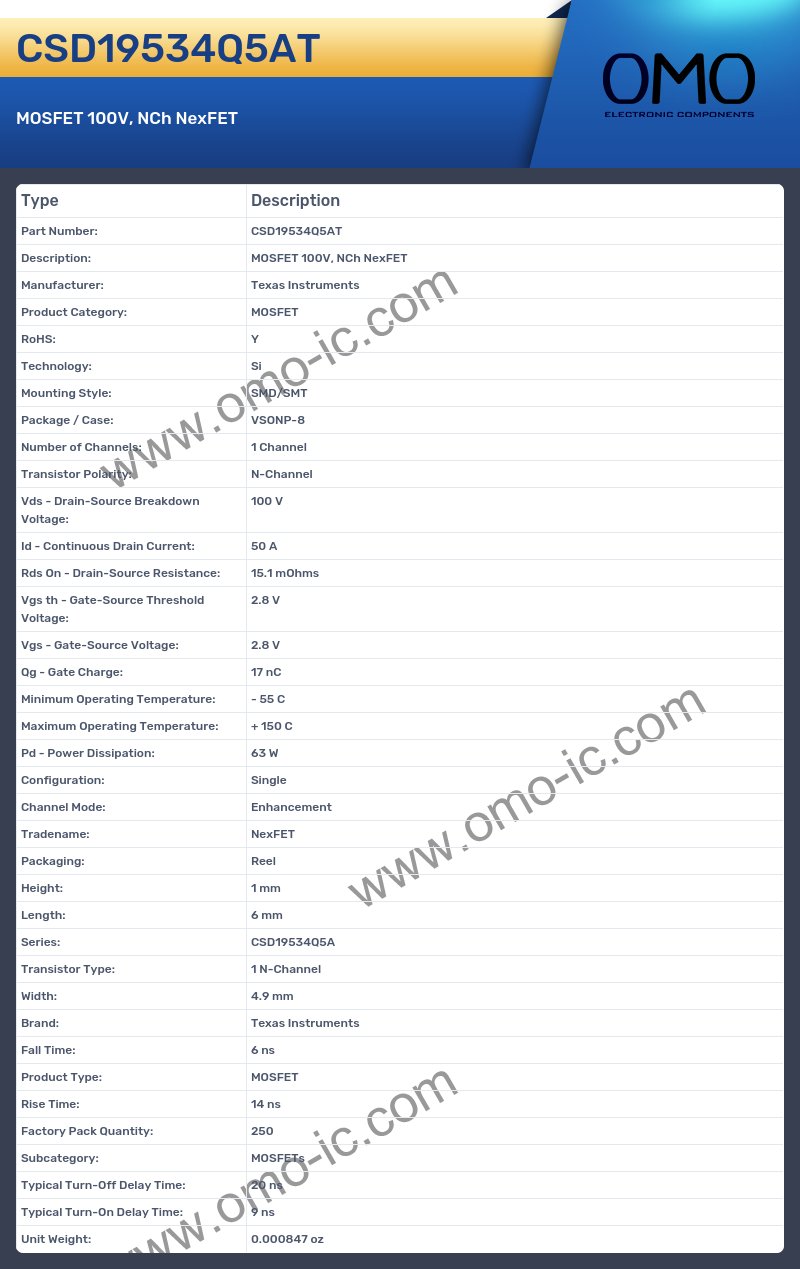

CSD19534Q5AT Image

CSD19534Q5AT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSONP-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 100 V
• Id - Continuous Drain Current: 50 A
• Rds On - Drain-Source Resistance: 15.1 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2.8 V
• Vgs - Gate-Source Voltage: 2.8 V
• Qg - Gate Charge: 17 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 63 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 1 mm
• Length: 6 mm
• Series: CSD19534Q5A
• Transistor Type: 1 N-Channel
• Width: 4.9 mm
• Brand: Texas Instruments
• Fall Time: 6 ns
• Product Type: MOSFET
• Rise Time: 14 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 20 ns
• Typical Turn-On Delay Time: 9 ns
• Unit Weight: 0.000847 oz
