CSD85301Q2T

CSD85301Q2T Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-FET-6 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 20 V 5 A continuous drain current Rds On value of 27 mOhms Gate-Source Threshold Voltage Range: 600 mV Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.3 W This product has a Dual configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.75 mm. 2 mm long The Transistor Type is 2 N-Channel. Texas Instruments is a trusted brand for quality electronics 15 ns fall time MOSFET product type Rise Time is 26 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 14 ns. The typical turn-on delay time is 6 ns. 1. 0.000342 oz of Unit Weight

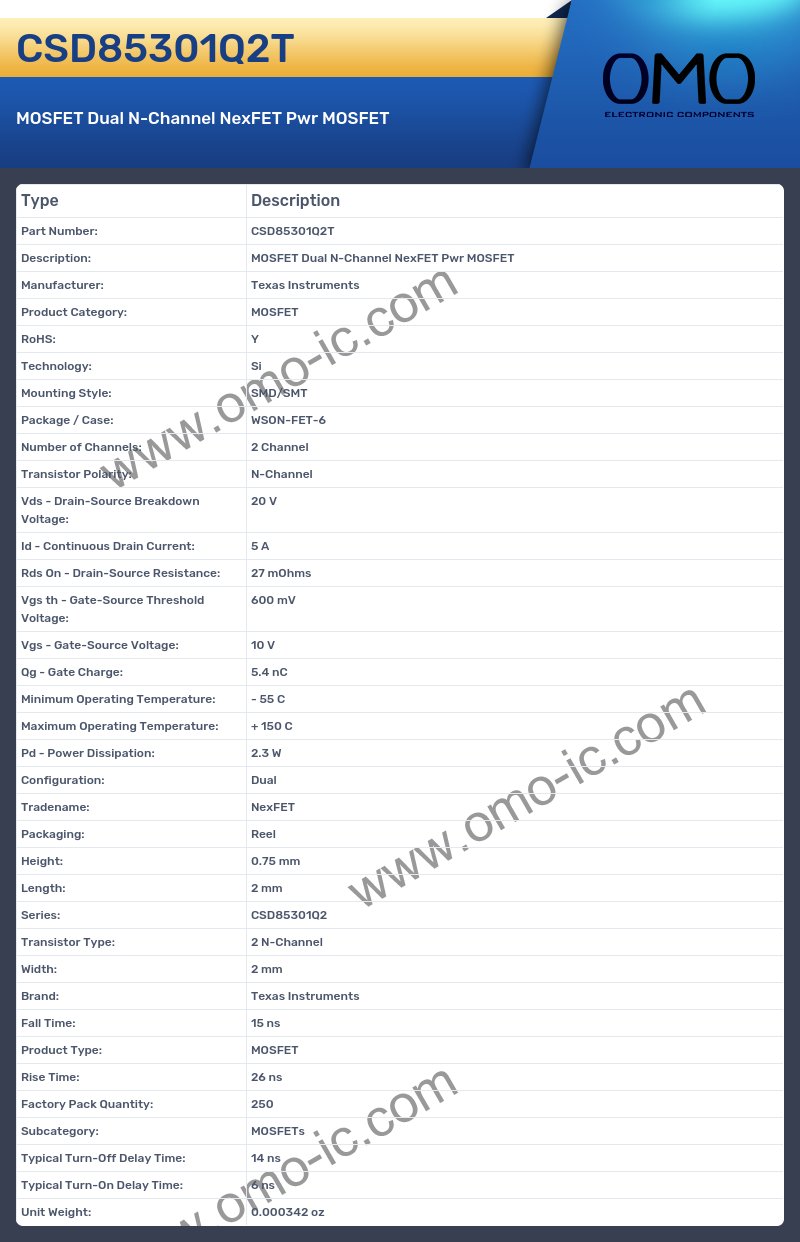

CSD85301Q2T Image

CSD85301Q2T Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: WSON-FET-6
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 5 A
• Rds On - Drain-Source Resistance: 27 mOhms
• Vgs th - Gate-Source Threshold Voltage: 600 mV
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 5.4 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.3 W
• Configuration: Dual
• Tradename: NexFET
• Packaging: Reel
• Height: 0.75 mm
• Length: 2 mm
• Series: CSD85301Q2
• Transistor Type: 2 N-Channel
• Width: 2 mm
• Brand: Texas Instruments
• Fall Time: 15 ns
• Product Type: MOSFET
• Rise Time: 26 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 14 ns
• Typical Turn-On Delay Time: 6 ns
• Unit Weight: 0.000342 oz
