CSD88539ND

CSD88539ND Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 60 V 15 A continuous drain current Rds On value of 28 mOhms Gate-Source Threshold Voltage Range: 2.6 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.1 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1.75 mm. 4.9 mm long The Transistor Type is 2 N-Channel Power MOSFET. Texas Instruments is a trusted brand for quality electronics 4 ns fall time MOSFET product type Rise Time is 9 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 14 ns. The typical turn-on delay time is 5 ns. 1. 0.019048 oz of Unit Weight

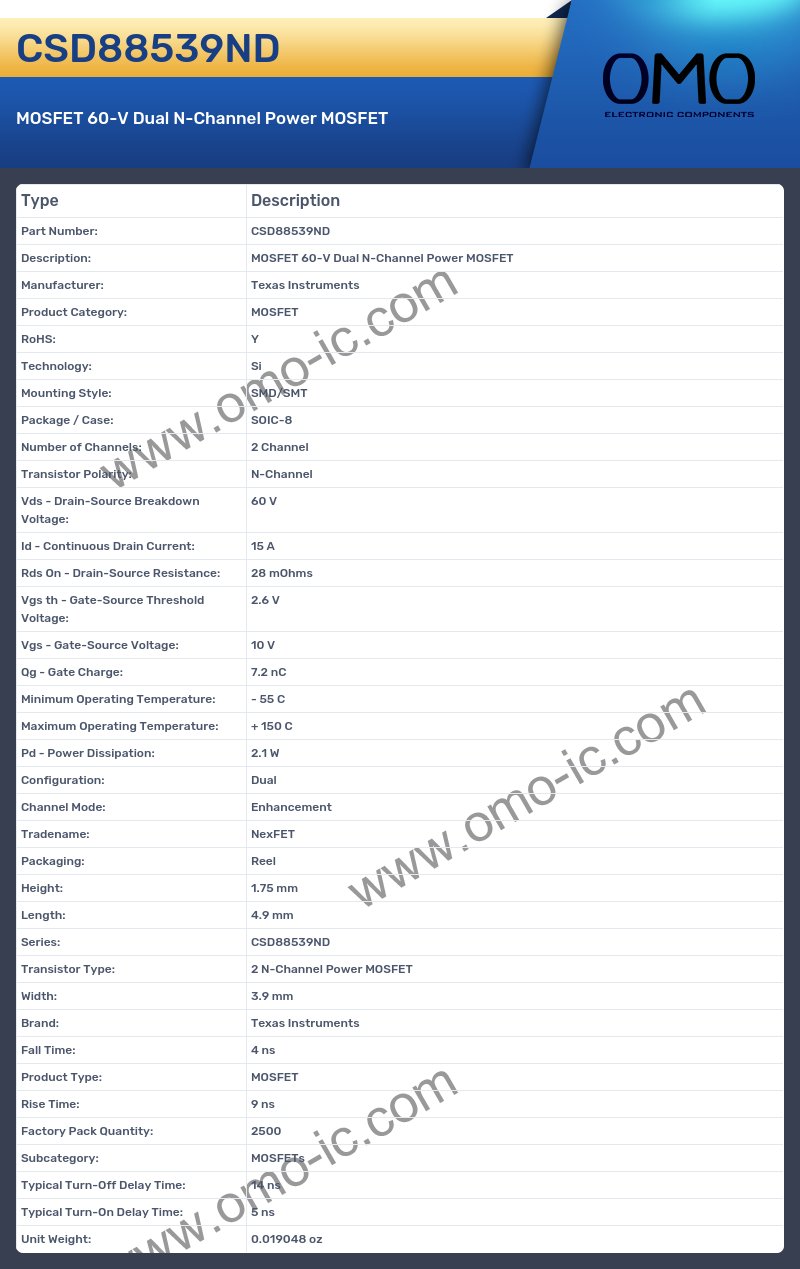

CSD88539ND Image

CSD88539ND Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 15 A
• Rds On - Drain-Source Resistance: 28 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2.6 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 7.2 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.1 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 1.75 mm
• Length: 4.9 mm
• Series: CSD88539ND
• Transistor Type: 2 N-Channel Power MOSFET
• Width: 3.9 mm
• Brand: Texas Instruments
• Fall Time: 4 ns
• Product Type: MOSFET
• Rise Time: 9 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 14 ns
• Typical Turn-On Delay Time: 5 ns
• Unit Weight: 0.019048 oz
