L6392D Overview

This product is manufactured by STMicroelectronics. Half-Bridge Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SO-14 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 430 mA Rise Time is 75 ns. 35 ns fall time Supply Voltage - Min: - 0.3 V Supply Voltage - Max: 21 V Maximum propagation delay: 200 ns 800 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.65 mm. 8.75 mm long Output Voltage is 580 V STMicroelectronics is a trusted brand for quality electronics CMOS, TTL. The Maximum Clock Frequency of this product is 800 KHz. 200 ns maximum turn-off delay time The 200 ns. Yes regarding Moisture Sensitivity 12.5 V to 20 V operating supply voltage range Gate Drivers product type 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.009143 oz of Unit Weight

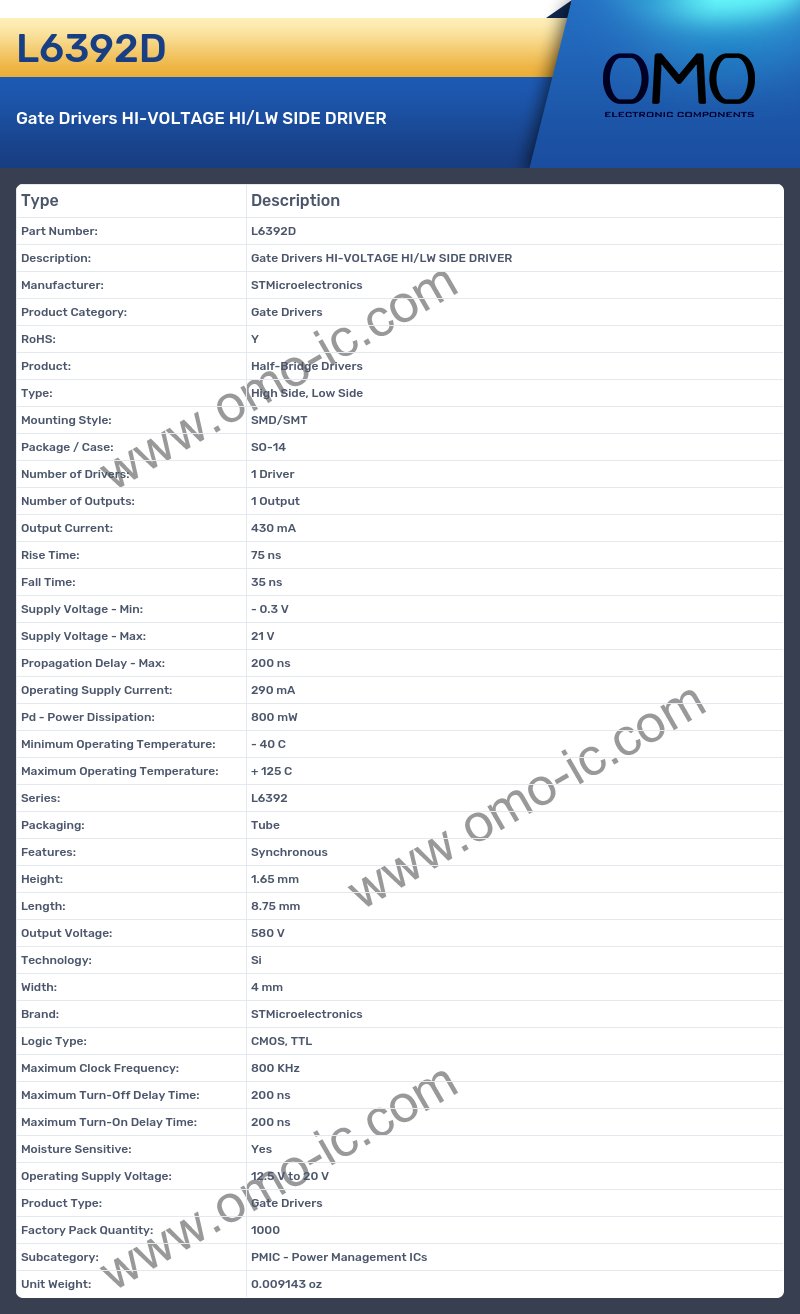

L6392D Image

L6392D Specifications

• Manufacturer: STMicroelectronics
• Product Category: Gate Drivers
• RoHS: Y
• Product: Half-Bridge Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SO-14
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 430 mA
• Rise Time: 75 ns
• Fall Time: 35 ns
• Supply Voltage - Min: - 0.3 V
• Supply Voltage - Max: 21 V
• Propagation Delay - Max: 200 ns
• Operating Supply Current: 290 mA
• Pd - Power Dissipation: 800 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: L6392
• Packaging: Tube
• Features: Synchronous
• Height: 1.65 mm
• Length: 8.75 mm
• Output Voltage: 580 V
• Technology: Si
• Width: 4 mm
• Brand: STMicroelectronics
• Logic Type: CMOS, TTL
• Maximum Clock Frequency: 800 KHz
• Maximum Turn-Off Delay Time: 200 ns
• Maximum Turn-On Delay Time: 200 ns
• Moisture Sensitive: Yes
• Operating Supply Voltage: 12.5 V to 20 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.009143 oz
