LM239N Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. The comparator type of this product is Differential for versatile use. This product is equipped with 4 Channel for efficient performance. The output type is Rail-to-Rail. This product has an 250 nA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 2 V 300 ns response time The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 19.3 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Differential Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 1. The maximum dual supply voltage is +/- 15 V. 1 V minimum dual supply voltage 2 V to 30 V operating supply voltage range 1050 mW Analog Comparators product type 25 of 100 Amplifier ICs as subcategory 1. 0.032734 oz of Unit Weight

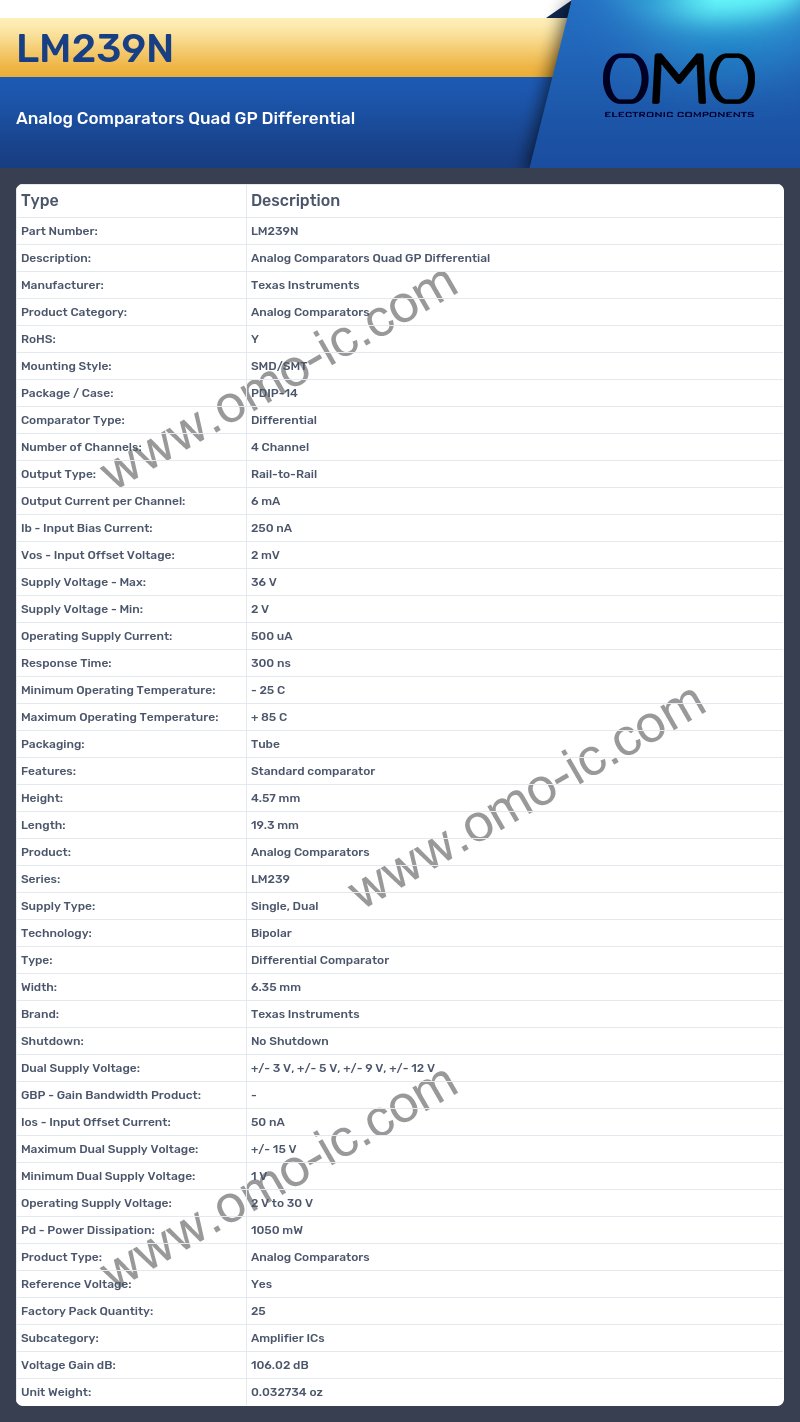

LM239N Image

LM239N Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Comparator Type: Differential
• Number of Channels: 4 Channel
• Output Type: Rail-to-Rail
• Output Current per Channel: 6 mA
• Ib - Input Bias Current: 250 nA
• Vos - Input Offset Voltage: 2 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 2 V
• Operating Supply Current: 500 uA
• Response Time: 300 ns
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Standard comparator
• Height: 4.57 mm
• Length: 19.3 mm
• Product: Analog Comparators
• Series: LM239
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Differential Comparator
• Width: 6.35 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• GBP - Gain Bandwidth Product: -
• Ios - Input Offset Current: 50 nA
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: 1 V
• Operating Supply Voltage: 2 V to 30 V
• Pd - Power Dissipation: 1050 mW
• Product Type: Analog Comparators
• Reference Voltage: Yes
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Voltage Gain dB: 106.02 dB
• Unit Weight: 0.032734 oz
