LP211D

LP211D Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. The comparator type of this product is Differential for versatile use. This product is equipped with 1 Channel for efficient performance. The output type is Open Collector and Emitter. This product has an 100 nA of 5 uA for precise signal processing. Supply Voltage - Max: 30 V Supply Voltage - Min: 3.5 V 1.2 us response time The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 4.9 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Differential Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 1. The maximum dual supply voltage is +/- 15 V. 1.75 V minimum dual supply voltage 3.5 V to 30 V operating supply voltage range Analog Comparators product type 75 of 100 Amplifier ICs as subcategory 1. 0.002561 oz of Unit Weight

LP211D Image

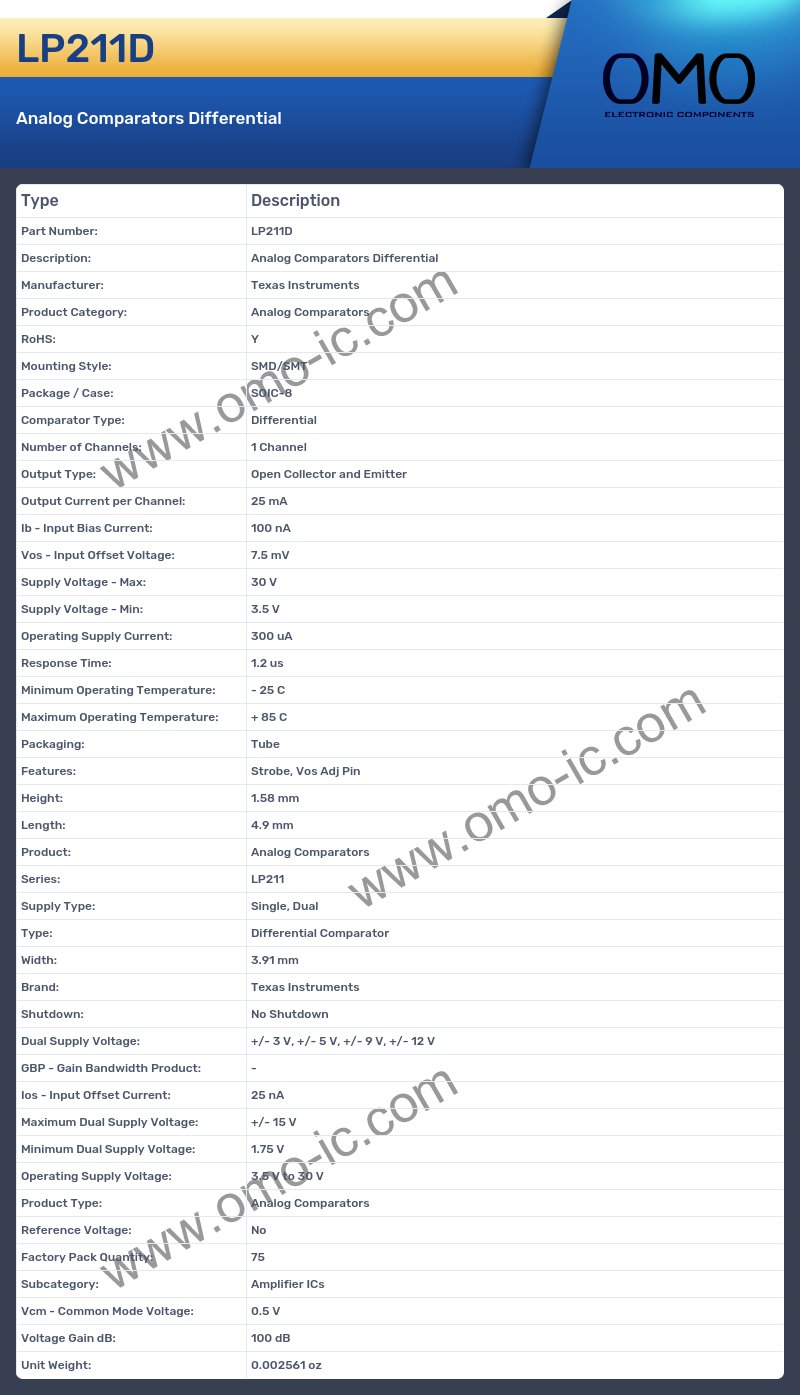

LP211D Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Comparator Type: Differential
• Number of Channels: 1 Channel
• Output Type: Open Collector and Emitter
• Output Current per Channel: 25 mA
• Ib - Input Bias Current: 100 nA
• Vos - Input Offset Voltage: 7.5 mV
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 3.5 V
• Operating Supply Current: 300 uA
• Response Time: 1.2 us
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Strobe, Vos Adj Pin
• Height: 1.58 mm
• Length: 4.9 mm
• Product: Analog Comparators
• Series: LP211
• Supply Type: Single, Dual
• Type: Differential Comparator
• Width: 3.91 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• GBP - Gain Bandwidth Product: -
• Ios - Input Offset Current: 25 nA
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: 1.75 V
• Operating Supply Voltage: 3.5 V to 30 V
• Product Type: Analog Comparators
• Reference Voltage: No
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: 0.5 V
• Voltage Gain dB: 100 dB
• Unit Weight: 0.002561 oz
