LPC804M101JDH20J

LPC804M101JDH20J Overview

This product is manufactured by NXP. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. This product's ARM Cortex M0 is an ARM Cortex M3. This product has a Data Bus Width of 32 bit. The Maximum Clock Frequency of this product is 15 MHz. The Program Memory Size of this product is 32 kB. The Data RAM Size of this product is 4 kB. The ADC Resolution of this product is 10 bit, 12 bit. 1.71 V to 3.6 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Reel packaging for easy dispensing MCU The Flash of this product is Flash. NXP Semiconductors is a trusted brand for quality electronics The SRAM. The Data ROM Size is 32 kB. Flash is the data ROM type. Interface Type: I2C, SPI, USART LPCXresso804 is a versatile development platform for hardware and software The product has 12 Channel ADC channels. ARM Microcontrollers - MCU product type 2500 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 3.6 V Supply Voltage - Min: 1.71 V This product is also known by the 935346814118 number of 934069005115.

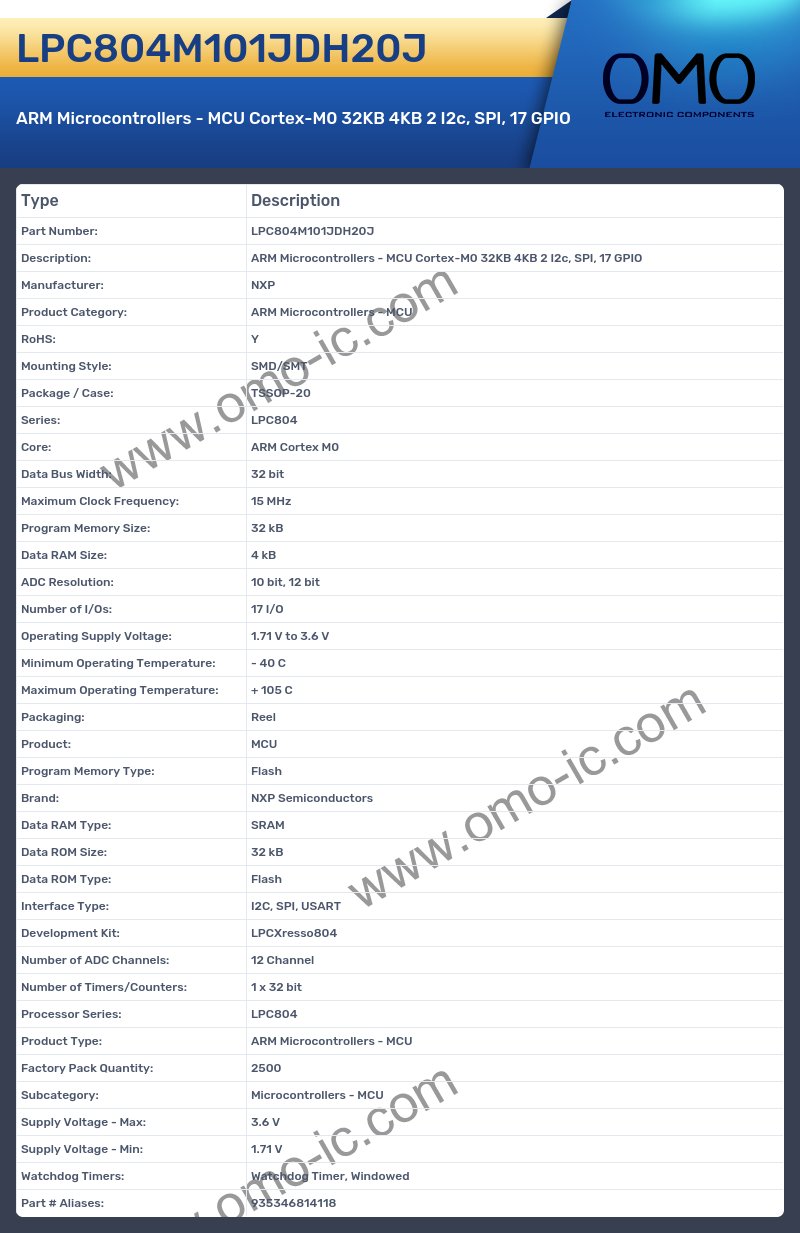

LPC804M101JDH20J Image

LPC804M101JDH20J Specifications

• Manufacturer: NXP
• Product Category: ARM Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Series: LPC804
• Core: ARM Cortex M0
• Data Bus Width: 32 bit
• Maximum Clock Frequency: 15 MHz
• Program Memory Size: 32 kB
• Data RAM Size: 4 kB
• ADC Resolution: 10 bit, 12 bit
• Number of I/Os: 17 I/O
• Operating Supply Voltage: 1.71 V to 3.6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Reel
• Product: MCU
• Program Memory Type: Flash
• Brand: NXP Semiconductors
• Data RAM Type: SRAM
• Data ROM Size: 32 kB
• Data ROM Type: Flash
• Interface Type: I2C, SPI, USART
• Development Kit: LPCXresso804
• Number of ADC Channels: 12 Channel
• Number of Timers/Counters: 1 x 32 bit
• Processor Series: LPC804
• Product Type: ARM Microcontrollers - MCU
• Factory Pack Quantity: 2500
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 1.71 V
• Watchdog Timers: Watchdog Timer, Windowed
• Part # Aliases: 935346814118
