LT1809CS8#PBF Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 82 dB of 50 dB, ensuring reliable signal acquisition. This product has an 1.8 uA of 5 uA for precise signal processing. Supply Voltage - Max: 12.6 V Supply Voltage - Min: 2.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is High Speed. The height of the product is 1 mm. Rail-to-Rail input type The output type is Rail-to-Rail. Operational Amplifiers Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. THD plus Noise value is - 86 dB. Gain ratio is 80 V/mV. The 5 pA/rtHz is 0.7 pA/rtHz. Op Amps - High Speed Operational Amplifiers product type This product has a 87 dB of 50 dB, providing reliable power supply noise rejection. 100 of 100 Amplifier ICs as subcategory 1. 0.003527 oz of Unit Weight

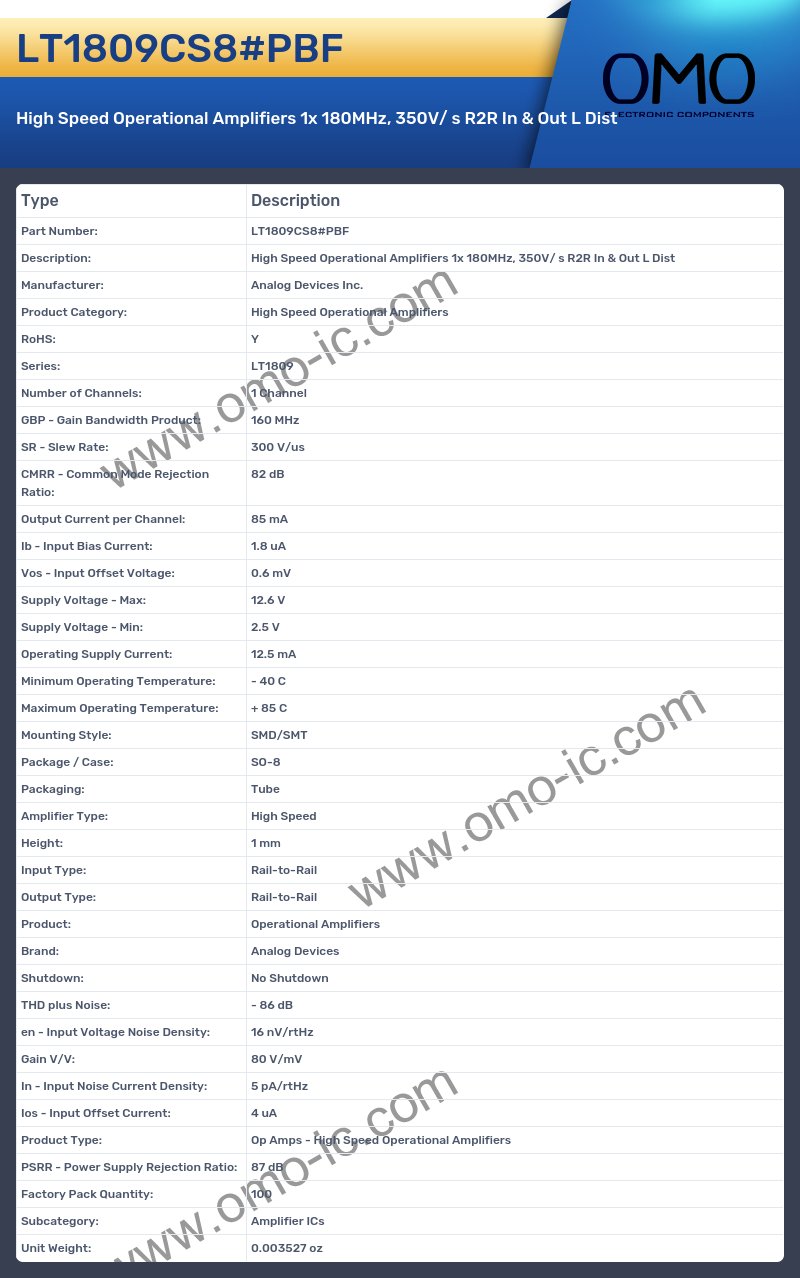

LT1809CS8#PBF Image

LT1809CS8#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: High Speed Operational Amplifiers
• RoHS: Y
• Series: LT1809
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 160 MHz
• SR - Slew Rate: 300 V/us
• CMRR - Common Mode Rejection Ratio: 82 dB
• Output Current per Channel: 85 mA
• Ib - Input Bias Current: 1.8 uA
• Vos - Input Offset Voltage: 0.6 mV
• Supply Voltage - Max: 12.6 V
• Supply Voltage - Min: 2.5 V
• Operating Supply Current: 12.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Packaging: Tube
• Amplifier Type: High Speed
• Height: 1 mm
• Input Type: Rail-to-Rail
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Brand: Analog Devices
• Shutdown: No Shutdown
• THD plus Noise: - 86 dB
• en - Input Voltage Noise Density: 16 nV/rtHz
• Gain V/V: 80 V/mV
• In - Input Noise Current Density: 5 pA/rtHz
• Ios - Input Offset Current: 4 uA
• Product Type: Op Amps - High Speed Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 87 dB
• Factory Pack Quantity: 100
• Subcategory: Amplifier ICs
• Unit Weight: 0.003527 oz
