LTC1746IFW#PBF

LTC1746IFW#PBF Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 25 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.1 mm. This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. DC520B-D is a versatile development platform for hardware and software The 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 1 %/FS is 0.2%. INL is within 1 LSB 390 mW ADCs - Analog to Digital Converters product type 39 of 100 Data Converter ICs as subcategory THD is as low as - 70 dB. 1. 0.006737 oz of Unit Weight

LTC1746IFW#PBF Image

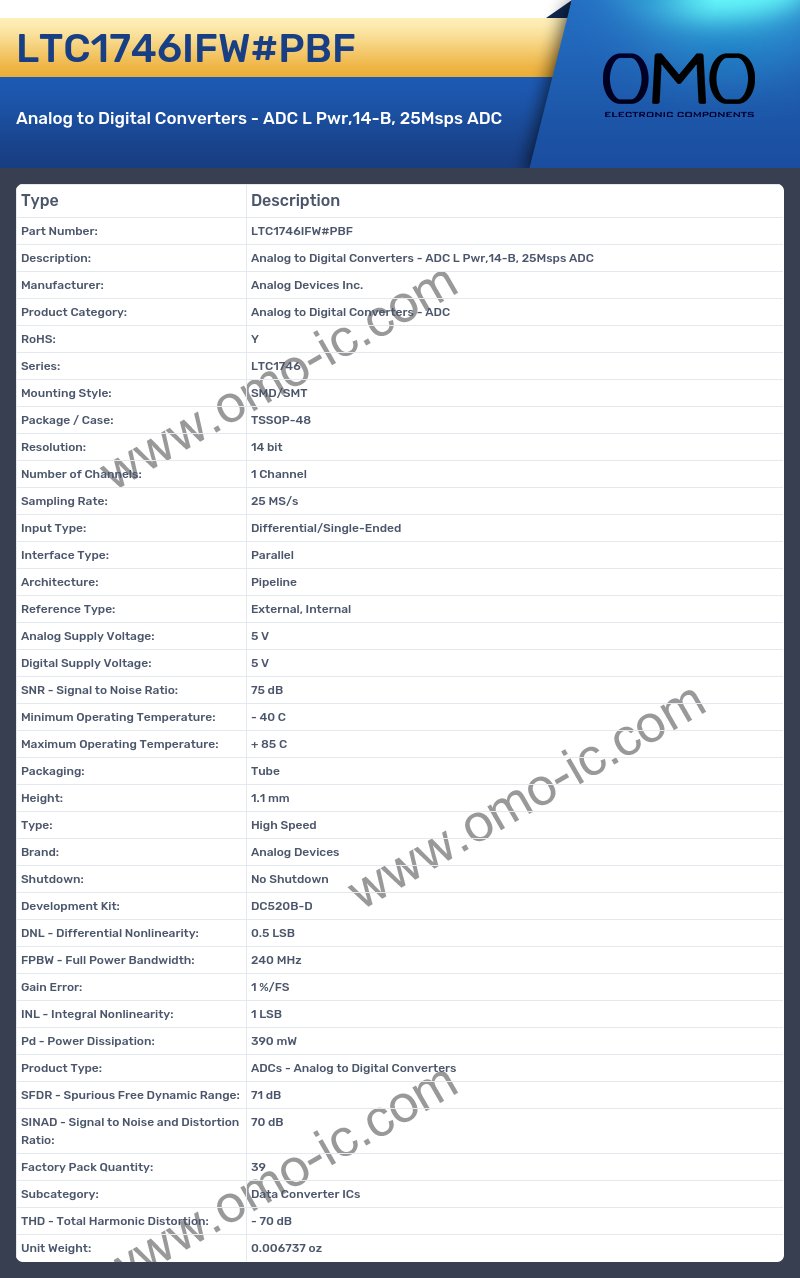

LTC1746IFW#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC1746
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-48
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 25 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 5 V
• SNR - Signal to Noise Ratio: 75 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.1 mm
• Type: High Speed
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: DC520B-D
• DNL - Differential Nonlinearity: 0.5 LSB
• FPBW - Full Power Bandwidth: 240 MHz
• Gain Error: 1 %/FS
• INL - Integral Nonlinearity: 1 LSB
• Pd - Power Dissipation: 390 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 71 dB
• SINAD - Signal to Noise and Distortion Ratio: 70 dB
• Factory Pack Quantity: 39
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 70 dB
• Unit Weight: 0.006737 oz
