MB9AF156NAPMC-G-JNE2 Overview

This product is manufactured by Cypress Semiconductor. The product can operate at a maximum temperature of SMD/SMT. LQFP-100 package/case type is utilized by this product. This product's ARM Cortex M3 is an ARM Cortex M3. This product has a Data Bus Width of 32 bit. The Maximum Clock Frequency of this product is 40 MHz. The Program Memory Size of this product is 544 kB. The Data RAM Size of this product is 64 kB. The ADC Resolution of this product is 12 bit. 1.65 V to 3.6 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing MCU The Flash of this product is Flash. Cypress Semiconductor is a trusted brand for quality electronics The SRAM. The Data ROM Size is 544 kB. ROM is the data ROM type. Interface Type: CSIO, I2C, UART This product requires an 1.65 V to 3.6 V for proper operation. Yes regarding Moisture Sensitivity The product has 24 Channel ADC channels. ARM Microcontrollers - MCU product type 90 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 3.6 V Supply Voltage - Min: 1.65 V

MB9AF156NAPMC-G-JNE2 Image

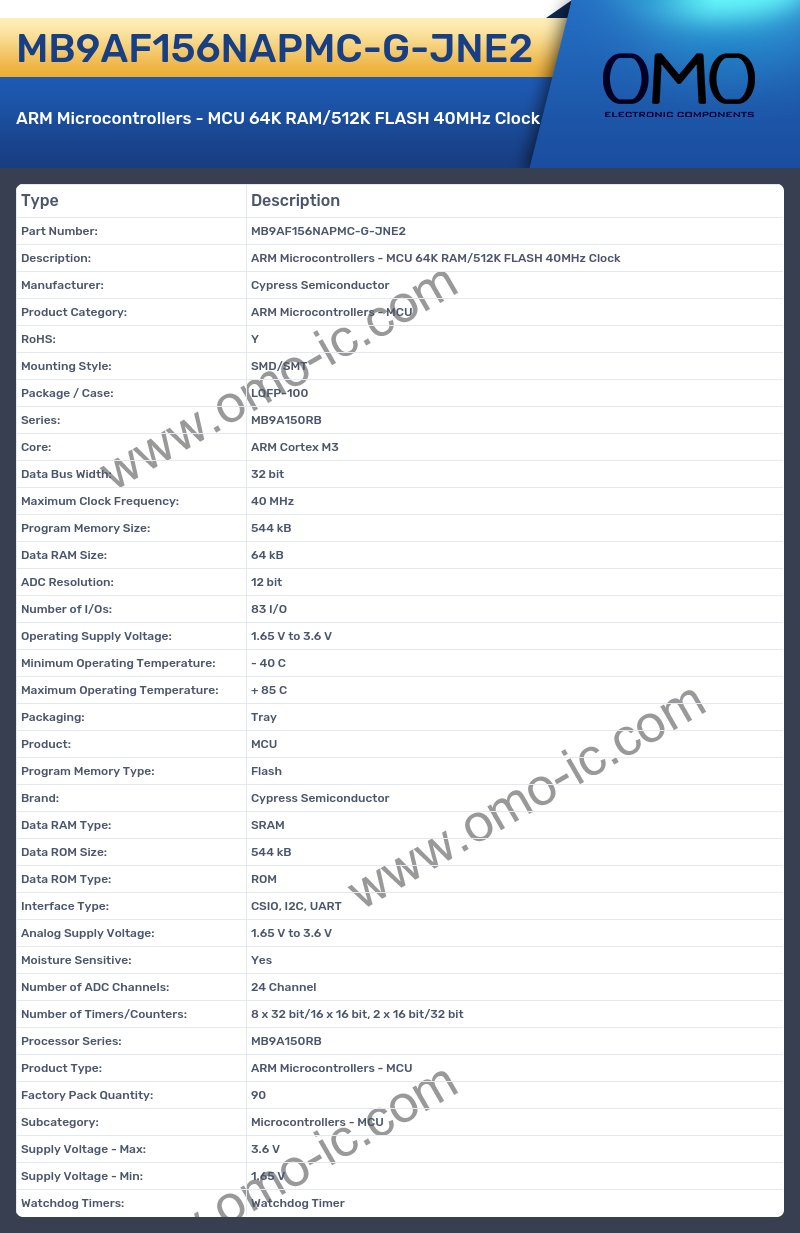

MB9AF156NAPMC-G-JNE2 Specifications

• Manufacturer: Cypress Semiconductor
• Product Category: ARM Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: LQFP-100
• Series: MB9A150RB
• Core: ARM Cortex M3
• Data Bus Width: 32 bit
• Maximum Clock Frequency: 40 MHz
• Program Memory Size: 544 kB
• Data RAM Size: 64 kB
• ADC Resolution: 12 bit
• Number of I/Os: 83 I/O
• Operating Supply Voltage: 1.65 V to 3.6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Product: MCU
• Program Memory Type: Flash
• Brand: Cypress Semiconductor
• Data RAM Type: SRAM
• Data ROM Size: 544 kB
• Data ROM Type: ROM
• Interface Type: CSIO, I2C, UART
• Analog Supply Voltage: 1.65 V to 3.6 V
• Moisture Sensitive: Yes
• Number of ADC Channels: 24 Channel
• Number of Timers/Counters: 8 x 32 bit/16 x 16 bit, 2 x 16 bit/32 bit
• Processor Series: MB9A150RB
• Product Type: ARM Microcontrollers - MCU
• Factory Pack Quantity: 90
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 1.65 V
• Watchdog Timers: Watchdog Timer
