MCP14E5-E/P

MCP14E5-E/P Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 4 A Rise Time is 15 ns. 18 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 18 V 1.1 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Microchip Technology is a trusted brand for quality electronics CMOS, TTL. 4.5 V to 18 V operating supply voltage range Gate Drivers product type 60 of 100 PMIC - Power Management ICs as subcategory 1. 0.032805 oz of Unit Weight

MCP14E5-E/P Image

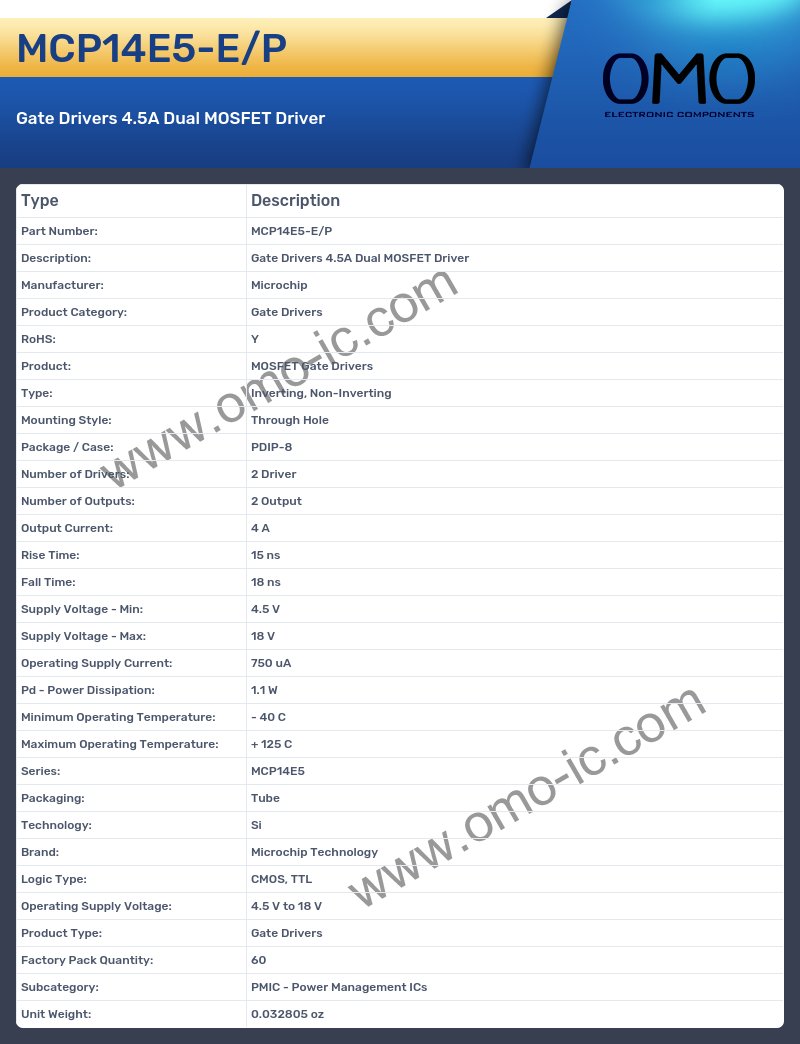

MCP14E5-E/P Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Inverting, Non-Inverting
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 4 A
• Rise Time: 15 ns
• Fall Time: 18 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 750 uA
• Pd - Power Dissipation: 1.1 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: MCP14E5
• Packaging: Tube
• Technology: Si
• Brand: Microchip Technology
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 4.5 V to 18 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 60
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.032805 oz
