MCP14E9-E/SN

MCP14E9-E/SN Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Output current: 3 A Rise Time is 14 ns. 17 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 18 V 699 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Microchip Technology is a trusted brand for quality electronics Yes regarding Moisture Sensitivity Gate Drivers product type 100 of 100 PMIC - Power Management ICs as subcategory 1. 0.019048 oz of Unit Weight

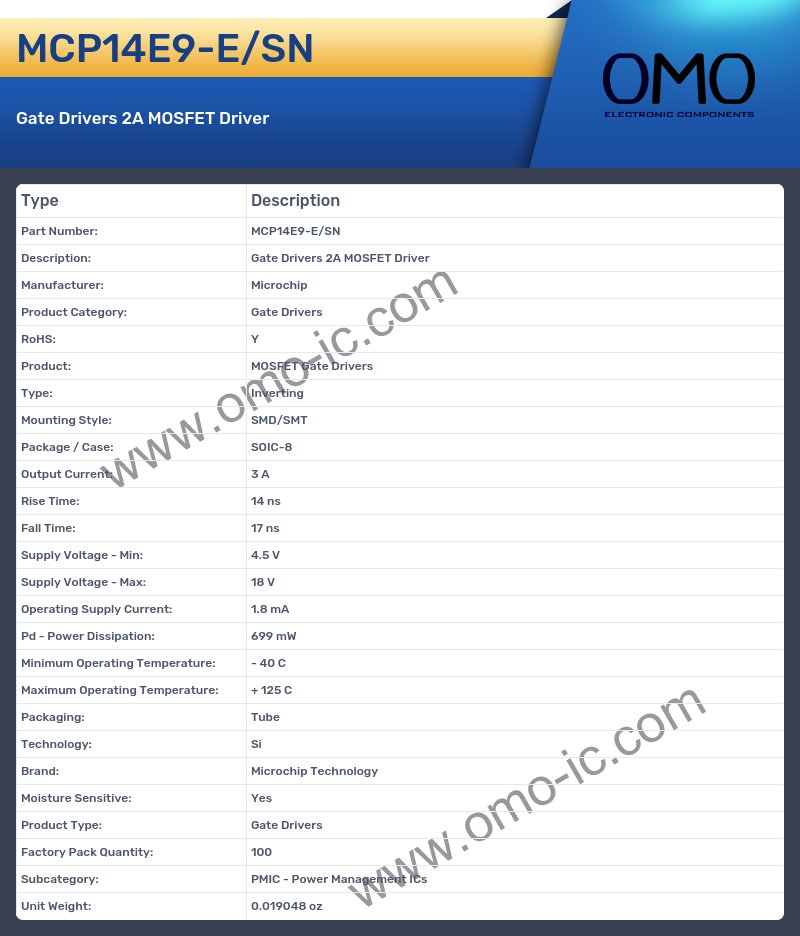

MCP14E9-E/SN Image

MCP14E9-E/SN Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Output Current: 3 A
• Rise Time: 14 ns
• Fall Time: 17 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 1.8 mA
• Pd - Power Dissipation: 699 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Technology: Si
• Brand: Microchip Technology
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 100
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.019048 oz
