PIC16F76-E/SO

PIC16F76-E/SO Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOIC-28 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 8 kB. The Data RAM Size of this product is 368 B. The ADC Resolution of this product is 8 bit. 2 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 2.31 mm. 17.87 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The Data ROM Size is 368 B. Flash is the data ROM type. Interface Type: I2C, SPI, USART Yes regarding Moisture Sensitivity The product has 5 ADC channels. 8-bit Microcontrollers - MCU product type 27 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4 V The product's PIC is Blue Gecko. 1. 0.078125 oz of Unit Weight

PIC16F76-E/SO Image

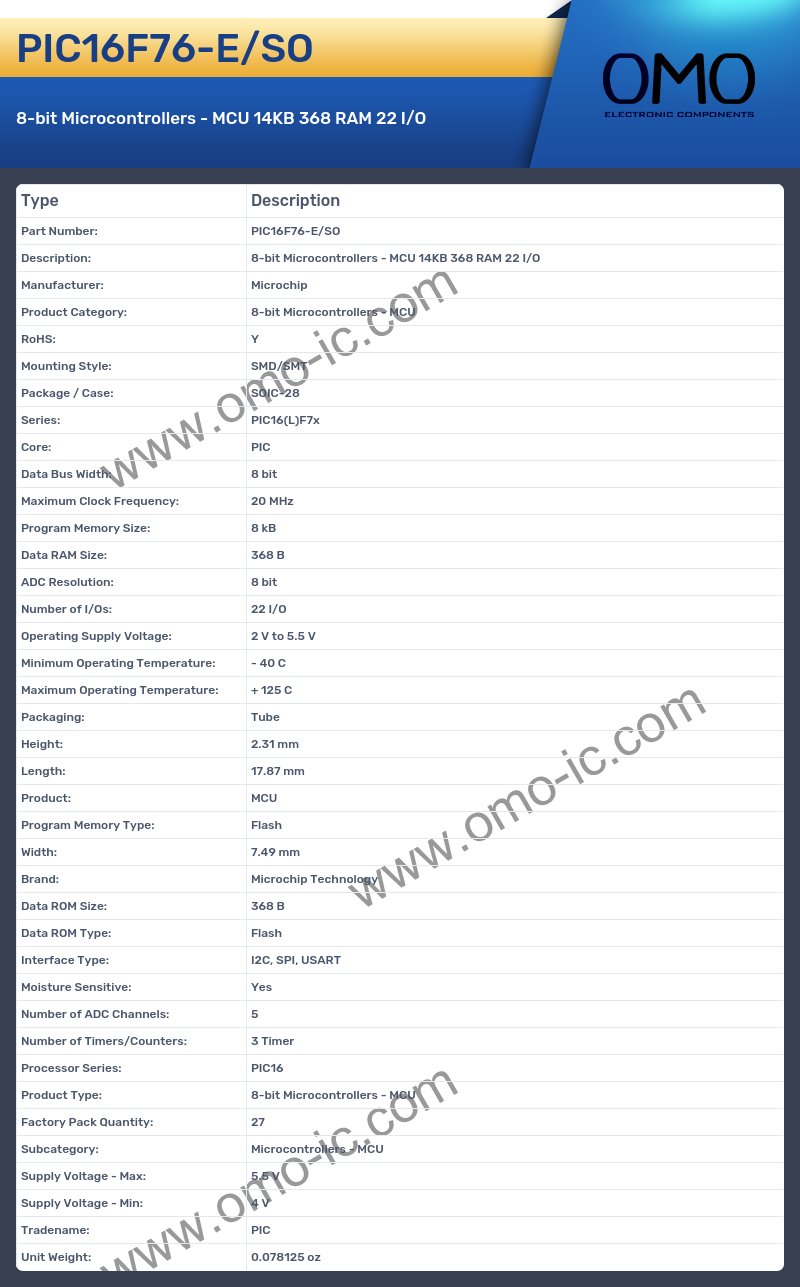

PIC16F76-E/SO Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-28
• Series: PIC16(L)F7x
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 8 kB
• Data RAM Size: 368 B
• ADC Resolution: 8 bit
• Number of I/Os: 22 I/O
• Operating Supply Voltage: 2 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 2.31 mm
• Length: 17.87 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 7.49 mm
• Brand: Microchip Technology
• Data ROM Size: 368 B
• Data ROM Type: Flash
• Interface Type: I2C, SPI, USART
• Moisture Sensitive: Yes
• Number of ADC Channels: 5
• Number of Timers/Counters: 3 Timer
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 27
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4 V
• Tradename: PIC
• Unit Weight: 0.078125 oz
