SN74F30NSR

SN74F30NSR Overview

This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the F logic family. The product boasts a whopping 1 Gate gates for unparalleled processing power. This product has a - 20 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1 mA The propagation delay time is 5.5 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SO-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a NAND The height of the product is 1.95 mm. TTL input type 10.3 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 8-Input NAND. Number of bits: 1 bit 5 V operating supply voltage range Logic Gates product type 2000 of 100 Logic ICs as subcategory 1. 0.007348 oz of Unit Weight

SN74F30NSR Image

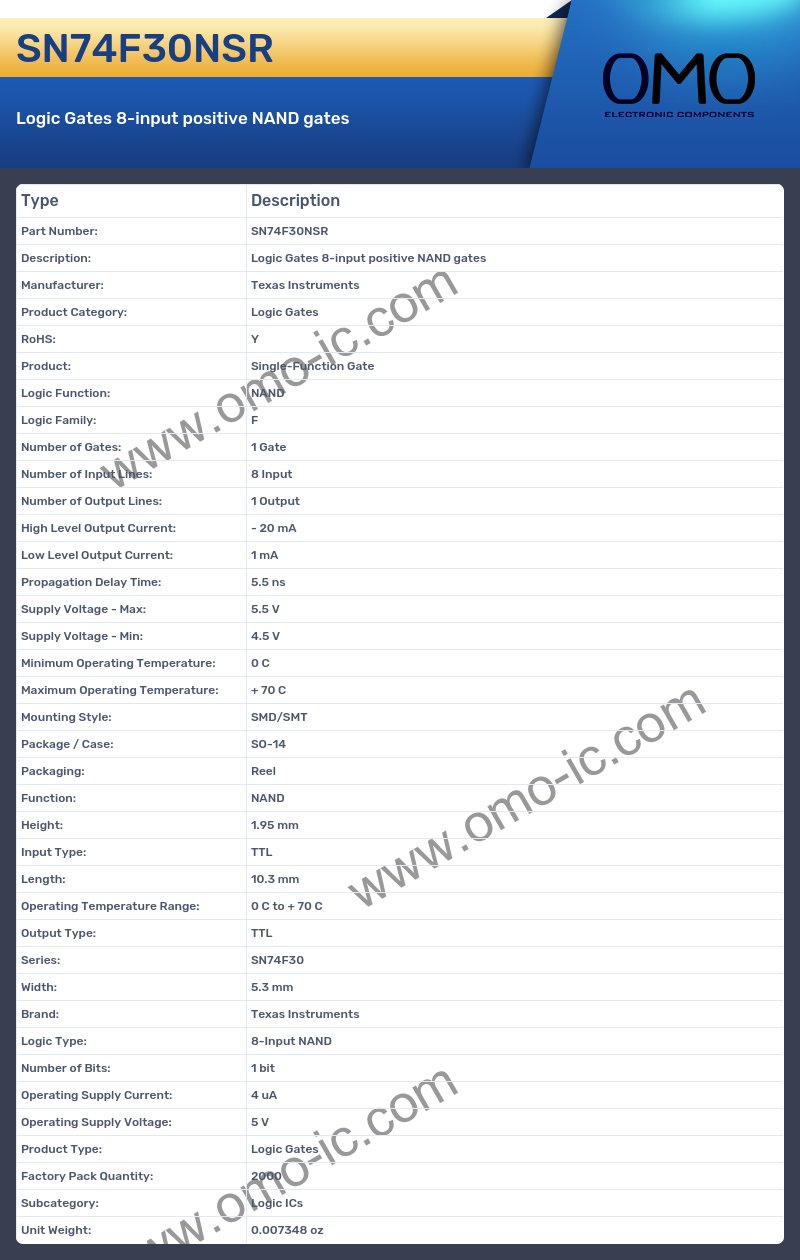

SN74F30NSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: NAND
• Logic Family: F
• Number of Gates: 1 Gate
• Number of Input Lines: 8 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 20 mA
• Low Level Output Current: 1 mA
• Propagation Delay Time: 5.5 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SO-14
• Packaging: Reel
• Function: NAND
• Height: 1.95 mm
• Input Type: TTL
• Length: 10.3 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Type: TTL
• Series: SN74F30
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Type: 8-Input NAND
• Number of Bits: 1 bit
• Operating Supply Current: 4 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.007348 oz
