SN74HC05DBRG4

SN74HC05DBRG4 Overview

This product is manufactured by Texas Instruments. Polarity type: Inverting Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Driver The height of the product is 1.95 mm. 6.2 mm long The output type is Open Drain. Texas Instruments is a trusted brand for quality electronics The product uses the HC logic family. CMOS. This product is equipped with 5 for efficient performance. Maximum supply current: 2 uA This product has a - 0.005 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 5.2 mA 5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 115 ns at 2 V. 1 of 100 Logic ICs as subcategory 1. 0.004296 oz of Unit Weight

SN74HC05DBRG4 Image

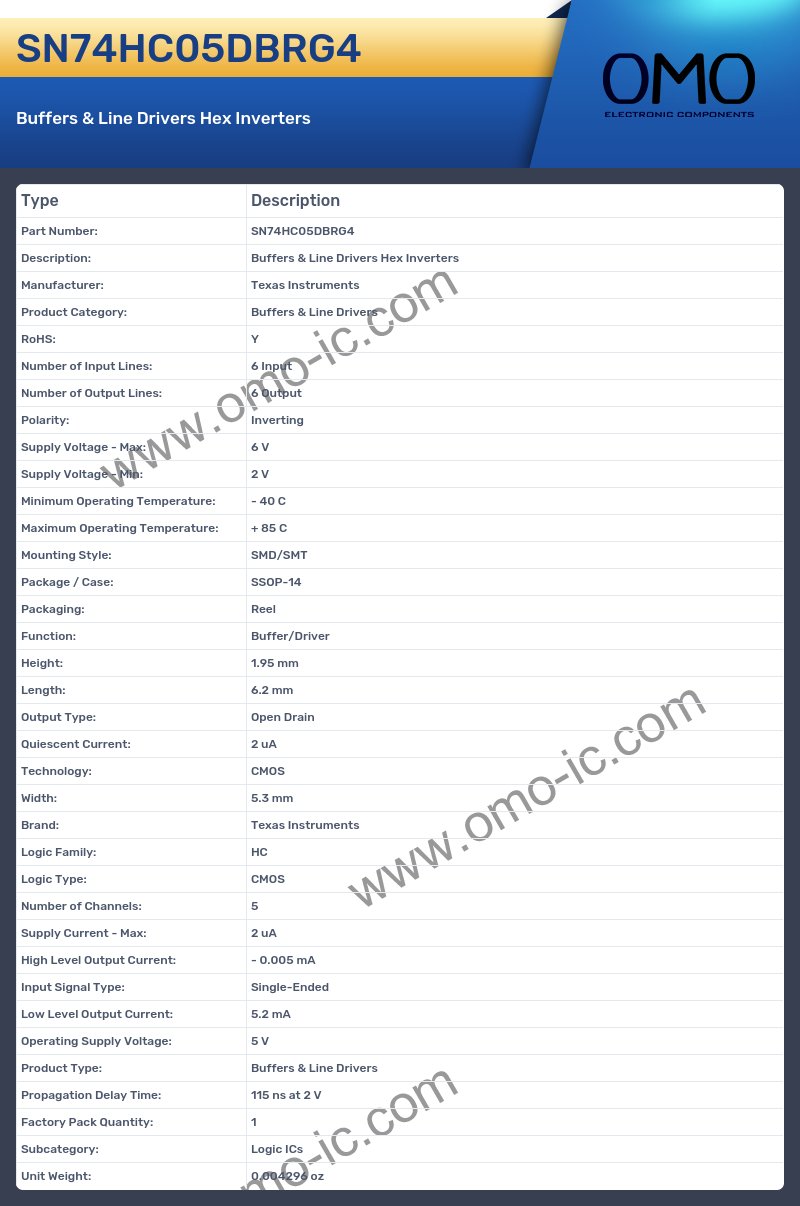

SN74HC05DBRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 6 Input
• Number of Output Lines: 6 Output
• Polarity: Inverting
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-14
• Packaging: Reel
• Function: Buffer/Driver
• Height: 1.95 mm
• Length: 6.2 mm
• Output Type: Open Drain
• Quiescent Current: 2 uA
• Technology: CMOS
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Family: HC
• Logic Type: CMOS
• Number of Channels: 5
• Supply Current - Max: 2 uA
• High Level Output Current: - 0.005 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 5.2 mA
• Operating Supply Voltage: 5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 115 ns at 2 V
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.004296 oz
