SN74LV8151PW

SN74LV8151PW Overview

This product is manufactured by Texas Instruments. Polarity type: Inverting, Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Universal Schmitt Trigger Buffer The height of the product is 1.05 mm (Max). 7.9 mm (Max) long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the LV logic family. CMOS. This product is equipped with 10 for efficient performance. Maximum supply current: 20 uA This product has a - 12 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 12 mA 2 V to 5.5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 28 ns at 2.5 V, 18 ns at 3.3 V, 12 ns at 5 V. 60 of 100 Logic ICs as subcategory 1. 0.003157 oz of Unit Weight

SN74LV8151PW Image

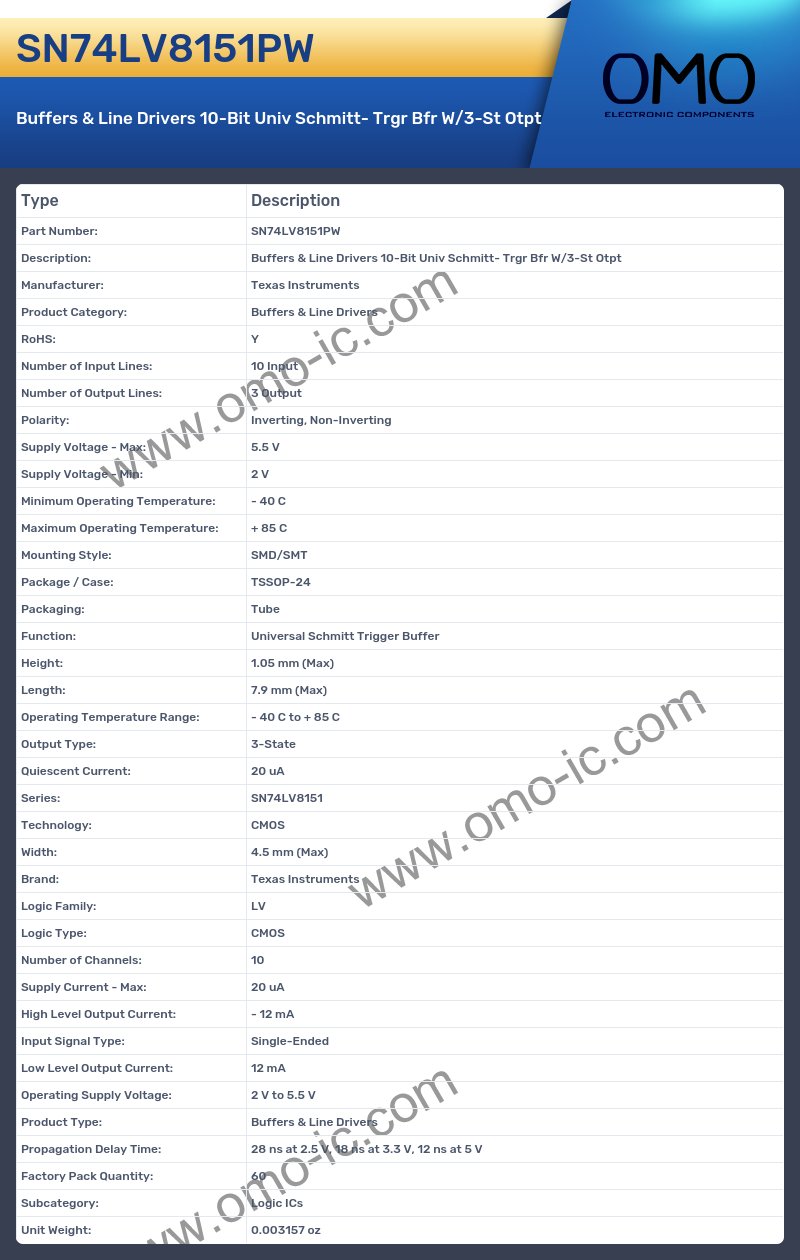

SN74LV8151PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 10 Input
• Number of Output Lines: 3 Output
• Polarity: Inverting, Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Packaging: Tube
• Function: Universal Schmitt Trigger Buffer
• Height: 1.05 mm (Max)
• Length: 7.9 mm (Max)
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: 3-State
• Quiescent Current: 20 uA
• Series: SN74LV8151
• Technology: CMOS
• Width: 4.5 mm (Max)
• Brand: Texas Instruments
• Logic Family: LV
• Logic Type: CMOS
• Number of Channels: 10
• Supply Current - Max: 20 uA
• High Level Output Current: - 12 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 12 mA
• Operating Supply Voltage: 2 V to 5.5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 28 ns at 2.5 V, 18 ns at 3.3 V, 12 ns at 5 V
• Factory Pack Quantity: 60
• Subcategory: Logic ICs
• Unit Weight: 0.003157 oz
