SN74LVC138APWR

SN74LVC138APWR Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the LVC logic family. The propagation delay time is 6.7 ns. Supply Voltage - Min: 1.65 V Supply Voltage - Max: 3.6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Decoder and Demux The height of the product is 1.15 mm. 5 mm long This product has Triple circuit. Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. Maximum supply current: 0.01 mA This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The Maximum Clock Frequency of this product is 100 MHz. 1.65 V to 3.6 V operating supply voltage range 200 mW Encoders, Decoders, Multiplexers & Demultiplexers product type 2000 of 100 Logic ICs as subcategory 1. 0.002187 oz of Unit Weight

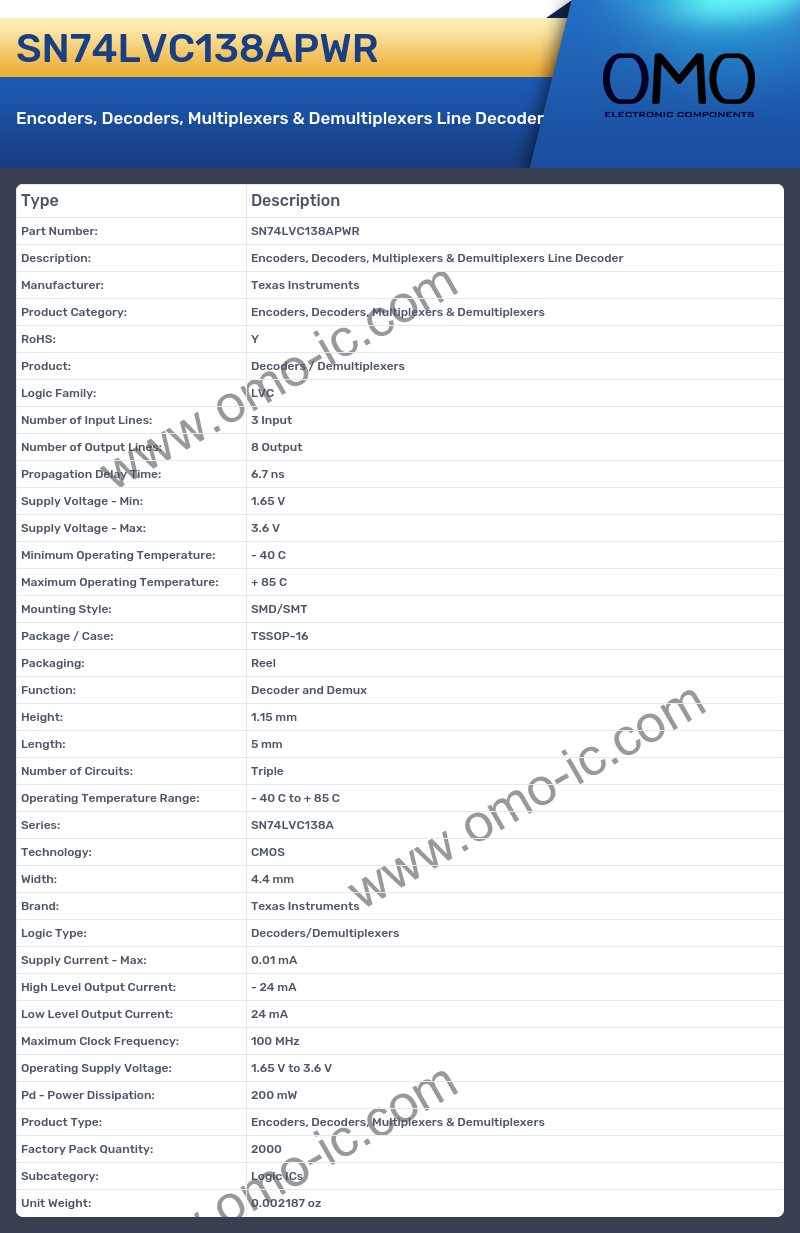

SN74LVC138APWR Image

SN74LVC138APWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: LVC
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 6.7 ns
• Supply Voltage - Min: 1.65 V
• Supply Voltage - Max: 3.6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Reel
• Function: Decoder and Demux
• Height: 1.15 mm
• Length: 5 mm
• Number of Circuits: Triple
• Operating Temperature Range: - 40 C to + 85 C
• Series: SN74LVC138A
• Technology: CMOS
• Width: 4.4 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• Supply Current - Max: 0.01 mA
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Maximum Clock Frequency: 100 MHz
• Operating Supply Voltage: 1.65 V to 3.6 V
• Pd - Power Dissipation: 200 mW
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.002187 oz
