SSM3302ACPZ Overview

This product is manufactured by Analog Devices Inc.. Audio Amplifiers Product Class is Class-D Output power: 10 W The product can operate at a maximum temperature of SMD/SMT. This device belongs to the 1-Channel Mono type. LFCSP-40 package/case type is utilized by this product. Load impedance of 4 Ohms is supported. THD plus Noise value is 0.01 %. Supply Voltage - Max: 18 V Supply Voltage - Min: 7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 0.75 mm. Differential input type 6 mm long Supply Type: Single Analog Devices is a trusted brand for quality electronics 9 dB to 24 dB is 11.5 dB. This product is equipped with 1 Channel for efficient performance. Maximum supply current: 12.2 mA This product has a 43 dB of 50 dB, ensuring reliable signal acquisition. EVAL-SSM3302Z is a versatile development platform for hardware and software Yes regarding Moisture Sensitivity 7 V to 18 V operating supply voltage range Output signal type is Differential Audio Amplifiers product type This product has a 70 dB, 80 dB of 50 dB, providing reliable power supply noise rejection. 490 of 100 Audio ICs as subcategory 1. 0.003206 oz of Unit Weight

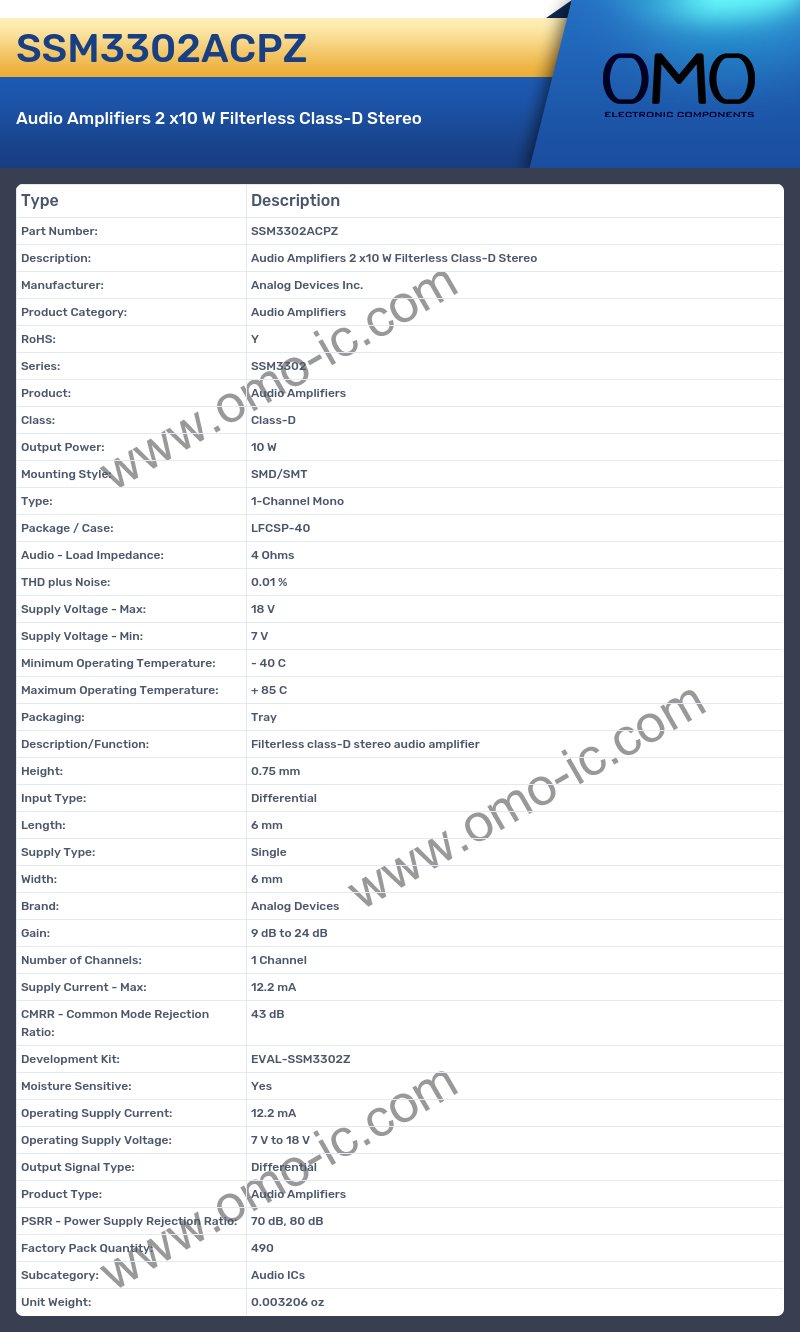

SSM3302ACPZ Image

SSM3302ACPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: SSM3302
• Product: Audio Amplifiers
• Class: Class-D
• Output Power: 10 W
• Mounting Style: SMD/SMT
• Type: 1-Channel Mono
• Package / Case: LFCSP-40
• Audio - Load Impedance: 4 Ohms
• THD plus Noise: 0.01 %
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Description/Function: Filterless class-D stereo audio amplifier
• Height: 0.75 mm
• Input Type: Differential
• Length: 6 mm
• Supply Type: Single
• Width: 6 mm
• Brand: Analog Devices
• Gain: 9 dB to 24 dB
• Number of Channels: 1 Channel
• Supply Current - Max: 12.2 mA
• CMRR - Common Mode Rejection Ratio: 43 dB
• Development Kit: EVAL-SSM3302Z
• Moisture Sensitive: Yes
• Operating Supply Current: 12.2 mA
• Operating Supply Voltage: 7 V to 18 V
• Output Signal Type: Differential
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 70 dB, 80 dB
• Factory Pack Quantity: 490
• Subcategory: Audio ICs
• Unit Weight: 0.003206 oz
