STB45N50DM2AG

STB45N50DM2AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-263-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 500 V 35 A continuous drain current Rds On value of 84 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 250 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's MDmesh is Blue Gecko. Reel packaging for easy dispensing The height of the product is 4.6 mm. 10.4 mm long Power MOSFET This device belongs to the High Voltage type. STMicroelectronics is a trusted brand for quality electronics 9.8 ns fall time MOSFET product type Rise Time is 9.4 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 73.5 ns. The typical turn-on delay time is 20 ns. 1. 0.139332 oz of Unit Weight

STB45N50DM2AG Image

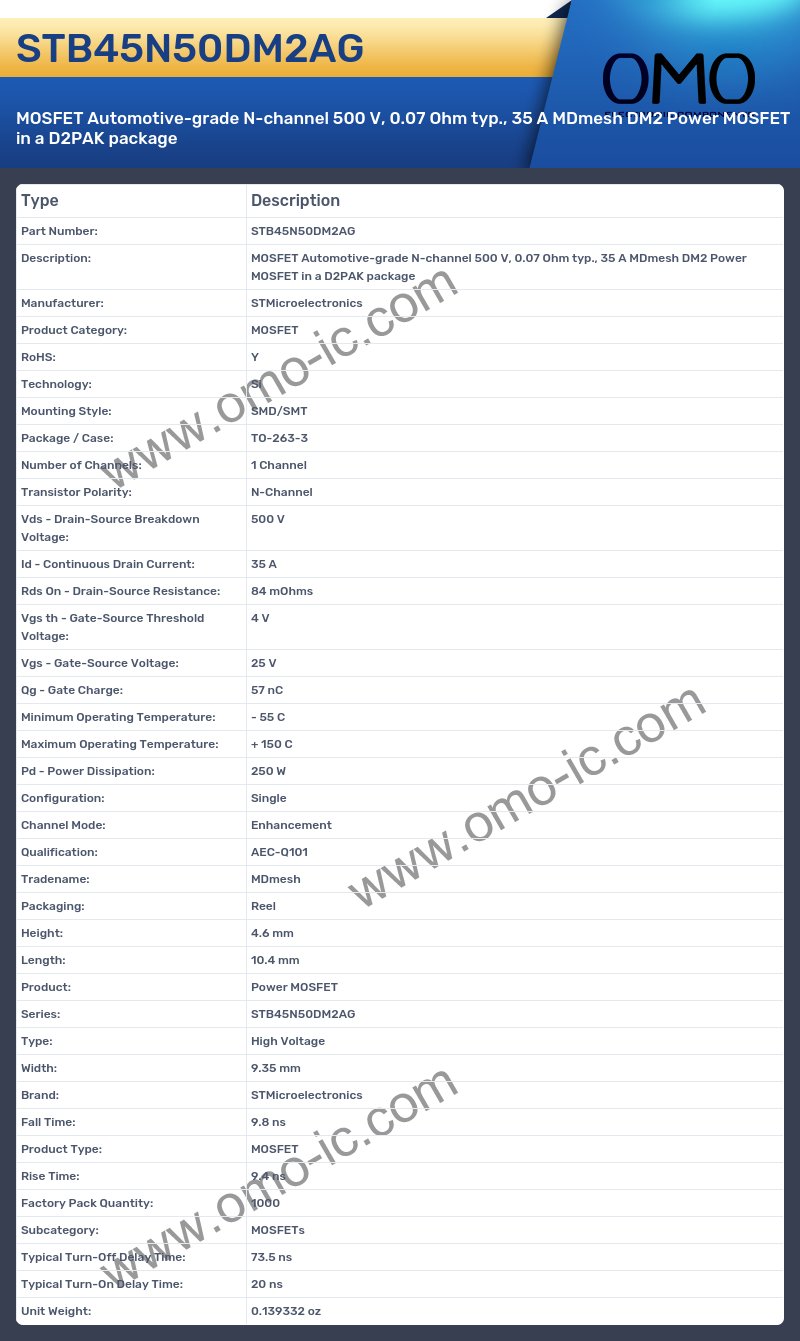

STB45N50DM2AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-263-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 500 V
• Id - Continuous Drain Current: 35 A
• Rds On - Drain-Source Resistance: 84 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 57 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 250 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: MDmesh
• Packaging: Reel
• Height: 4.6 mm
• Length: 10.4 mm
• Product: Power MOSFET
• Series: STB45N50DM2AG
• Type: High Voltage
• Width: 9.35 mm
• Brand: STMicroelectronics
• Fall Time: 9.8 ns
• Product Type: MOSFET
• Rise Time: 9.4 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 73.5 ns
• Typical Turn-On Delay Time: 20 ns
• Unit Weight: 0.139332 oz
