STK800

STK800 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PolarPAK-10 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 20 A continuous drain current Rds On value of 7.8 mOhms Gate-Source Voltage: 16 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 5.2 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 0.8 mm. 6.15 mm long The Transistor Type is 1 N-Channel. This device belongs to the Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 44 S 15 ns fall time MOSFET product type Rise Time is 50 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 45 ns. The typical turn-on delay time is 15 ns.

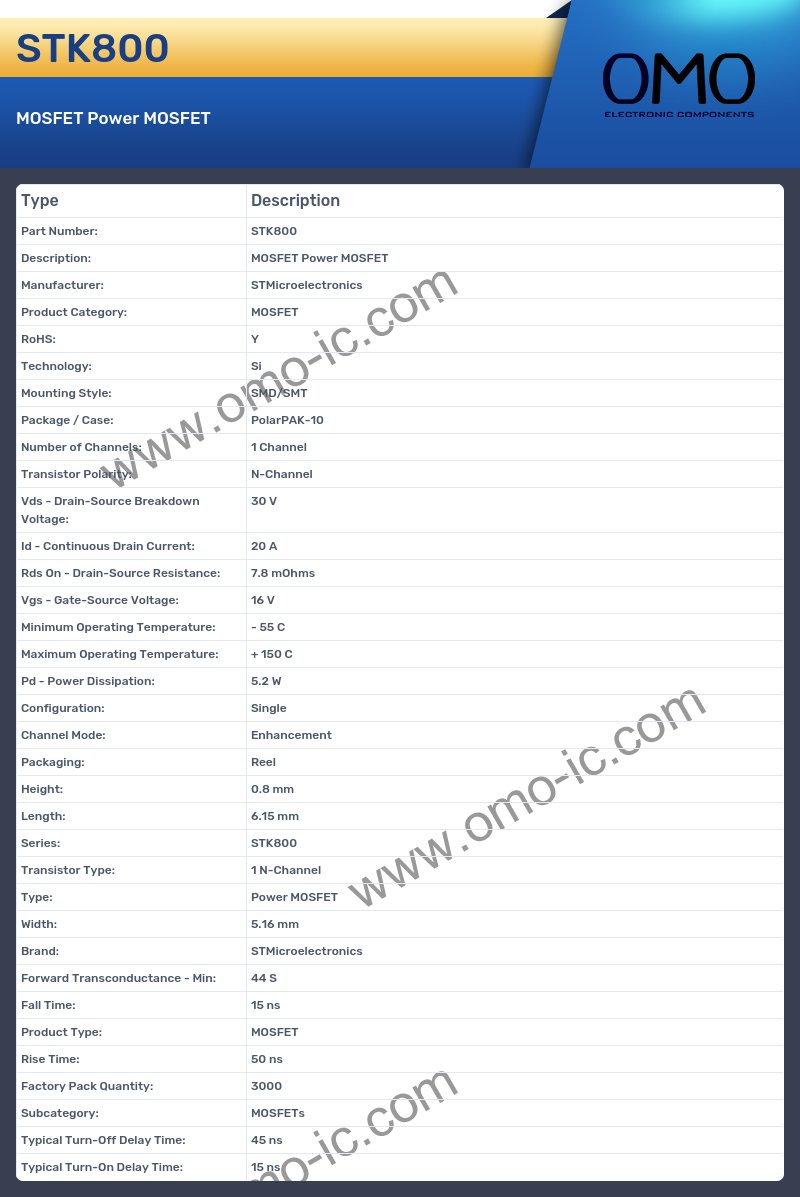

STK800 Image

STK800 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PolarPAK-10
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 20 A
• Rds On - Drain-Source Resistance: 7.8 mOhms
• Vgs - Gate-Source Voltage: 16 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 5.2 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 0.8 mm
• Length: 6.15 mm
• Series: STK800
• Transistor Type: 1 N-Channel
• Type: Power MOSFET
• Width: 5.16 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 44 S
• Fall Time: 15 ns
• Product Type: MOSFET
• Rise Time: 50 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 45 ns
• Typical Turn-On Delay Time: 15 ns
