STL8NH3LL

STL8NH3LL Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-3.3x3.3-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 8 A continuous drain current Rds On value of 12 mOhms Gate-Source Threshold Voltage Range: 1 V Gate-Source Voltage: 18 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 50 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 0.81 mm. 5 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics 8.5 ns fall time MOSFET product type Rise Time is 32 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 18 ns. The typical turn-on delay time is 15 ns.

STL8NH3LL Image

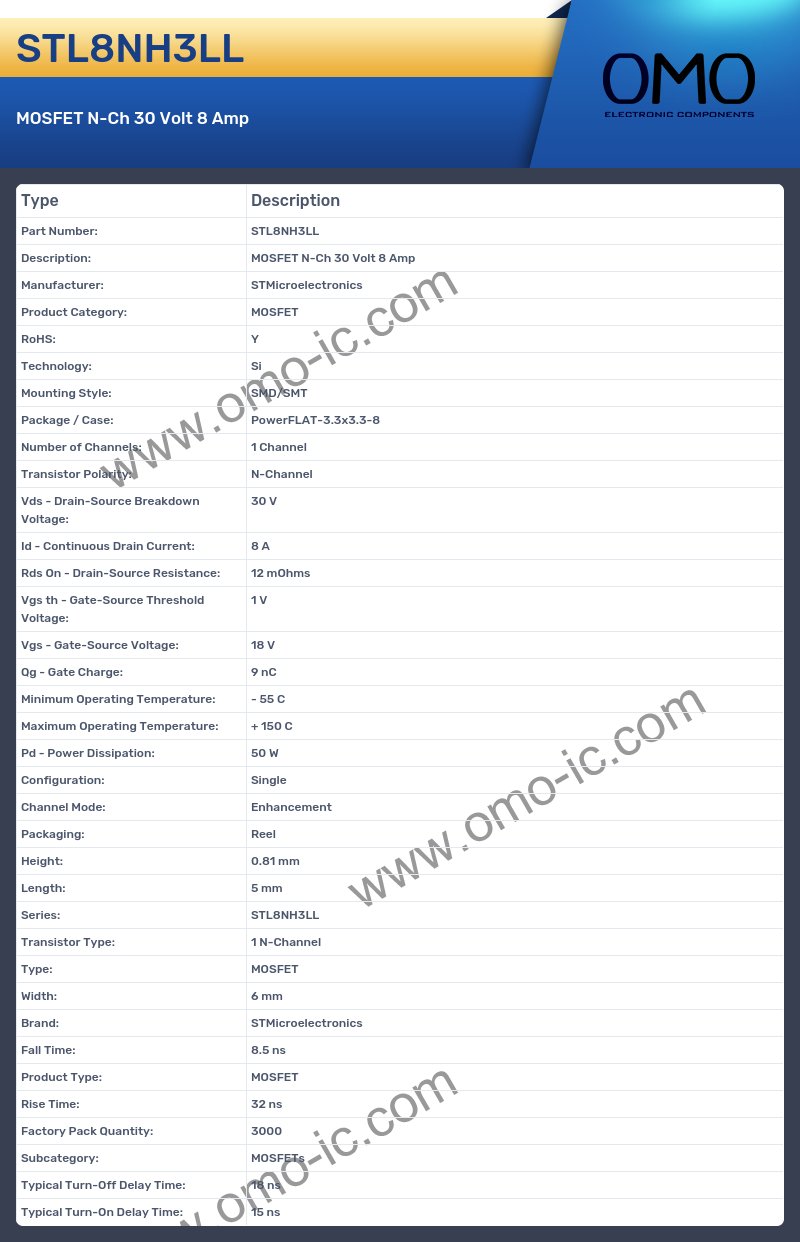

STL8NH3LL Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-3.3x3.3-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 8 A
• Rds On - Drain-Source Resistance: 12 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1 V
• Vgs - Gate-Source Voltage: 18 V
• Qg - Gate Charge: 9 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 50 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 0.81 mm
• Length: 5 mm
• Series: STL8NH3LL
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 6 mm
• Brand: STMicroelectronics
• Fall Time: 8.5 ns
• Product Type: MOSFET
• Rise Time: 32 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 18 ns
• Typical Turn-On Delay Time: 15 ns
