STP45N40DM2AG

STP45N40DM2AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 400 V 38 A continuous drain current Rds On value of 72 mOhms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 250 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's MDmesh is Blue Gecko. The height of the product is 4.6 mm. 15.75 mm long Power MOSFET The Transistor Type is 1 N-Channel Power MOSFET. This device belongs to the High Voltage type. STMicroelectronics is a trusted brand for quality electronics 9.8 ns fall time MOSFET product type Rise Time is 6.7 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 68 ns. The typical turn-on delay time is 20 ns. 1. 0.011640 oz of Unit Weight

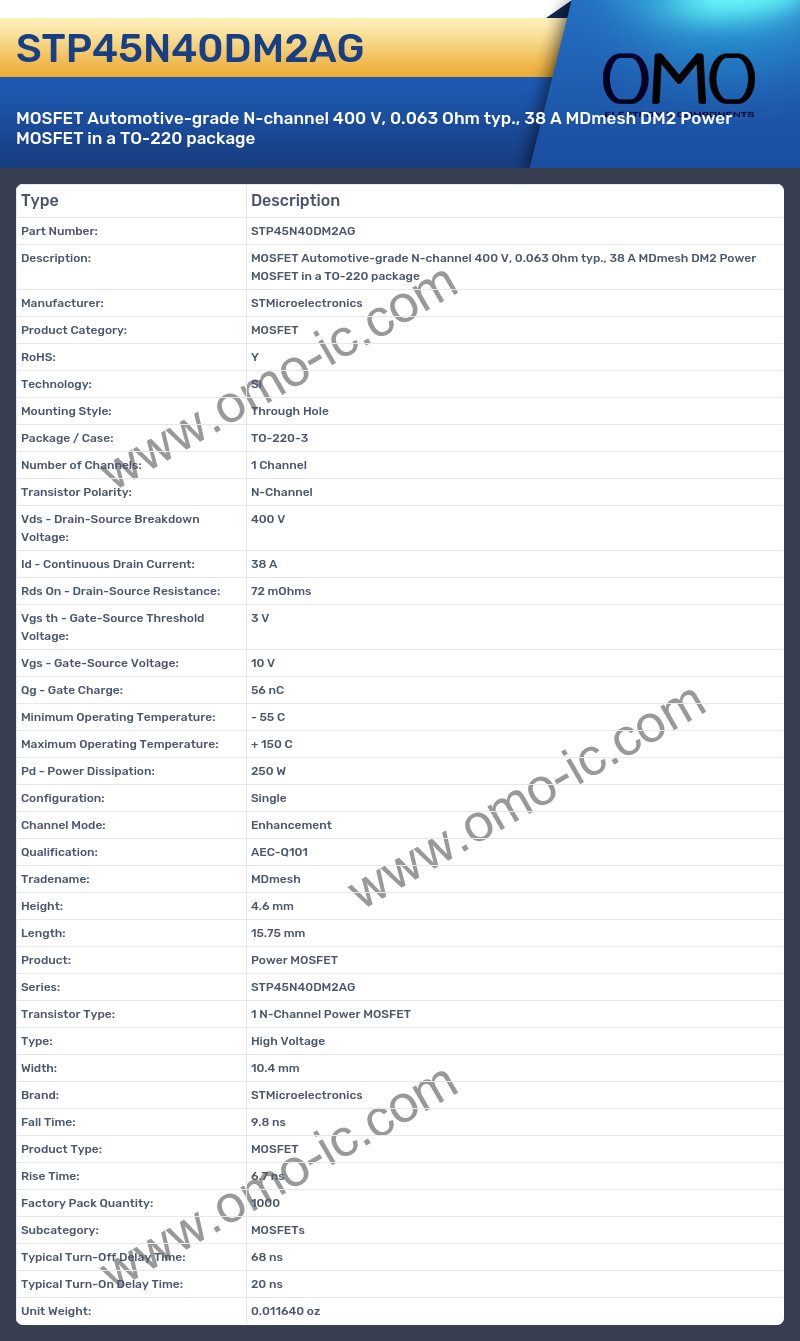

STP45N40DM2AG Image

STP45N40DM2AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 400 V
• Id - Continuous Drain Current: 38 A
• Rds On - Drain-Source Resistance: 72 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 56 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 250 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: MDmesh
• Height: 4.6 mm
• Length: 15.75 mm
• Product: Power MOSFET
• Series: STP45N40DM2AG
• Transistor Type: 1 N-Channel Power MOSFET
• Type: High Voltage
• Width: 10.4 mm
• Brand: STMicroelectronics
• Fall Time: 9.8 ns
• Product Type: MOSFET
• Rise Time: 6.7 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 68 ns
• Typical Turn-On Delay Time: 20 ns
• Unit Weight: 0.011640 oz
