STW58N60DM2AG

STW58N60DM2AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-247-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 50 A continuous drain current Rds On value of 60 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 360 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's MDmesh is Blue Gecko. The height of the product is 5.15 mm. 20.15 mm long Power MOSFET This device belongs to the High Voltage type. STMicroelectronics is a trusted brand for quality electronics 12 ns fall time MOSFET product type Rise Time is 60 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 130 ns. The typical turn-on delay time is 24 ns. 1. 1.340411 oz of Unit Weight

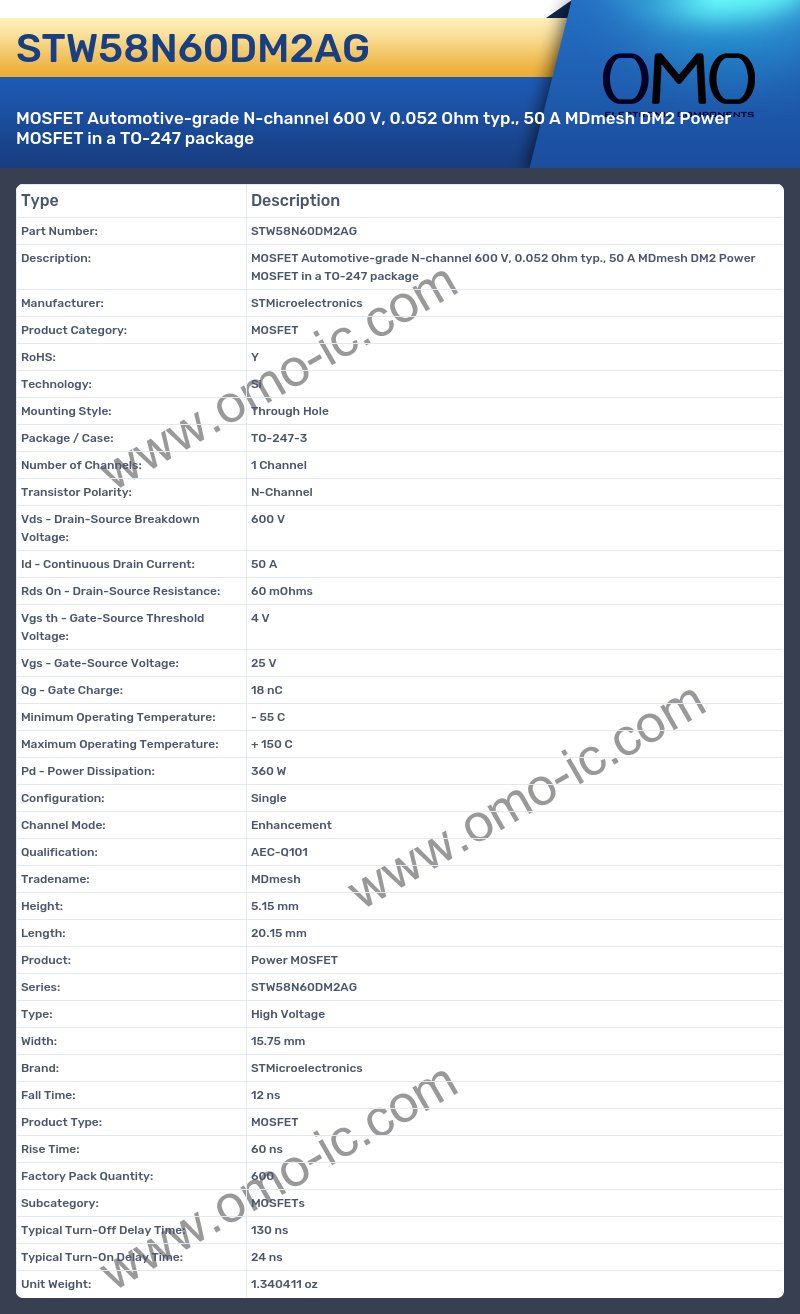

STW58N60DM2AG Image

STW58N60DM2AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-247-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 50 A
• Rds On - Drain-Source Resistance: 60 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 18 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 360 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: MDmesh
• Height: 5.15 mm
• Length: 20.15 mm
• Product: Power MOSFET
• Series: STW58N60DM2AG
• Type: High Voltage
• Width: 15.75 mm
• Brand: STMicroelectronics
• Fall Time: 12 ns
• Product Type: MOSFET
• Rise Time: 60 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 130 ns
• Typical Turn-On Delay Time: 24 ns
• Unit Weight: 1.340411 oz
