TDA2003H

TDA2003H Overview

This product is manufactured by STMicroelectronics. Audio Amplifiers Product Class is Class-AB Output power: 12 W The product can operate at a maximum temperature of Through Hole. This device belongs to the 1-Channel Mono type. Pentawatt package/case type is utilized by this product. Load impedance of 4 Ohms is supported. THD plus Noise value is 0.15 %. Supply Voltage - Max: 18 V Supply Voltage - Min: 8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 150 C. Tube packaging for easy dispensing The height of the product is 9.2 mm. Single input type 10.4 mm long Output current: 4500 mA The output type is 1-Channel Mono. Supply Type: Single STMicroelectronics is a trusted brand for quality electronics 80 dB is 11.5 dB. This product is equipped with 1 Channel for efficient performance. This product has an 4500 mA of 5 uA for precise signal processing. 9 V, 12 V, 15 V operating supply voltage range Output signal type is Single 20000 mW Audio Amplifiers product type This product has a 36 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Audio ICs as subcategory

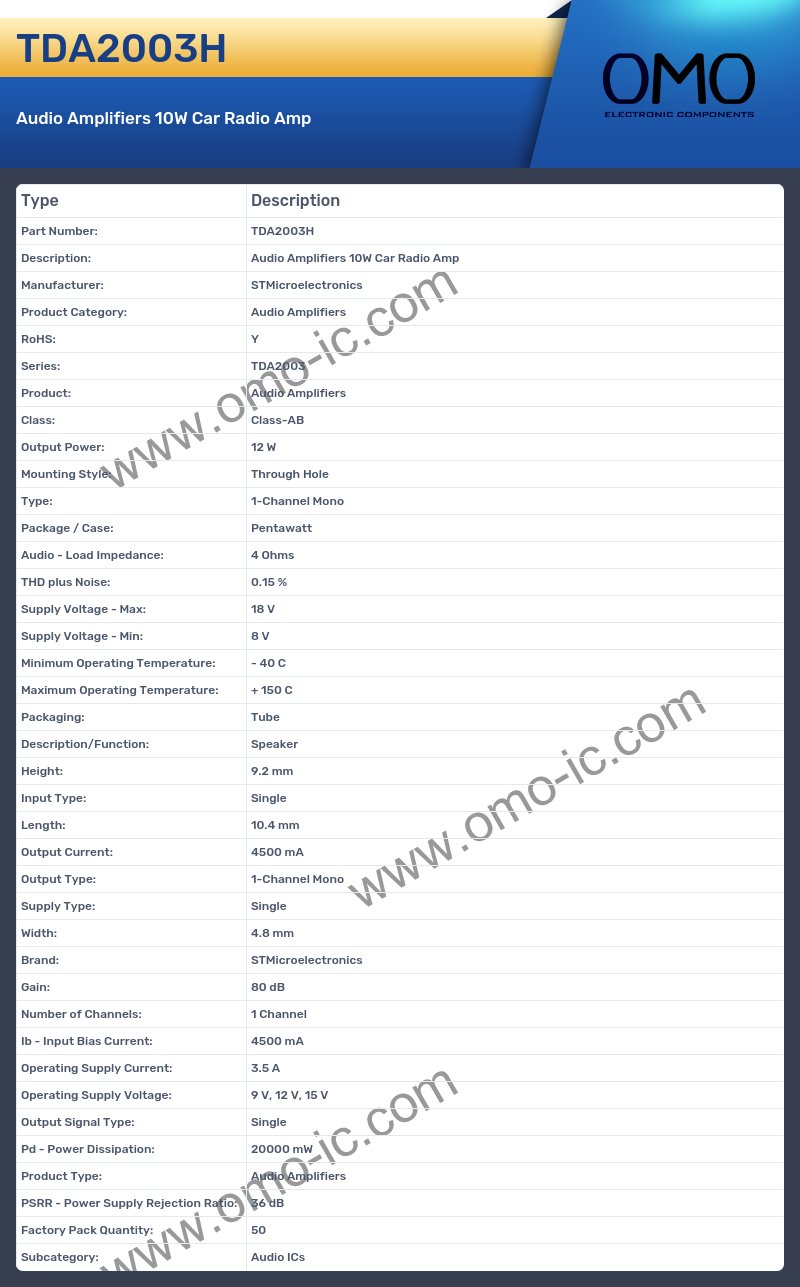

TDA2003H Image

TDA2003H Specifications

• Manufacturer: STMicroelectronics
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: TDA2003
• Product: Audio Amplifiers
• Class: Class-AB
• Output Power: 12 W
• Mounting Style: Through Hole
• Type: 1-Channel Mono
• Package / Case: Pentawatt
• Audio - Load Impedance: 4 Ohms
• THD plus Noise: 0.15 %
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 8 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Packaging: Tube
• Description/Function: Speaker
• Height: 9.2 mm
• Input Type: Single
• Length: 10.4 mm
• Output Current: 4500 mA
• Output Type: 1-Channel Mono
• Supply Type: Single
• Width: 4.8 mm
• Brand: STMicroelectronics
• Gain: 80 dB
• Number of Channels: 1 Channel
• Ib - Input Bias Current: 4500 mA
• Operating Supply Current: 3.5 A
• Operating Supply Voltage: 9 V, 12 V, 15 V
• Output Signal Type: Single
• Pd - Power Dissipation: 20000 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 36 dB
• Factory Pack Quantity: 50
• Subcategory: Audio ICs
