TDA2822

TDA2822 Overview

This product is manufactured by STMicroelectronics. Audio Amplifiers Product Class is Class-AB Output power: 3.2 W The product can operate at a maximum temperature of Through Hole. This device belongs to the 1-Channel Mono or 2-Channel Stereo type. PDIP-16 package/case type is utilized by this product. Load impedance of 8 Ohms is supported. THD plus Noise value is 0.2 %. Supply Voltage - Max: 15 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 150 C. Tube packaging for easy dispensing The height of the product is 4.59 mm. Single input type 20 mm long Output current: 1500 mA The output type is 1-Channel Mono, 2-Channel Stereo. Supply Type: Single STMicroelectronics is a trusted brand for quality electronics 39 dB is 11.5 dB. This product is equipped with 2 Channel for efficient performance. This product has an 0.1 uA of 5 uA for precise signal processing. 5 V, 9 V, 12 V operating supply voltage range Output signal type is Differential, Single 4000 mW Audio Amplifiers product type This product has a 40 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Audio ICs as subcategory 1. 0.057419 oz of Unit Weight

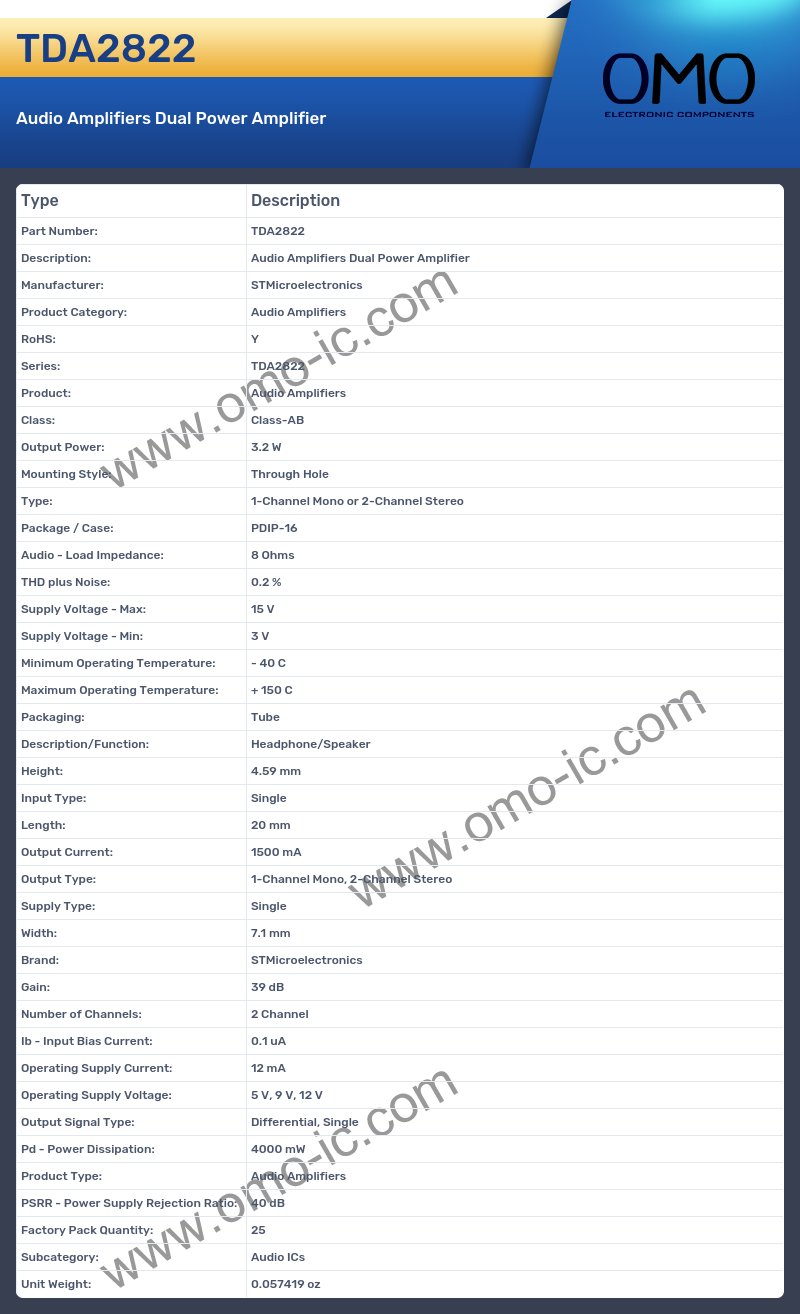

TDA2822 Image

TDA2822 Specifications

• Manufacturer: STMicroelectronics
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: TDA2822
• Product: Audio Amplifiers
• Class: Class-AB
• Output Power: 3.2 W
• Mounting Style: Through Hole
• Type: 1-Channel Mono or 2-Channel Stereo
• Package / Case: PDIP-16
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.2 %
• Supply Voltage - Max: 15 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Packaging: Tube
• Description/Function: Headphone/Speaker
• Height: 4.59 mm
• Input Type: Single
• Length: 20 mm
• Output Current: 1500 mA
• Output Type: 1-Channel Mono, 2-Channel Stereo
• Supply Type: Single
• Width: 7.1 mm
• Brand: STMicroelectronics
• Gain: 39 dB
• Number of Channels: 2 Channel
• Ib - Input Bias Current: 0.1 uA
• Operating Supply Current: 12 mA
• Operating Supply Voltage: 5 V, 9 V, 12 V
• Output Signal Type: Differential, Single
• Pd - Power Dissipation: 4000 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 40 dB
• Factory Pack Quantity: 25
• Subcategory: Audio ICs
• Unit Weight: 0.057419 oz
