THS1206IDA

THS1206IDA Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-32 package/case type is utilized by this product. This product is equipped with 2 Channel/4 Channel for efficient performance. The sampling rate of this product is 6 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.15 mm. 11 mm long Texas Instruments is a trusted brand for quality electronics THS1206M-EVM is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1.5 LSB Yes regarding Moisture Sensitivity 3 V to 5.25 V, 4.75 V to 5.25 V operating supply voltage range 216 mW ADCs - Analog to Digital Converters product type 46 of 100 Data Converter ICs as subcategory 1. 0.006113 oz of Unit Weight

THS1206IDA Image

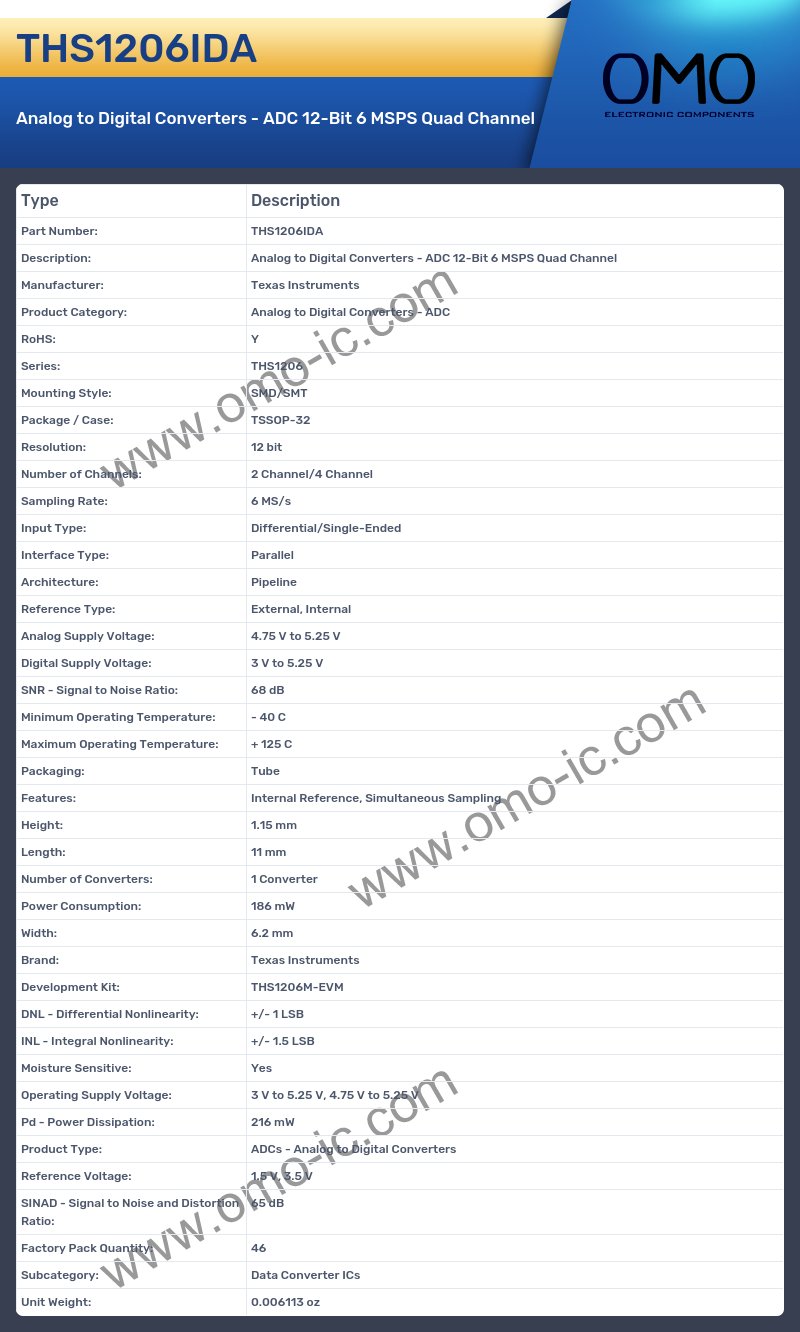

THS1206IDA Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: THS1206
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-32
• Resolution: 12 bit
• Number of Channels: 2 Channel/4 Channel
• Sampling Rate: 6 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 3 V to 5.25 V
• SNR - Signal to Noise Ratio: 68 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: Internal Reference, Simultaneous Sampling
• Height: 1.15 mm
• Length: 11 mm
• Number of Converters: 1 Converter
• Power Consumption: 186 mW
• Width: 6.2 mm
• Brand: Texas Instruments
• Development Kit: THS1206M-EVM
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V to 5.25 V, 4.75 V to 5.25 V
• Pd - Power Dissipation: 216 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 1.5 V, 3.5 V
• SINAD - Signal to Noise and Distortion Ratio: 65 dB
• Factory Pack Quantity: 46
• Subcategory: Data Converter ICs
• Unit Weight: 0.006113 oz
