TLC2201CDR

TLC2201CDR Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 90 dB to 110 dB of 50 dB, ensuring reliable signal acquisition. This product has an 60 pA of 5 uA for precise signal processing. Supply Voltage - Max: 16 V Supply Voltage - Min: 4.6 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Reel packaging for easy dispensing The amplifier type is Low Offset Amplifier. The height of the product is 1.58 mm. Rail-to-Rail input type 4.9 mm long The output type is Rail-to-Rail. Precision Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.0006 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 8 V. +/- 2.3 V minimum dual supply voltage 4.6 V to 16 V, +/- 2.3 V to +/- 8 V operating supply voltage range 725 mW Precision Amplifiers product type 2500 of 100 Amplifier ICs as subcategory The product's LinCMOS is Blue Gecko. 1. 0.002677 oz of Unit Weight

TLC2201CDR Image

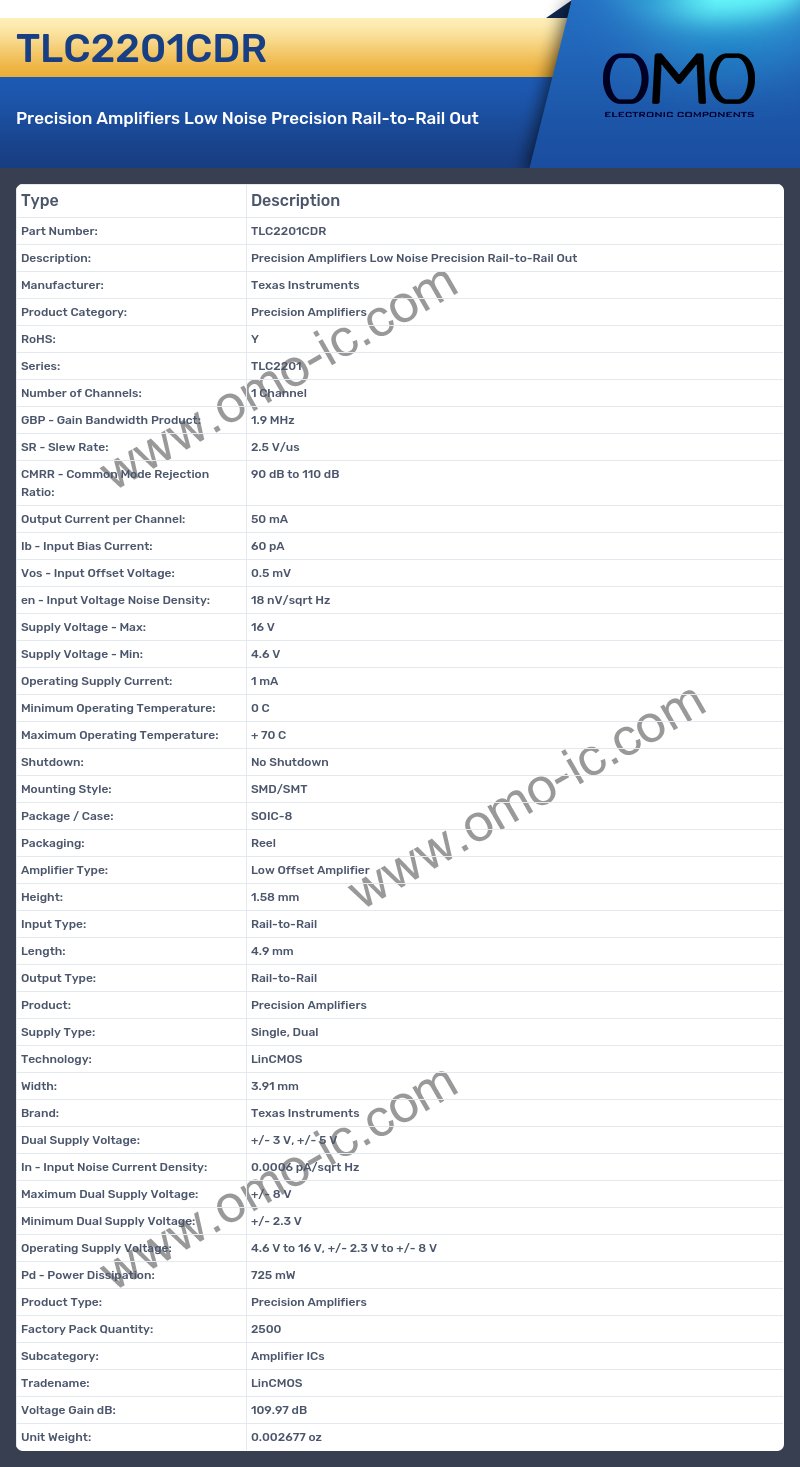

TLC2201CDR Specifications

• Manufacturer: Texas Instruments
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: TLC2201
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 1.9 MHz
• SR - Slew Rate: 2.5 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB to 110 dB
• Output Current per Channel: 50 mA
• Ib - Input Bias Current: 60 pA
• Vos - Input Offset Voltage: 0.5 mV
• en - Input Voltage Noise Density: 18 nV/sqrt Hz
• Supply Voltage - Max: 16 V
• Supply Voltage - Min: 4.6 V
• Operating Supply Current: 1 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Reel
• Amplifier Type: Low Offset Amplifier
• Height: 1.58 mm
• Input Type: Rail-to-Rail
• Length: 4.9 mm
• Output Type: Rail-to-Rail
• Product: Precision Amplifiers
• Supply Type: Single, Dual
• Technology: LinCMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• In - Input Noise Current Density: 0.0006 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 8 V
• Minimum Dual Supply Voltage: +/- 2.3 V
• Operating Supply Voltage: 4.6 V to 16 V, +/- 2.3 V to +/- 8 V
• Pd - Power Dissipation: 725 mW
• Product Type: Precision Amplifiers
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Tradename: LinCMOS
• Voltage Gain dB: 109.97 dB
• Unit Weight: 0.002677 oz
