TLC2274QDR

TLC2274QDR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Supply Voltage - Max: 16 V This product is equipped with 4 Channel for efficient performance. This product has a 70 dB of 50 dB, ensuring reliable signal acquisition. This product has an 60 pA of 5 uA for precise signal processing. Supply Voltage - Min: 4.4 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Reel packaging for easy dispensing The amplifier type is Low Noise Amplifier. The height of the product is 1.58 mm. Rail-to-Rail input type 8.65 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.0006 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 8 V. +/- 2.2 V minimum dual supply voltage 4.4 V to 16 V, +/- 2.2 V to +/- 8 V operating supply voltage range Op Amps - Operational Amplifiers product type 2500 of 100 Amplifier ICs as subcategory 1. 0.004706 oz of Unit Weight

TLC2274QDR Image

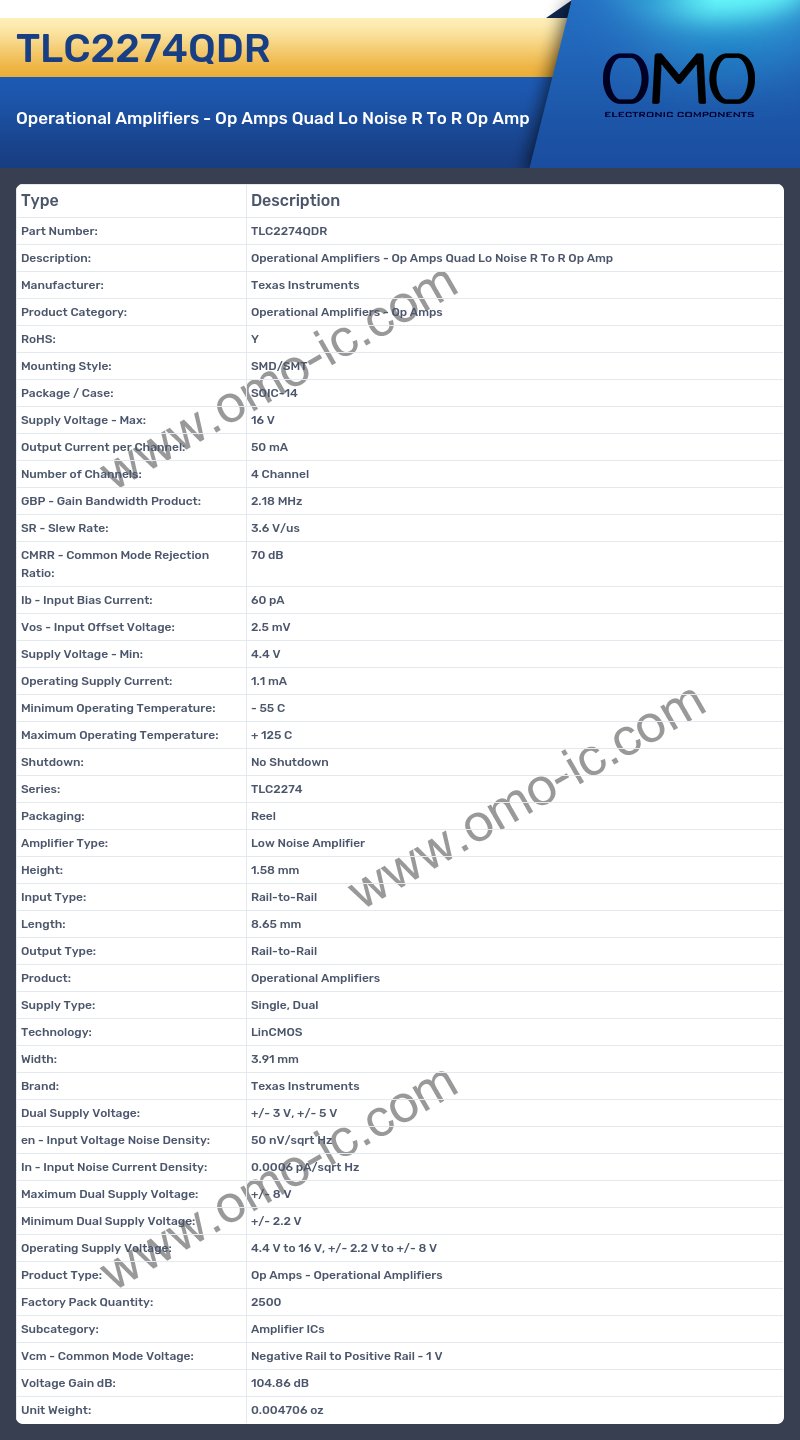

TLC2274QDR Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Supply Voltage - Max: 16 V
• Output Current per Channel: 50 mA
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 2.18 MHz
• SR - Slew Rate: 3.6 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB
• Ib - Input Bias Current: 60 pA
• Vos - Input Offset Voltage: 2.5 mV
• Supply Voltage - Min: 4.4 V
• Operating Supply Current: 1.1 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: TLC2274
• Packaging: Reel
• Amplifier Type: Low Noise Amplifier
• Height: 1.58 mm
• Input Type: Rail-to-Rail
• Length: 8.65 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: LinCMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• en - Input Voltage Noise Density: 50 nV/sqrt Hz
• In - Input Noise Current Density: 0.0006 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 8 V
• Minimum Dual Supply Voltage: +/- 2.2 V
• Operating Supply Voltage: 4.4 V to 16 V, +/- 2.2 V to +/- 8 V
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1 V
• Voltage Gain dB: 104.86 dB
• Unit Weight: 0.004706 oz
